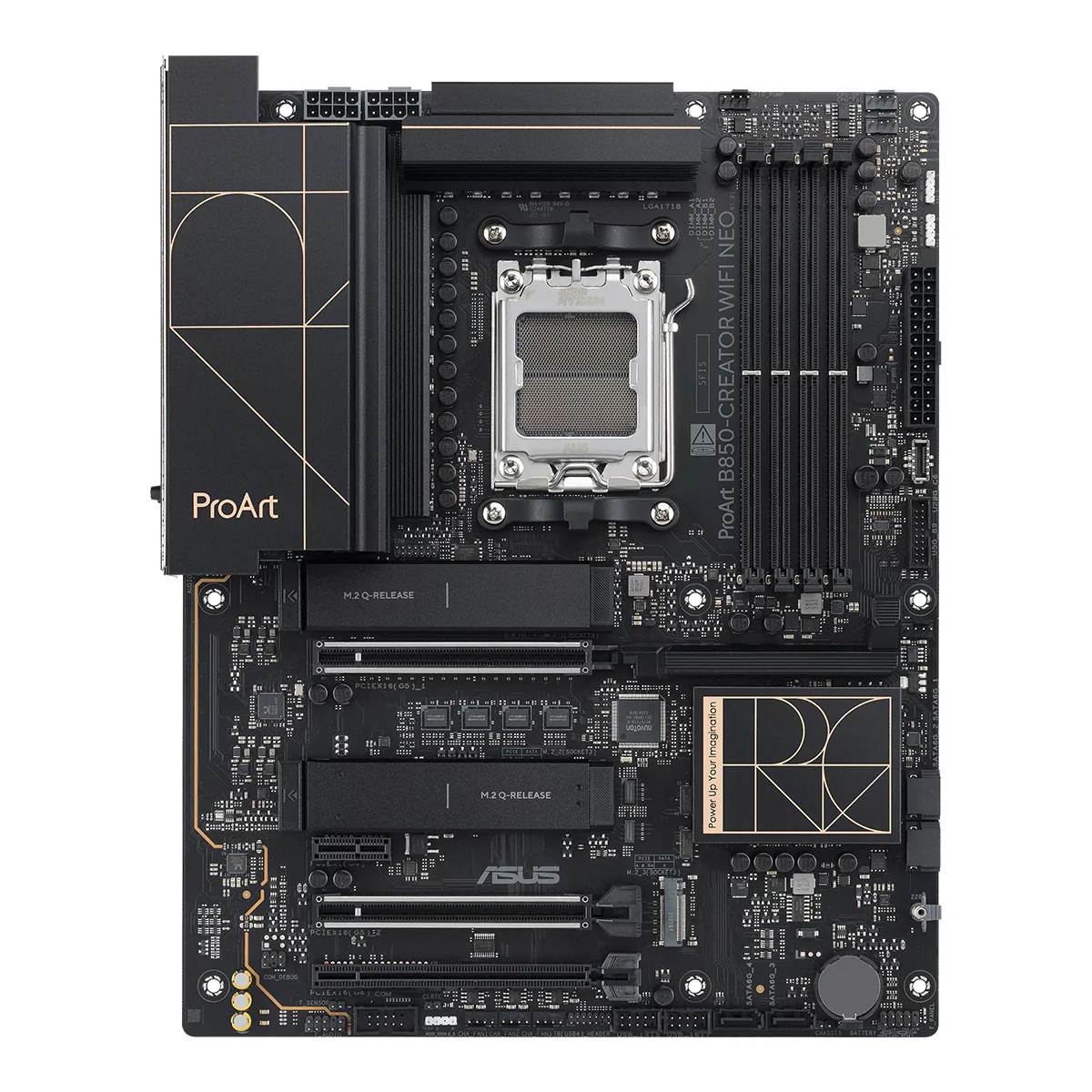

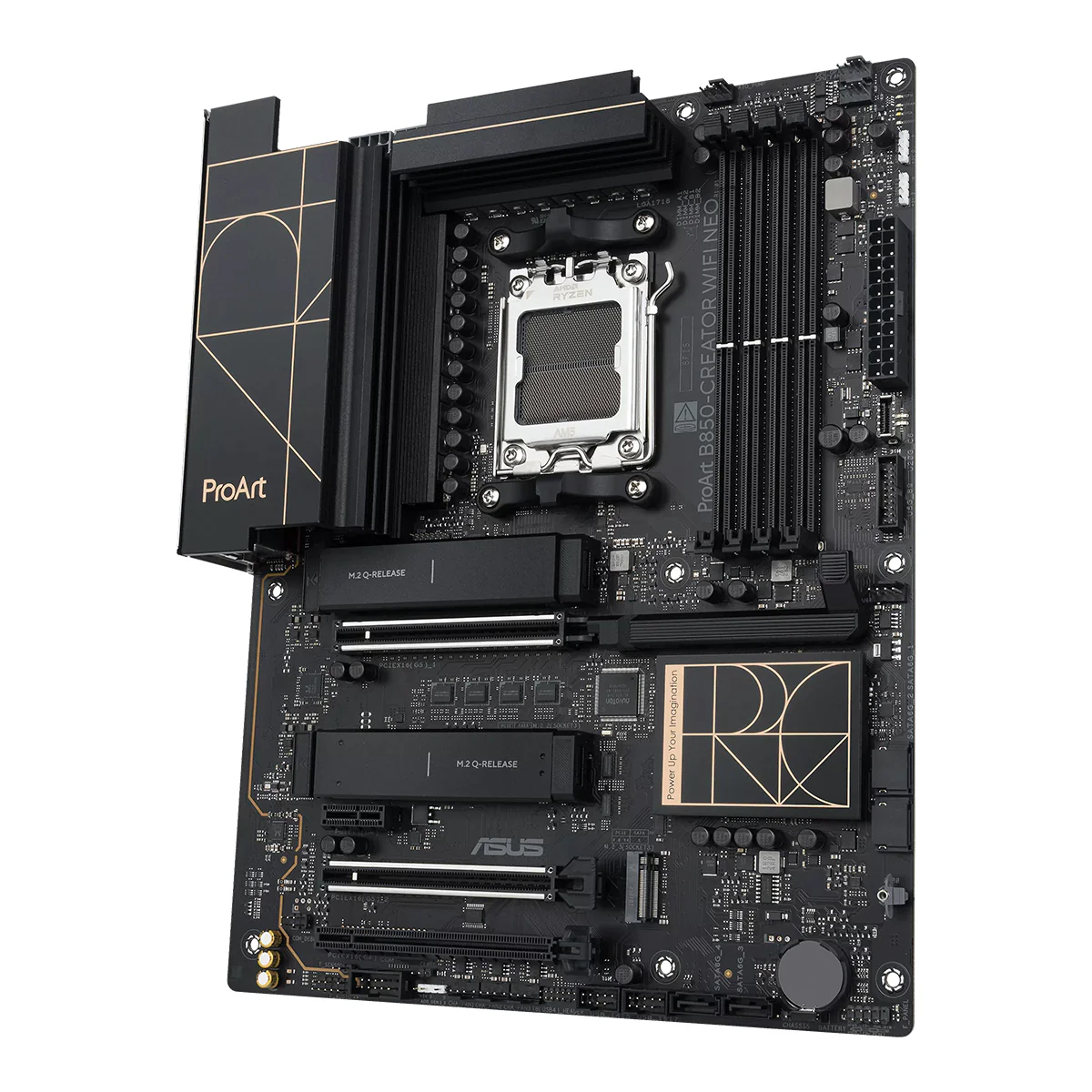

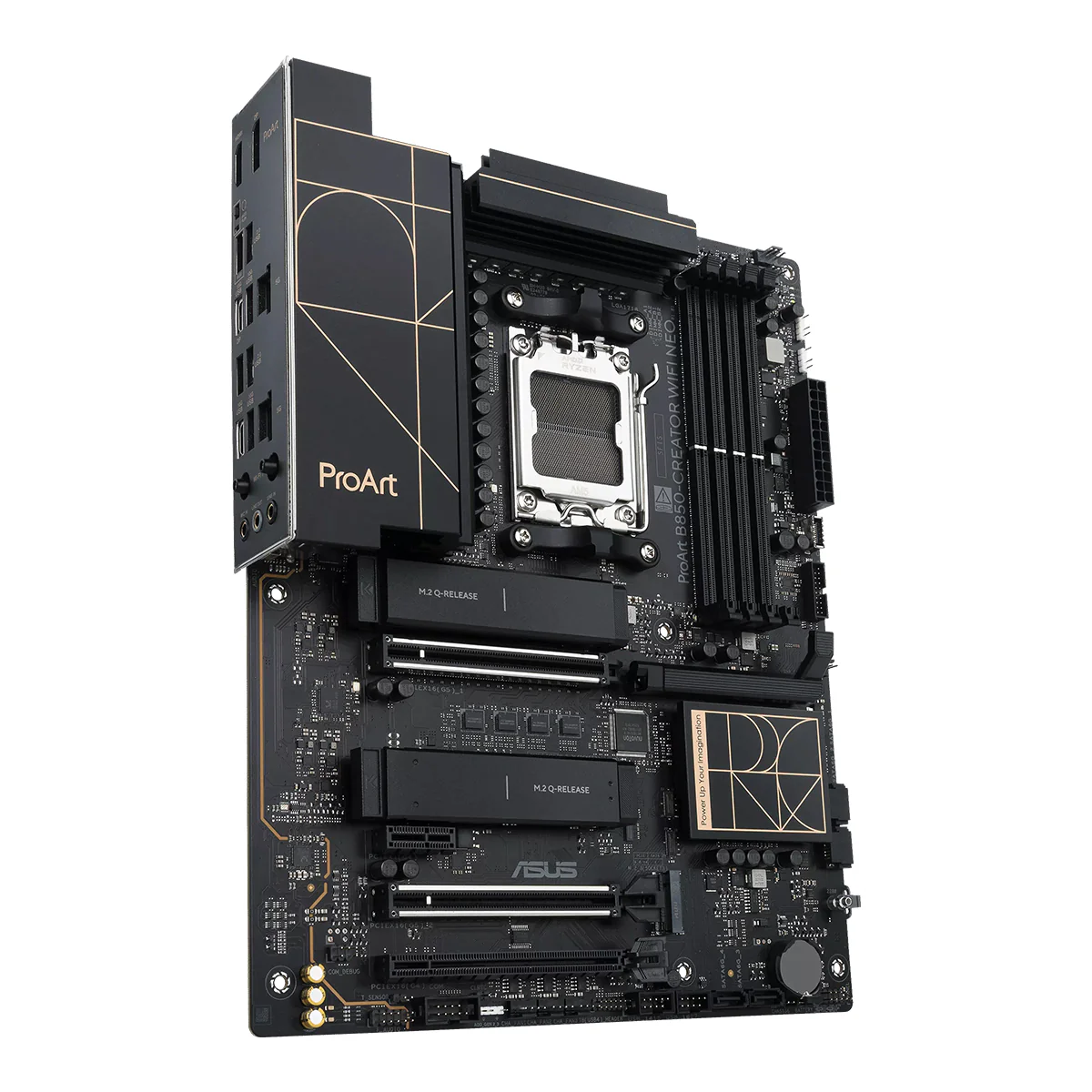

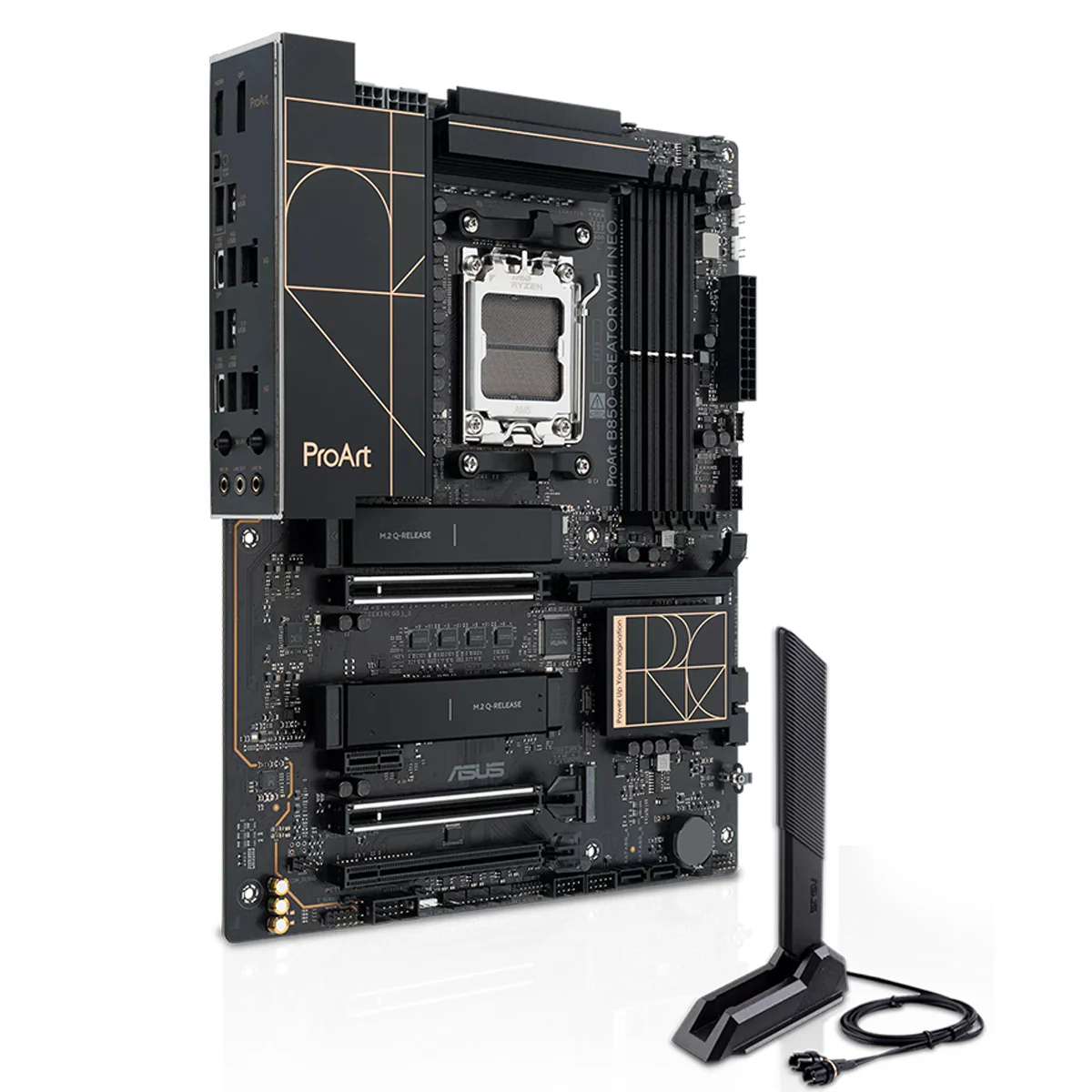

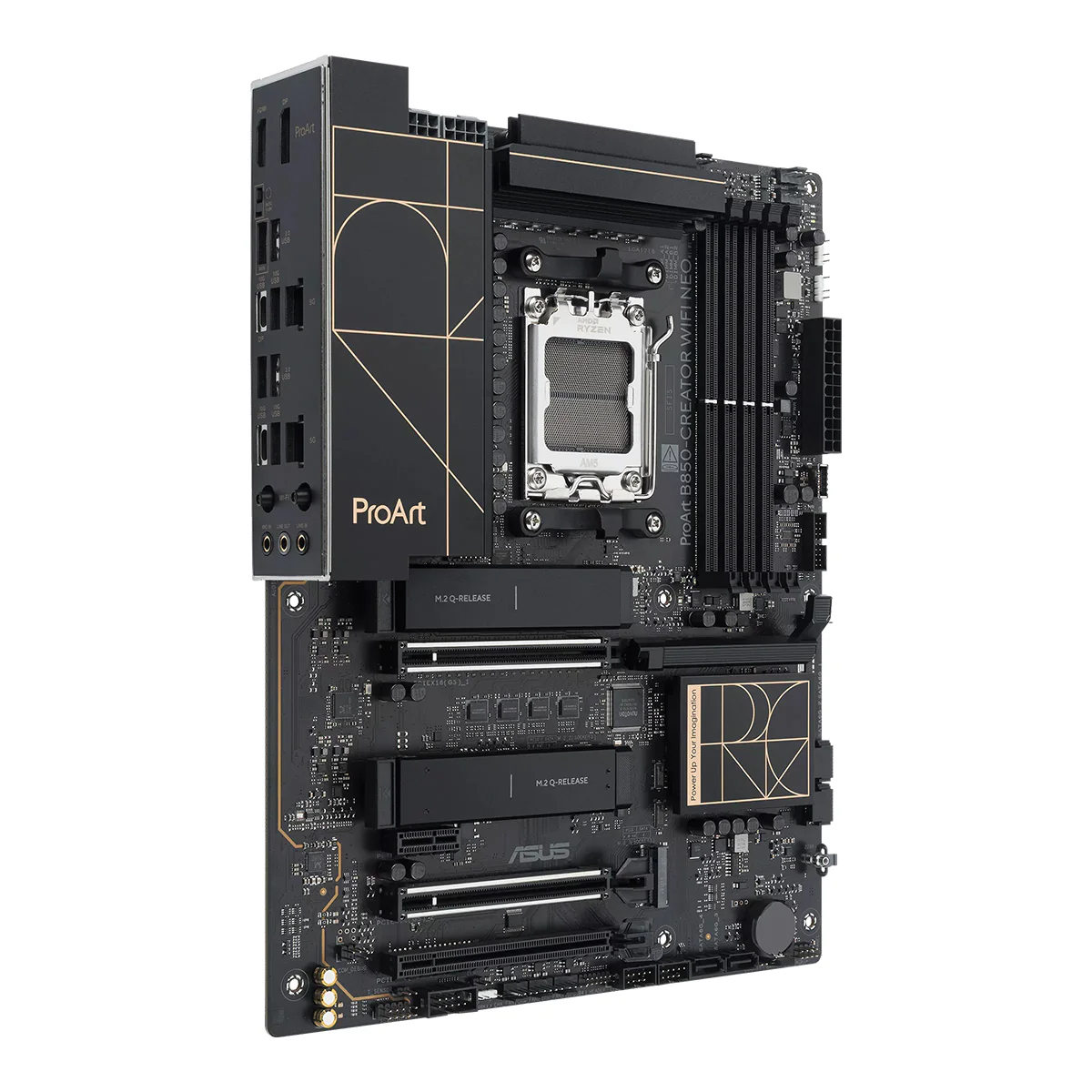

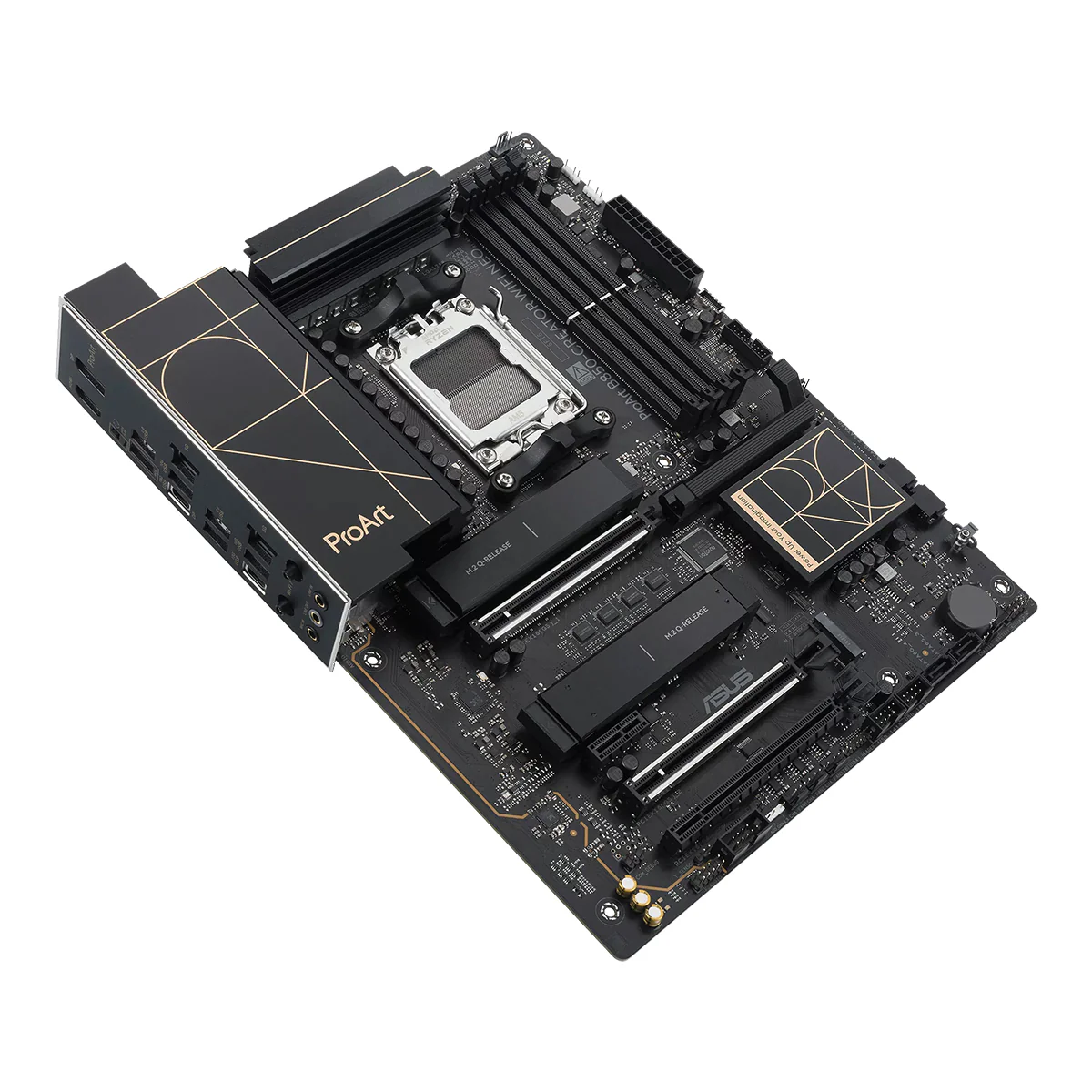

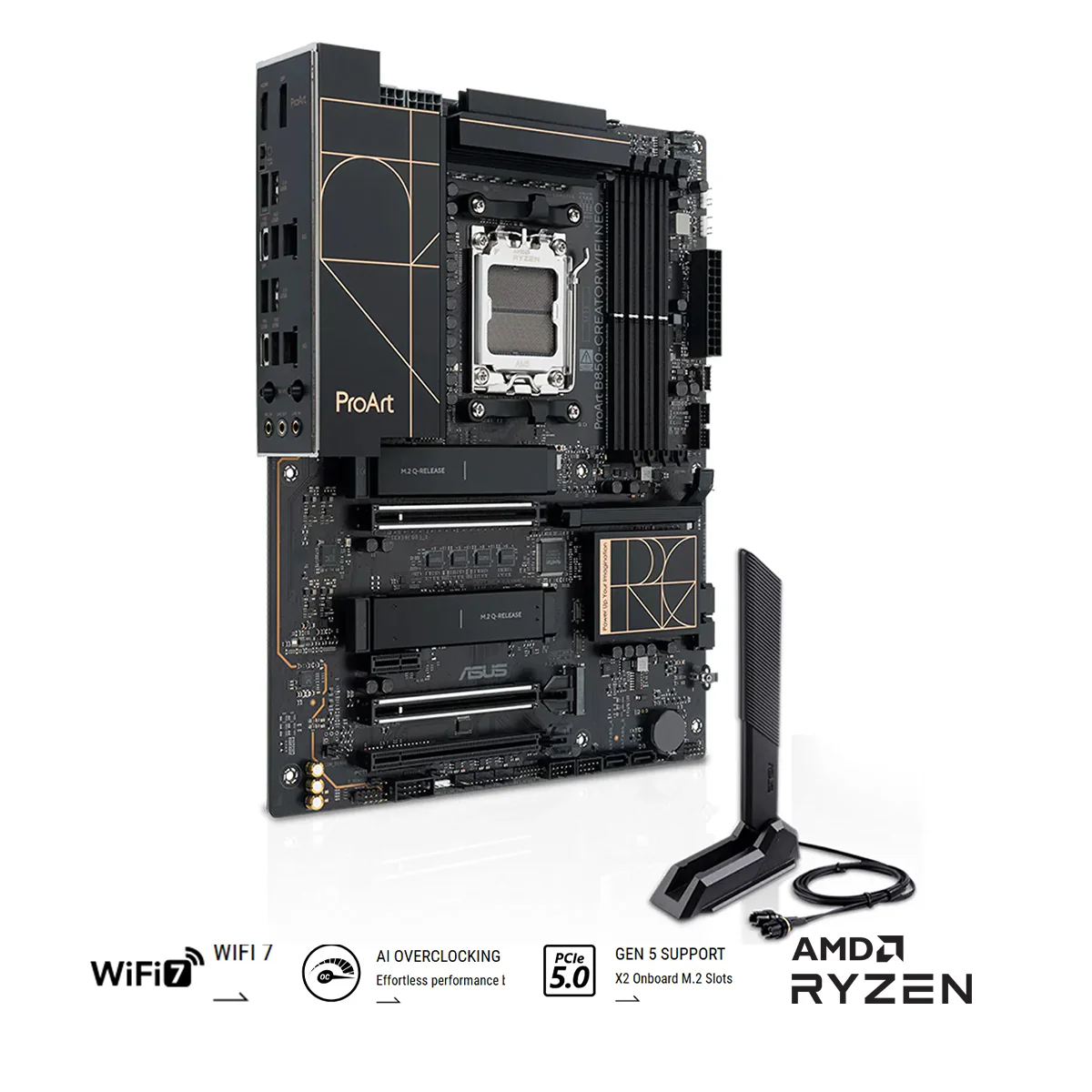

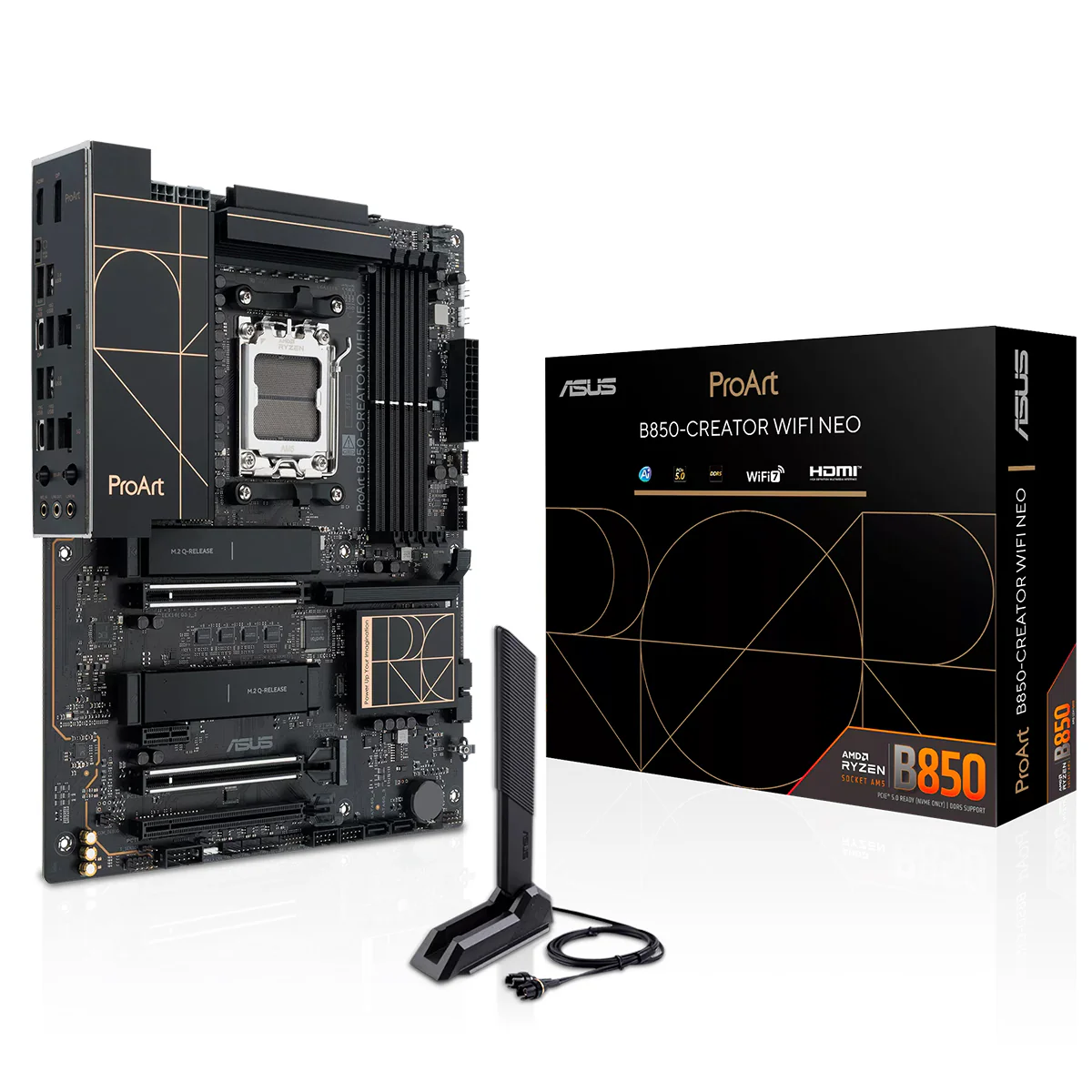

The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe^® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.



CORE SPECIFICATIONS
Model	ProArt B850-CREATOR WIFI NEO
CPU Socket	AMD AM5 (Supports Ryzen 9000, 8000, 7000 Series & EPYC 4005)
Chipset	AMD B850
Memory	4 x DDR5 DIMM (Max 256GB), Supports EXPO & AEMP

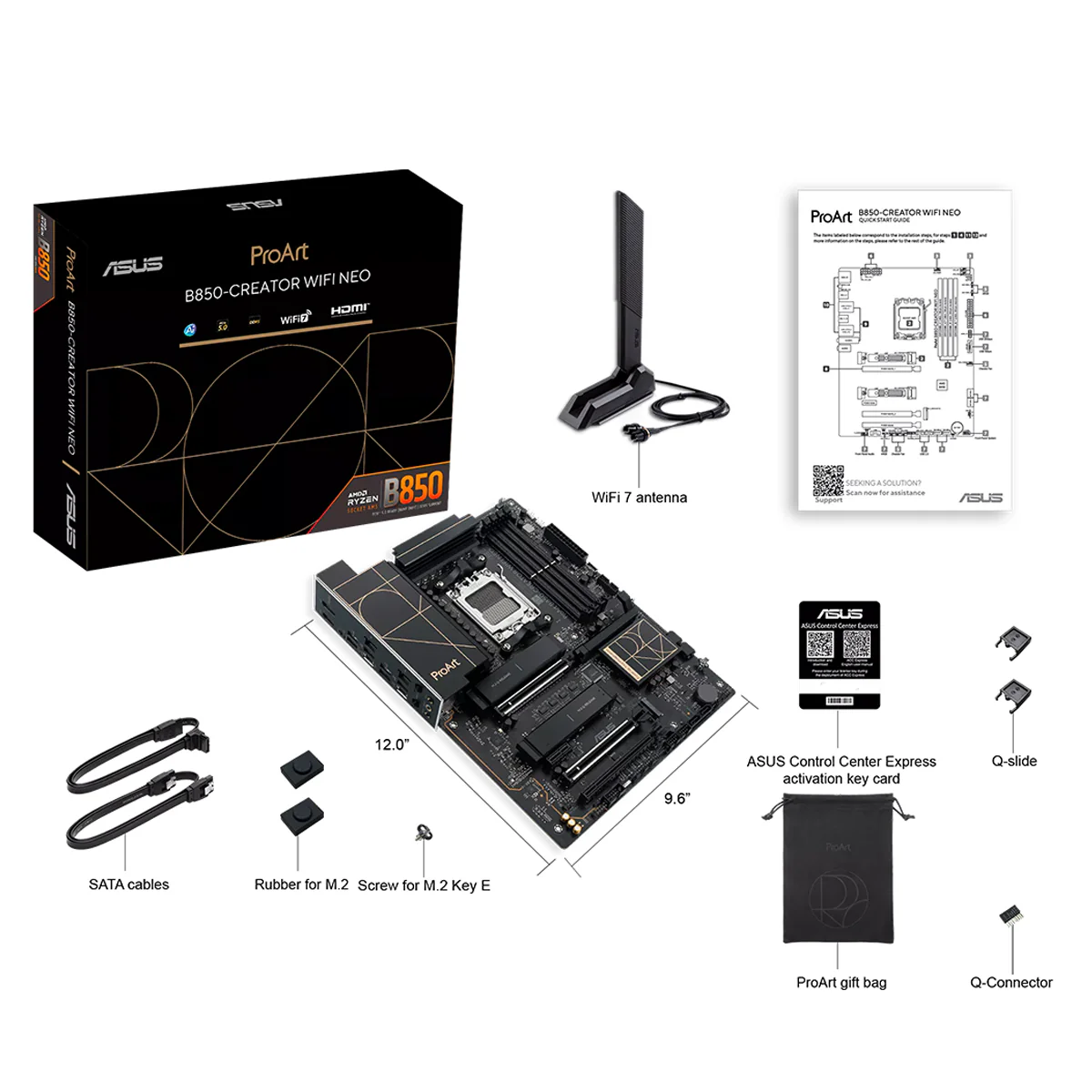

Form Factor	ATX (12" x 9.6")
EXPANSION & STORAGE
PCIe Slots	2 x PCIe 5.0 x16 (x16 or x8/x8 modes), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
M.2 Slots	3 x Total (2 x PCIe 5.0, 1 x PCIe 4.0)
SATA	4 x SATA 6Gb/s
CONNECTIVITY & AUDIO

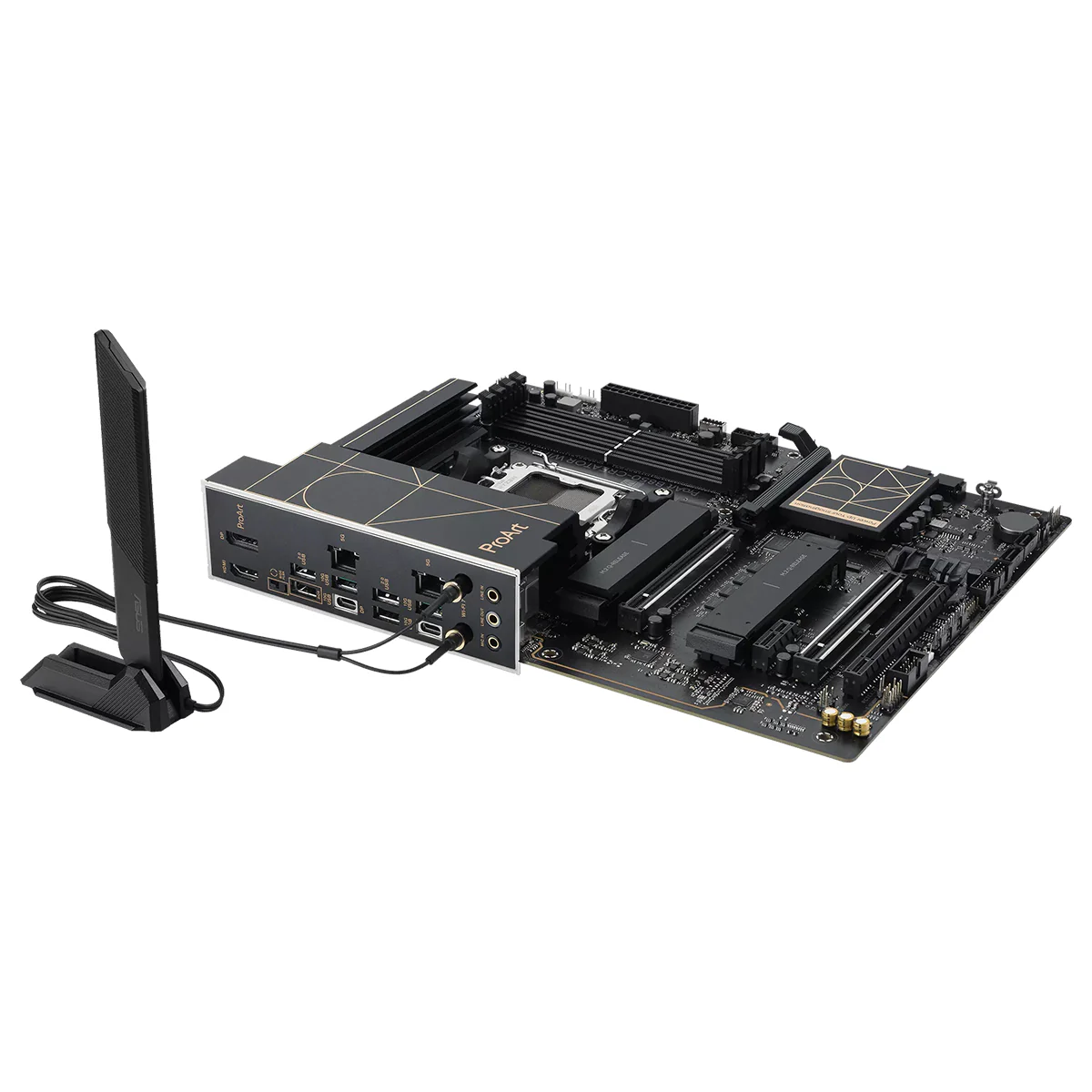

Ethernet	2 x Realtek 5Gb Ethernet
Wireless	Wi-Fi 7 (Realtek RTL8922AE), Bluetooth 5.4

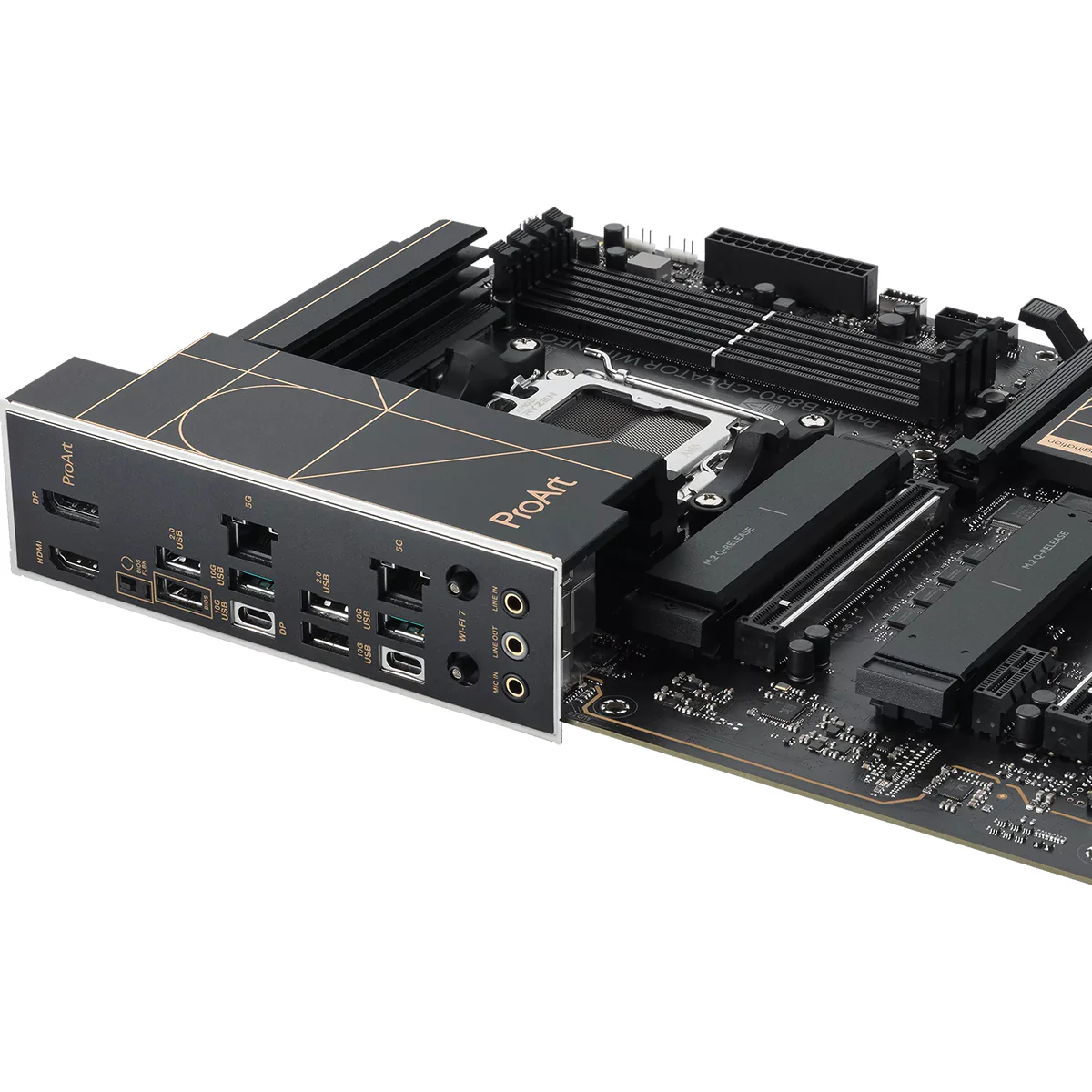

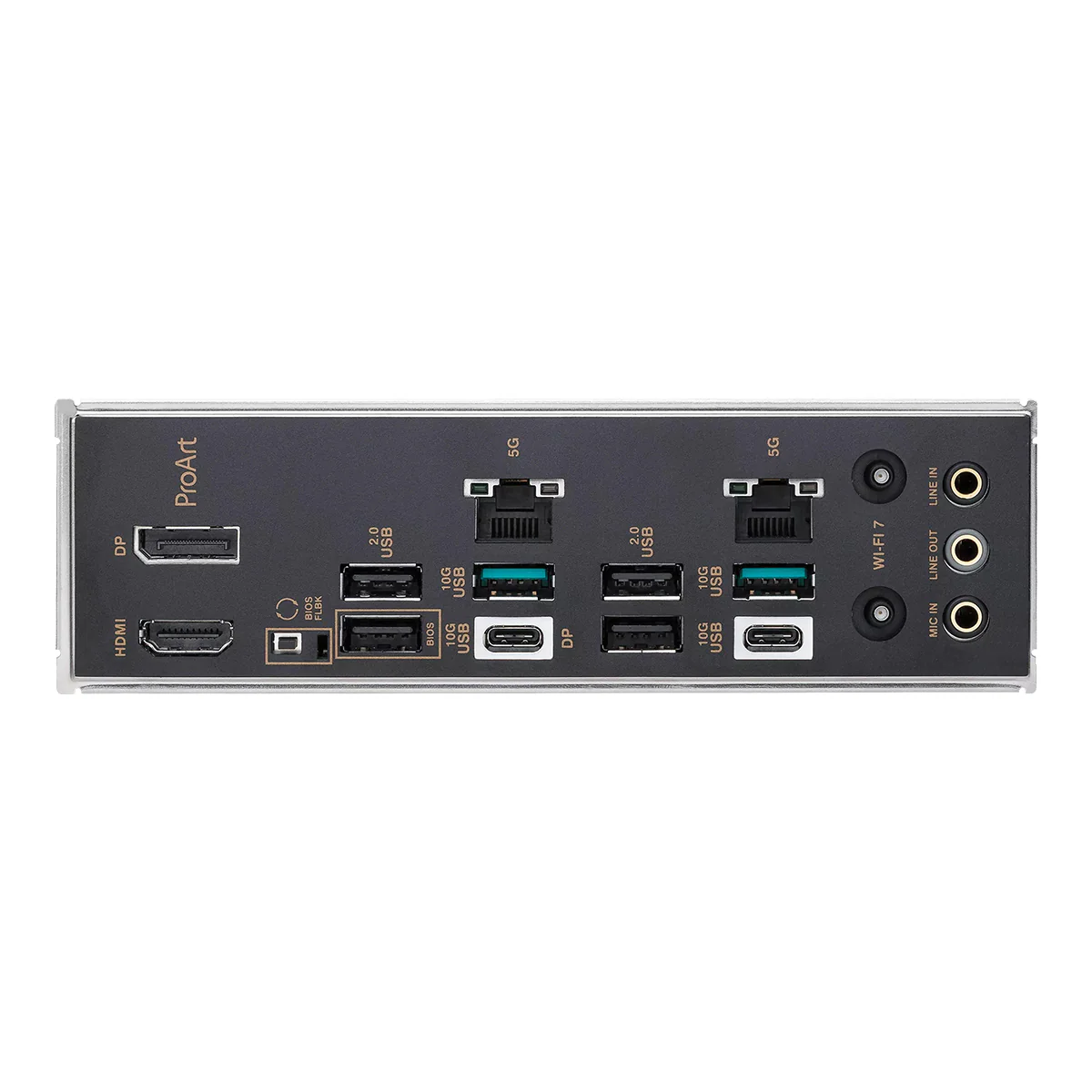

Rear USB	2 x USB 10Gbps Type-C (one with Alt mode), 2 x USB 10Gbps Type-A, 4 x USB 2.0
Audio	Realtek ALC1220P 7.1 Surround (Internal Amp, 120 dB SNR)
INTERNAL HEADERS
Fan/Cooling	CPU, CPU OPT, AIO Pump, 4 x Chassis Fan headers
USB Headers	1 x USB 20Gbps (Type-C 30W PD/QC4+), 1 x USB 5Gbps, 2 x USB 2.0
RGB	3 x Addressable Gen 2 headers
SPECIAL FEATURES
Pro/Business	24/7 reliability, ASUS Control Center Express (ACCE)
ASUS Q-Design	Q-Antenna, Q-Connector, Q-DIMM, Q-LED, PCIe/M.2 Q-Release/Latch/Slide
Thermal/DIY	M.2 heatsinks/backplate, BIOS FlashBack, Pre-mounted I/O shield
