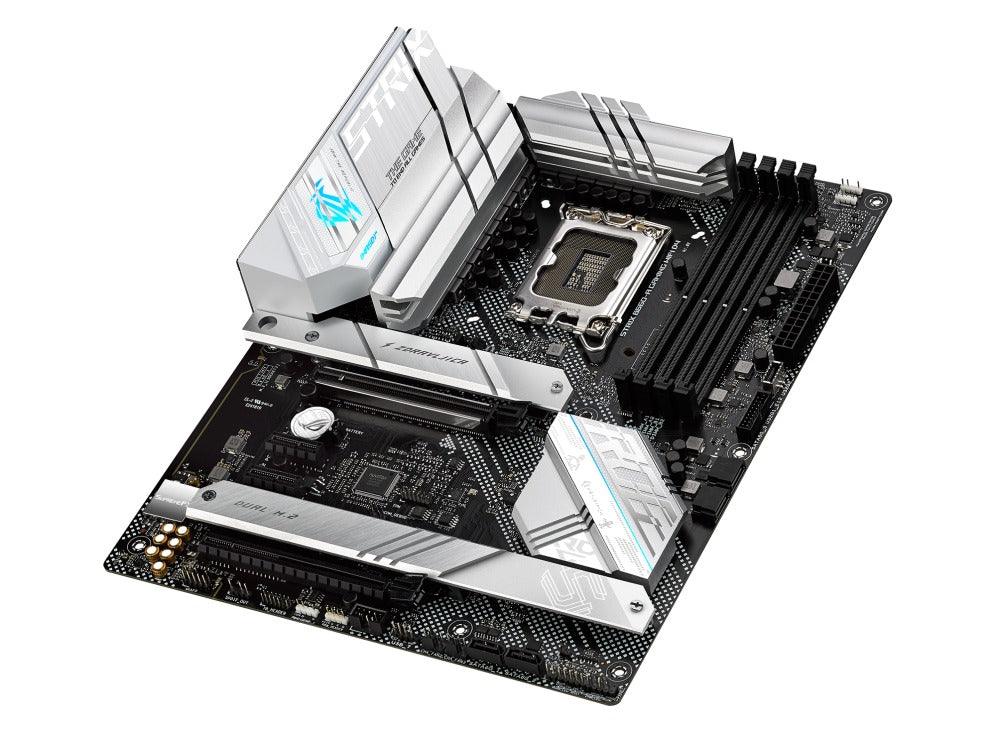

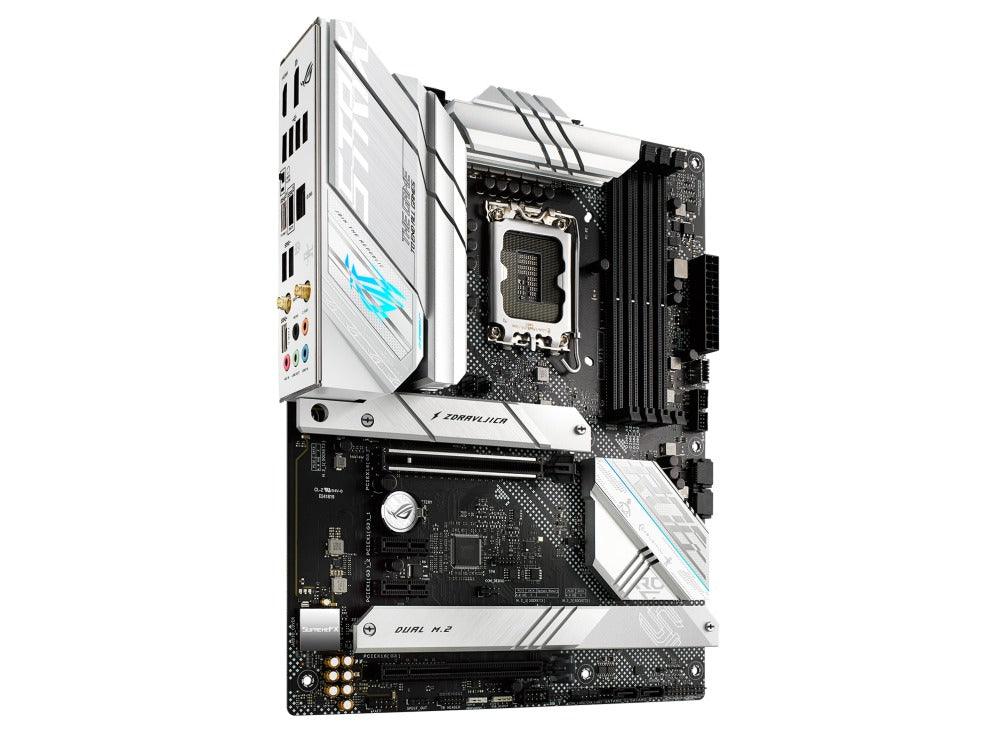

ROG STRIX B660-A GAMING WIFI D4

Intel^® B660 LGA 1700 ATX motherboard with PCIe^® 5.0, 12+1 power stages, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, three PCIe 4.0 M.2 slots with heatsinks, USB 3.2 Gen 2x2 Type-C^®, SATA and Aura Sync RGB lighting

• Intel^® LGA 1700 socket: Ready for 13th Gen Intel^® Core^™ Processors and 12th Gen Intel^® Core^™, Pentium^® Gold, and Celeron^® Processors
• Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimized Thermal Design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
• High-performance Networking: On-board Intel^® WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI^® 2.1 and DisplayPort^™ 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C^®
• Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack^™ button and Q-LED
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS^® Sound Unbound^™ and Sonic Studio III
• Renowned Software: Bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard

SPECIFICATIONS:

CPU	Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B660 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC) /5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*   Dual Channel Memory Architecture OptiMem II *Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics	1 x DisplayPort**   1 x HDMI® port***   *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.   ** Support 4K@60Hz as specified in DisplayPort 1.4.   ***Support 4K@60Hz as specified in HDMI 2.1.   **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel® 13th & 12th Gen Processors   1 x PCIe 5.0/4.0/3.0 x16 slot(s)*   Intel® B660 Chipset**   1 x PCIe 3.0 x16 slot (supports x4 mode)*   2 x PCIe 3.0 x1 slots   * Please check PCIe bifurcation table in User Guide Chapter 1 // support site.   ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*   Intel® 13th & 12th Gen Processors   M.2_1 slot (Key M), type 2242/2260/2280/22110   - Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode.   Intel® B660 Chipset   M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)   M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)   4 x SATA 6Gb/s ports***   * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Intel® 2.5Gb Ethernet   ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
USB	Rear USB (Total 9 ports)   1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)   1 x USB 3.2 Gen 2 port(s) (1 x Type-A)   3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)   4 x USB 2.0 port(s) (4 x Type-A)   Front USB (Total 6 ports)   1 x USB 3.2 Gen 2 connector (supports USB Type-C®)   1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports   1 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080   - Impedance sense for front and rear headphone outputs   - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking   - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input   - Supports up to 32-Bit/384 kHz playback   Audio Features   - SupremeFX Shielding Technology   - Savitech SV3H712 AMP   - Premium audio capacitors   - Audio cover   * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.   **The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Back Panel I/O Ports	1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)   1 x USB 3.2 Gen 2 port(s) (1 x Type-A)   3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C®)   4 x USB 2.0 port(s) (4 x Type-A)   1 x DisplayPort   1 x HDMI® port   1 x Wi-Fi Module   1 x Intel® 2.5Gb Ethernet port   5 x Audio jacks   1 x BIOS FlashBack™ button
Internal I/O Connectors	Fan and Cooling related   1 x 4-pin CPU Fan header(s)   1 x 4-pin CPU OPT Fan header(s)   1 x 4-pin AIO Pump header(s)   3 x 4-pin Chassis Fan header(s)   Power related   1 x 24-pin Main Power connector   1 x 8-pin +12V Power connector   1 x 4-pin +12V Power connector   Storage related   3 x M.2 slots (Key M)   4 x SATA 6Gb/s ports   USB   1 x USB 3.2 Gen 2 connector (support USB Type-C®)   1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports   1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports   Miscellaneous   3 x Addressable Gen 2 headers   1 x AURA RGB header   1 x Clear CMOS header   1 x Front Panel Audio header (AAFP)   1 x S/PDIF Out header   1 x SPI TPM header (14-1pin)   1 x 20-3 pin System Panel header with Chassis intrude function   1 x Thunderbolt™ header
Special Features	Extreme Engine Digi+   -5K Black Metallic Capacitors   ASUS Q-Design   - M.2 Q-Latch   - Q-DIMM   - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])   - Q-Slot   ASUS Thermal Solution   - M.2 heatsink   - VRM heatsink design   ASUS EZ DIY   - BIOS FlashBack™ button   - BIOS FlashBack™ LED   - CPU Socket lever protector   - Pre-mounted I/O shield   - SafeSlot   - SafeDIMM   AURA Sync   - AURA RGB header(s)   - Addressable Gen 2 header(s)
Software Features	ROG Exclusive Software   - GameFirst VI   - ROG CPU-Z   - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion   - Sonic Radar III   - DTS® Sound Unbound   - Anti-virus software   ASUS Exclusive Software   Armoury Crate   - AIDA64 Extreme (60 days free trial)   - AURA Creator   - AURA Sync   - Fan Xpert 4   - Two-Way AI Noise Cancelation   AI Suite 3   - Performance And Power Saving Utility   TurboV EVO   EPU   DIGI+ VRM   Turbo app   MyAsus   WinRAR   UEFI BIOS   ASUS EZ DIY   - ASUS CrashFree BIOS 3   - ASUS EZ Flash 3   - ASUS UEFI BIOS EZ Mode
BIOS	192 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables   4 x SATA 6Gb/s cables   Miscellaneous   1 x ASUS Wi-Fi moving antennas   1 x Cable ties pack   1 x M.2 Rubber Package(s)   1 x M.2 Q-Latch package(s)   1 x ROG key chain   1 x ROG Strix stickers   1 x ROG Strix thank you card   Installation Media   1 x Support DVD   Documentation   1 x User guide
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX Form Factor   12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
