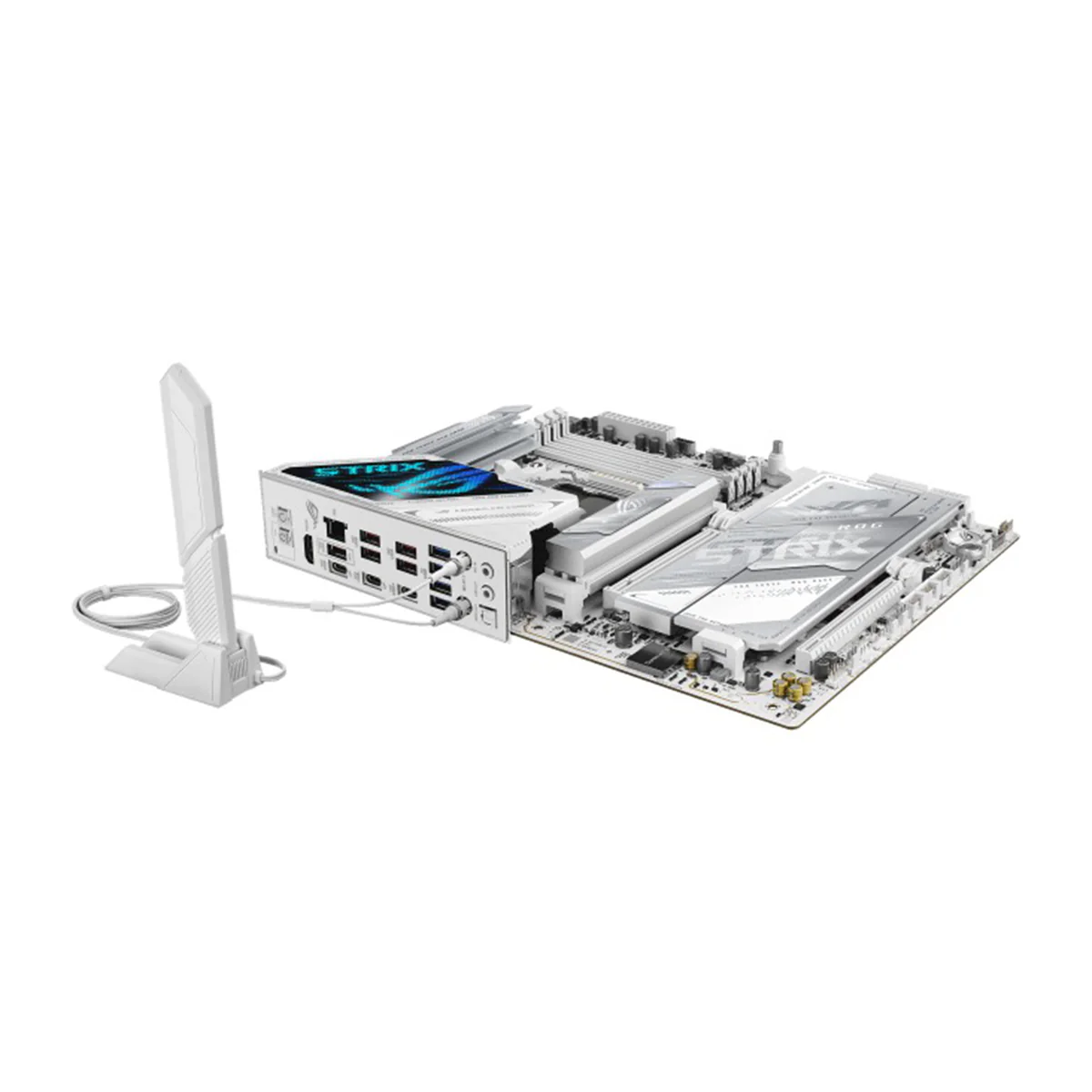

Elevate your build with the ROG Strix X870E-A Gaming WiFi7 Neo, featuring a sleek white aesthetic and a design that maximizes the performance of AMD Ryzen™ 9000 Series processors. PCIe^® 5.0, ASUS AI features including AI Cache Boost and ASUS AI Advisor—and exclusive memory technologies such as NitroPath DRAM Technology, DIMM Fit Pro, and AEMP—simplify setup and deliver optimized DDR5 performance. High-speed connectivity is boosted by dual USB4^® Type-C ports, WiFi 7, and Realtek^® 5G Ethernet, while enhanced M.2 cooling helps ensure stability for demanding workloads. It is the ultimate blend of style and performance.



CORE SPECIFICATIONS
Model	ROG STRIX X870E-A GAMING WIFI7 NEO
CPU Socket	AMD AM5 (Supports Ryzen 9000, 8000, & 7000 Series)
Chipset	AMD X870E
Memory	4 x DDR5 DIMM (Max 256GB), Supports EXPO, NitroPath, and AEMP
Form Factor	ATX (12" x 9.6")
EXPANSION & STORAGE
PCIe Slots	1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (Chipset)
M.2 Slots	4 x Total (2 x PCIe 5.0, 2 x PCIe 4.0)
SATA	4 x SATA 6Gb/s
CONNECTIVITY & AUDIO
Ethernet	Realtek 5Gb Ethernet
Wireless	Wi-Fi 7 (MediaTek MT7925), Bluetooth 5.4
Rear USB	2 x USB4 (40Gbps), 6 x USB 10Gbps, 4 x USB 5Gbps
Audio	ROG SupremeFX ALC4080 7.1 Surround (Savitech SV3H712 AMP)
INTERNAL HEADERS
Fan/Cooling	CPU, CPU OPT, AIO Pump, 5 x Chassis Fan headers
USB Headers	1 x USB 20Gbps (Type-C), 1 x USB 5Gbps (Type-C), 2 x USB 5Gbps, 3 x USB 2.0
RGB	3 x Addressable Gen 2 headers
SPECIAL FEATURES
ASUS Q-Design	Q-Antenna, Q-Dashboard, Q-LED, PCIe/M.2 Q-Release/Latch/Slide
Cooling/DIY	VRM/M.2 heatsinks, BIOS FlashBack, Clear CMOS, ProCool II
