Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard

Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard

CVN X570M GAMING FROZEN V14

Feature Highlights:

◆Supports  AMD AM4 socket Ryzen 2000 and 3000 series Processors
◆Supports Dual Channel DDR4 memory
*when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory
*when using Ryzen 3000 series processor,support 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
*Warm Tip: Memory Overclocking also depends on the performance of the CPU and the memory itself
◆6*SATA3.0 ports
◆2*M.2 slots
*Support MSATA and PCI-e Gen4 x4 SSD
◆RTL8111H 1000M LAN chipset
◆Onboard 8-channel audio chipset
◆DP+HDMI ports
◆2*4PIN 12V RGB LED headers
◆2*3PIN 5V RGB LED headers
◆2*USB3.1 GEN2(TYPE-A) ,6*USB3.1 GEN1(5*TYPE-A,1*TYPE-C) & 6*USB2.0 ports(include headers)
◆misty-white PCB technology
◆Support PCI Express4.0 standard and 2-Way AMD CrossFire technology


Specification:
Model CVN X570M GAMING FROZEN V14
Product Series AMD chipset,CVN series
Chipset AMD X570
Processor support AMD AM4 socket Ryzen 2000 and 3000 series processor
Memory 4 DIMM slots,Support dual channel DDR4 memory,when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory,when using Ryzen 3000 series processor,support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
Graphics Support 1*PCI Express4.0X16,1*PCI Express4.0X4 slots(support 2-Way AMD CrossFire™)
SATA Ports 6*SATA3.0 6Gb/s ports

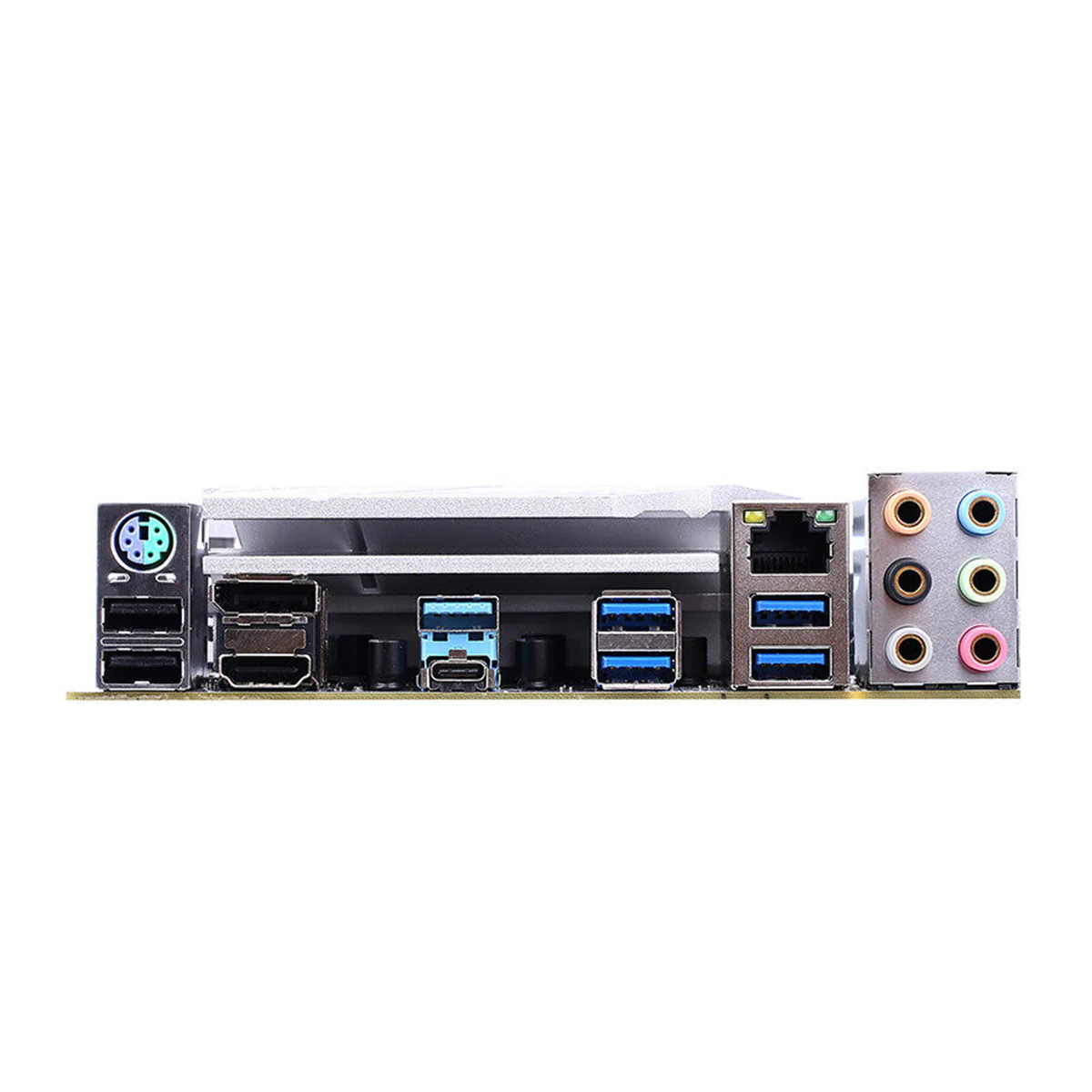

Board I/O IO:1*PS2,2*USB2.0,1*HDMI,1*DP,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,2*USB3.1 GEN2 TYPE-A ports.1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A
Expansion Slots 1*PCI Express4.0x1 and 2*M.2(support MSATA and PCI-e Gen4 x4 SSD) slots
BIOS 256M UEFI
Power Management support 125W processors
Hardware Monitor CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN RTL8111H 1000M LAN chipset
Audio ALC892 8-channel audio chipset
Configuration 245*245mm mATX
Other Features Support ACPI S3/S4/S5/G3;Support USB KB/MS wake-up;Support PS2 KB/MS wake-up;Support phone call startup, timing boot, network S5 wake-up
$42.20

Original: $140.67

-70%
Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard—

$140.67

$42.20

Product Information

Shipping & Returns

Description

CVN X570M GAMING FROZEN V14

Feature Highlights:

◆Supports  AMD AM4 socket Ryzen 2000 and 3000 series Processors
◆Supports Dual Channel DDR4 memory
*when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory
*when using Ryzen 3000 series processor,support 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
*Warm Tip: Memory Overclocking also depends on the performance of the CPU and the memory itself
◆6*SATA3.0 ports
◆2*M.2 slots
*Support MSATA and PCI-e Gen4 x4 SSD
◆RTL8111H 1000M LAN chipset
◆Onboard 8-channel audio chipset
◆DP+HDMI ports
◆2*4PIN 12V RGB LED headers
◆2*3PIN 5V RGB LED headers
◆2*USB3.1 GEN2(TYPE-A) ,6*USB3.1 GEN1(5*TYPE-A,1*TYPE-C) & 6*USB2.0 ports(include headers)
◆misty-white PCB technology
◆Support PCI Express4.0 standard and 2-Way AMD CrossFire technology


Specification:
Model CVN X570M GAMING FROZEN V14
Product Series AMD chipset,CVN series
Chipset AMD X570
Processor support AMD AM4 socket Ryzen 2000 and 3000 series processor
Memory 4 DIMM slots,Support dual channel DDR4 memory,when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory,when using Ryzen 3000 series processor,support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
Graphics Support 1*PCI Express4.0X16,1*PCI Express4.0X4 slots(support 2-Way AMD CrossFire™)
SATA Ports 6*SATA3.0 6Gb/s ports
Board I/O IO:1*PS2,2*USB2.0,1*HDMI,1*DP,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,2*USB3.1 GEN2 TYPE-A ports.1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A
Expansion Slots 1*PCI Express4.0x1 and 2*M.2(support MSATA and PCI-e Gen4 x4 SSD) slots
BIOS 256M UEFI
Power Management support 125W processors
Hardware Monitor CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring
LAN RTL8111H 1000M LAN chipset
Audio ALC892 8-channel audio chipset
Configuration 245*245mm mATX
Other Features Support ACPI S3/S4/S5/G3;Support USB KB/MS wake-up;Support PS2 KB/MS wake-up;Support phone call startup, timing boot, network S5 wake-up
