EFFICIENT POWER FOR NEARLY ANY BUILD

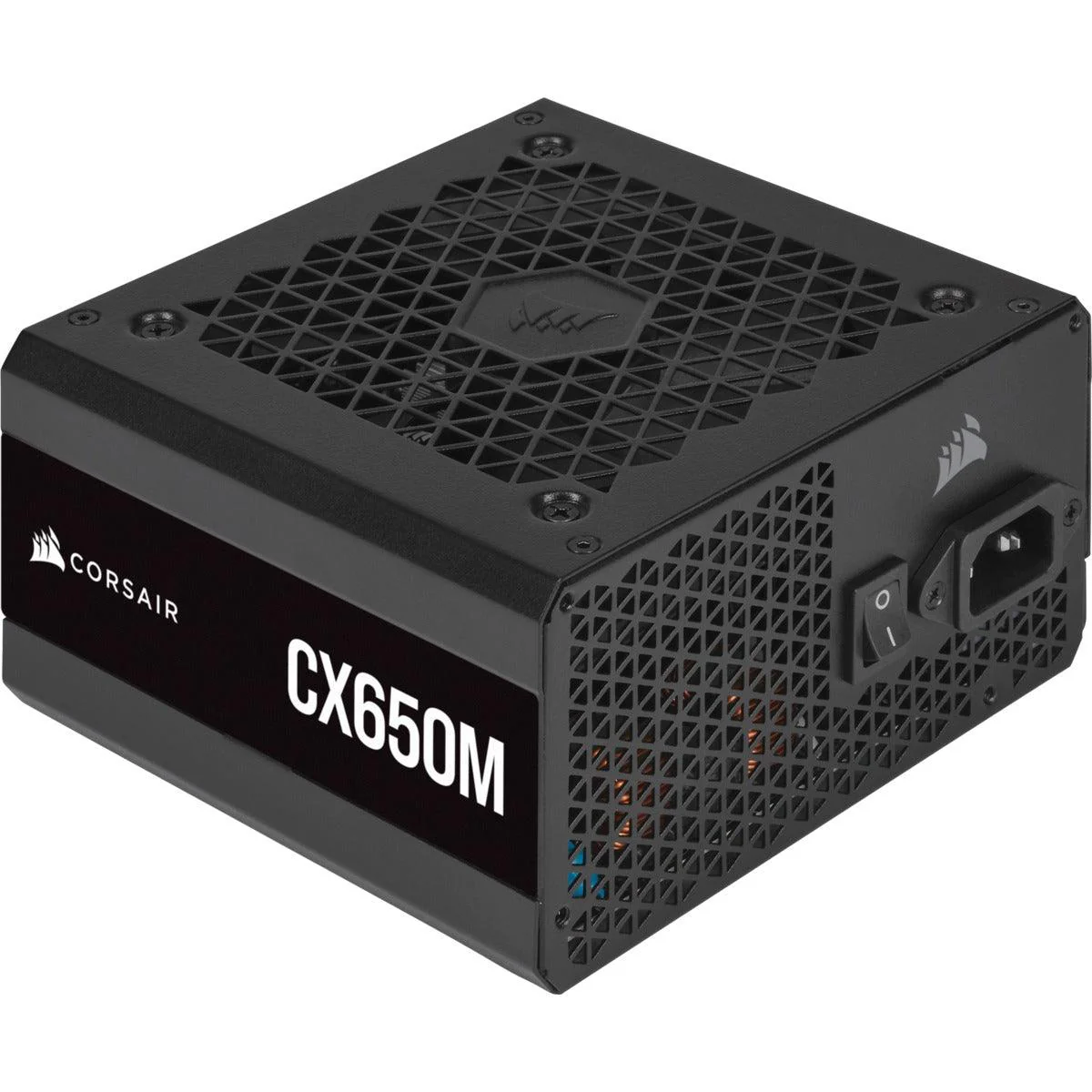

CORSAIR CX-M Series Low-Noise Power Supplies offer semi-modular cabling, a long-lasting rifle bearing fan, and Japanese capacitors for reliable, low-noise operation.

TUNED FOR LOW-NOISE OPERATION

A rifle bearing fan ensures longer life than conventional bearings with less noise, letting you focus more on the task at hand, whether it’s gaming or work.

SEMI-MODULAR CABLING

Connect only the cables you need for a cleaner build with easy cable management and dual EPS12V connections.

Also compatible with the CORSAIR 12-pin GPU power cable for the hottest new GPUs.

HIGH EFFICIENCY

With upwards of 85% peak efficiency, CX-M produces less noise and less heat, which means less time worrying and more time gaming.

ROBUST DC-DC CONVERSION

For clean, consistent power, each CX-M Series power supply features robust DC-DC conversion and 105°C rated Japanese primary capacitors for unparalleled reliability.

COMPACT SIZE

At just 140mm long, the CX-M Series offers great flexibility in build configurations.

CERTIFICATIONS

The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.

The "Silver" efficiency rating is defined as >=87% & <89% (depending on input voltage).

The "S+" noise level test is measured in those same configurations to be ≥35 dBA & <40 dBA under noise data averaging.

Specifications :

Weight	1.5
Adjustable Single/Multi 12V Rail	No
ATX Connector	1
ATX12V Version	v2.4
Continuous power W	650 Watts
Fan bearing technology	Rifle
Fan size mm	120mm
MTBF hours	100,000 hours
Multi-GPU ready	NO
80 PLUS Efficiency	Bronze
PSU Form Factor	ATX
iCUE Compatibility	NO
Zero RPM Mode	NO
Cable Type	Low-Profile, All Black
EPS12V Connector	2
EPS12V Version	2.92
Modular	Semi
PCIe Connector	2
SATA Connector	6
