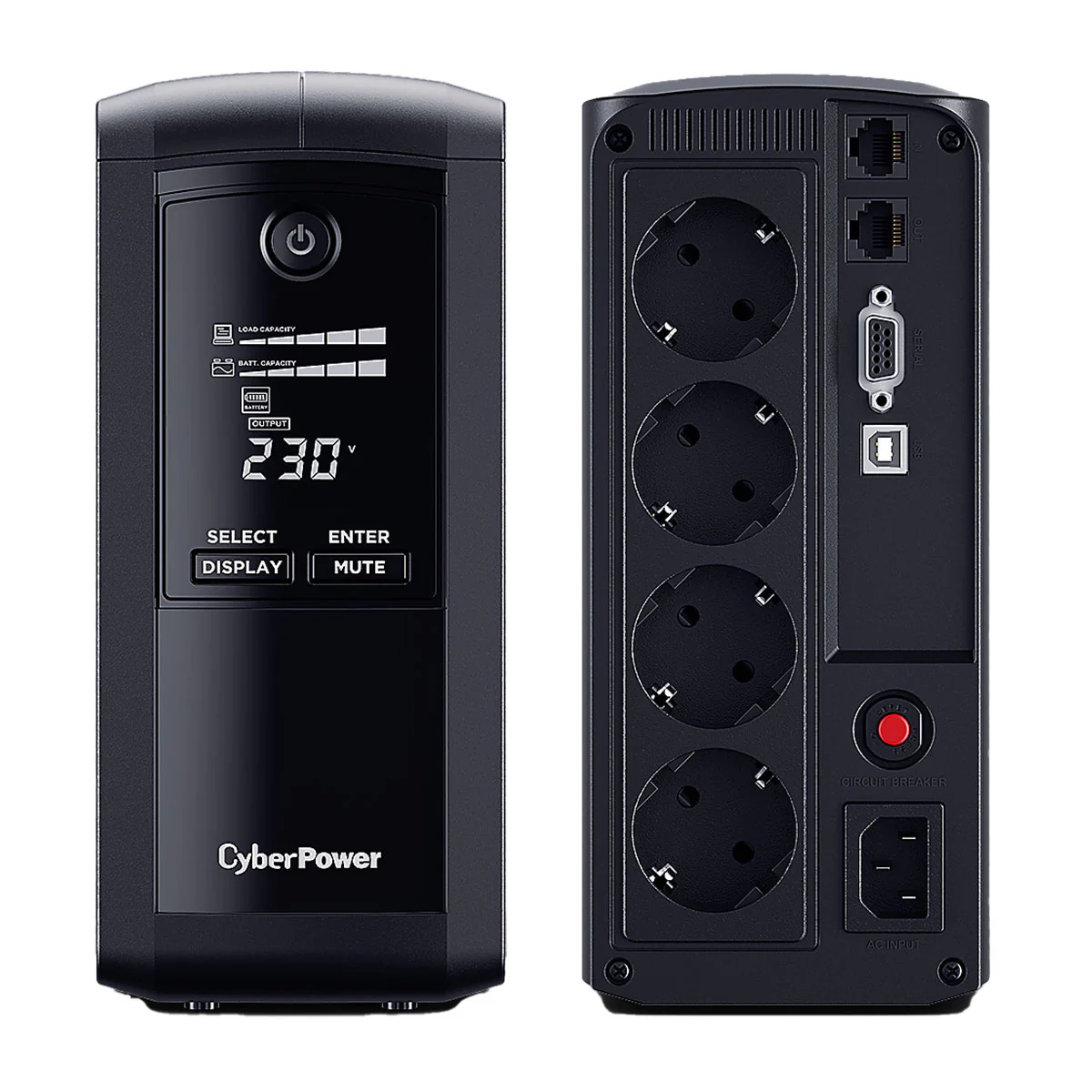

CyberPower VP700ELCD

offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment. The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.

FEATURE

• Line-interactive UPS Topology
• Generator Compatible
• Automatic Voltage Regulation (AVR)
• High-speed Ethernet Data Transmission
• Surge and Spike Protection
• PowerPanel Management Software

• Energy Saving Technology
• Simulated Sine Wave Output
• LCD Status Display
• USB Connectivity Port
• Serial Connectivity Port

SPECIFICATION

General
Phase	Single Phase
Form Factor	Tower
UPS Topology	Line-interactive
Energy Saving Technology	GreenPower UPS™ Bypass Technology
Input
Generator Compatibility	Yes
Nominal Input Voltage ( Vac )	230 ± 10%
Input Voltage Range ( Vac )	167 ~ 295
Input Frequency ( Hz )	50 ± 5 60 ± 5
Rated Input Current ( A )	3.04
Input Connector Type	IEC C14
Detachable Power Cord Plug Type	Schuko x 1
Power Cord Length (ft.)	5
Power Cord Length (m.)	1.5
Output
Capacity (VA)	700
Capacity (Watts)	390
On Battery Waveform	Simulated Sine Wave
On Battery Voltage(s) ( Vac )	230 ± 10 %
On Battery Frequency ( Hz )	50 ± 1% 60 ± 1%
Automatic Voltage Regulation (AVR)	Single Boost, Single Buck
Overload Protection	Circuit Breaker
Outlet(s) - Total	4
Outlet Type	Schuko x 4
Outlet(s) - Battery & Surge Protected	4
Typical Transfer Time ( ms )	4
Battery
Runtime at Half Load ( min )	10
Runtime at Full Load ( min )	1
Typical Recharge Time ( Hours )	8
Start On Battery	Yes
User-replaceable	Yes - Qualified Personnel Only
Battery Type	Sealed Lead-acid
Surge Protection & Filtering
Surge Suppression ( Joules )	450
EMI/RFI Filtration	Yes
Phone/Network Protection RJ11/RJ45 (Combo)	1-in, 1-out
Management & Communications
LCD Panel	Yes
LCD Information Display	Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information
LCD Setting & Control	Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning
LED Indicators	Power On
HID Compliant USB Port(s)	1
Audible Alarms	Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )	USB Cable x1
Ethernet Data Transmission Speed	Up to 1Gbps
Power Management Software	PowerPanel Personal (Recommended)
Physical
Enclosure Construction	Plastic
Color	Black
Physical Size - UPS Module
Dimensions (WxHxD) (in.)	3.9 x 8.9 x 10.2
Dimensions (WxHxD) (mm.)	100 x 227 x 260
Weight (lbs.)	11.33
Weight (kg.)	5.14
Environmental
Operating Temperature (°C)	0 ~ 40
Operating Relative Humidity (Non-condensing) ( % )	0 ~ 90
Operating Elevation ( feet/meters )	0-9,843 feet (0-3,000 meters)
Storage Temperature (°F)	-4 ~ 122
Storage Temperature (°C)	-20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )	0 ~ 90
Storage Elevation ( feet/meters )	0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )	9.5
Audible Noise at 1.0M from Surface of Unit ( dBA )	40
Certifications
Certifications	CE, EAC
RoHS	Yes
