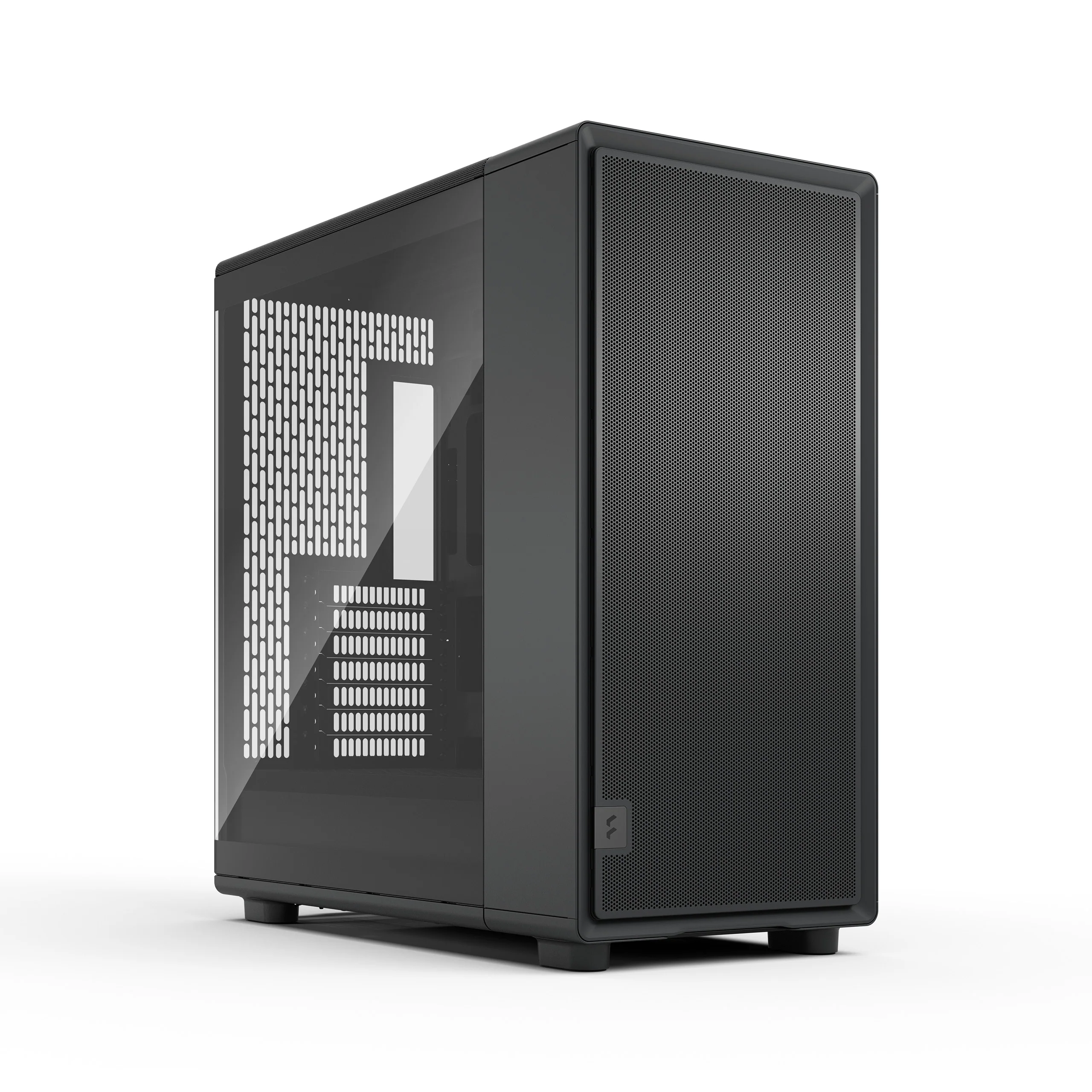

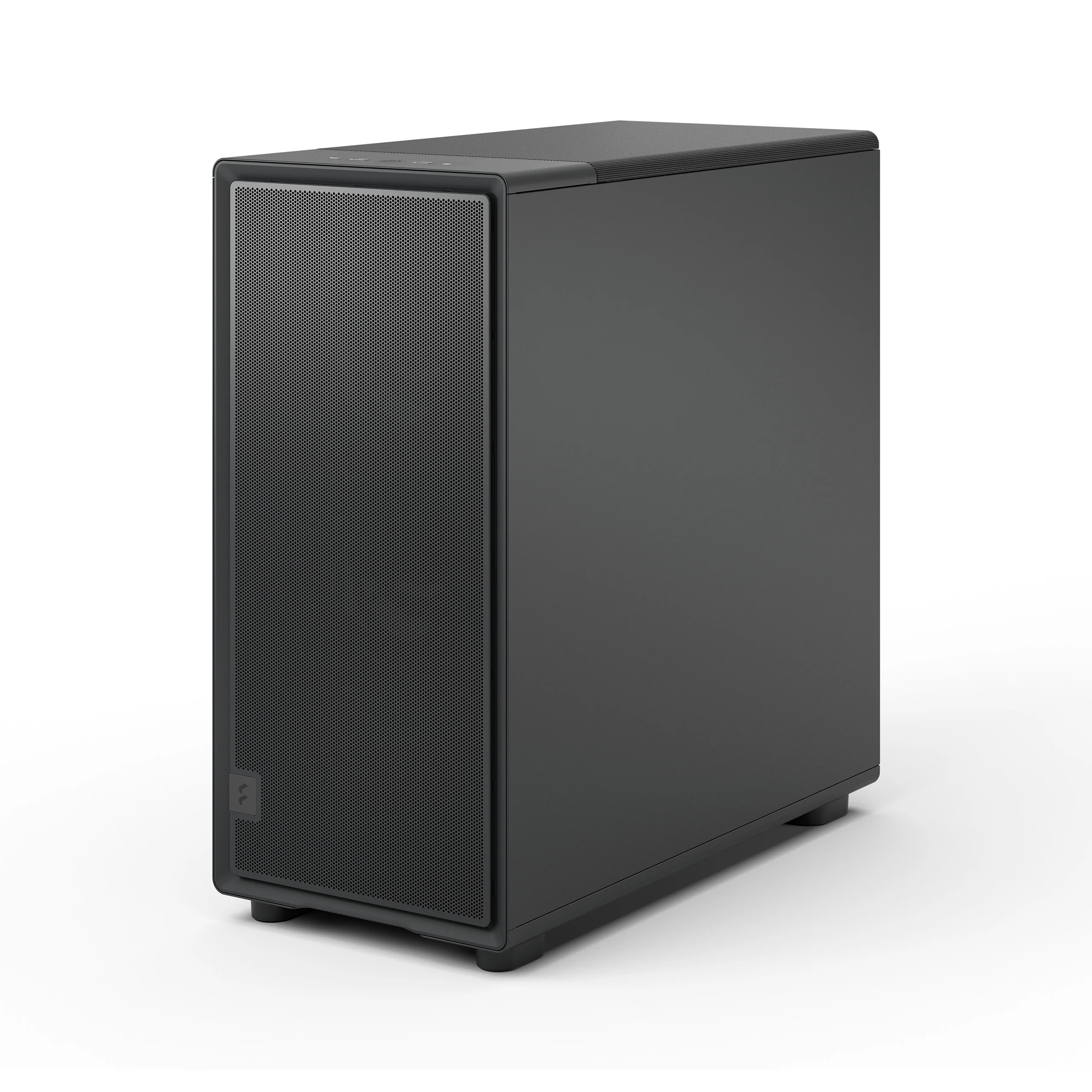

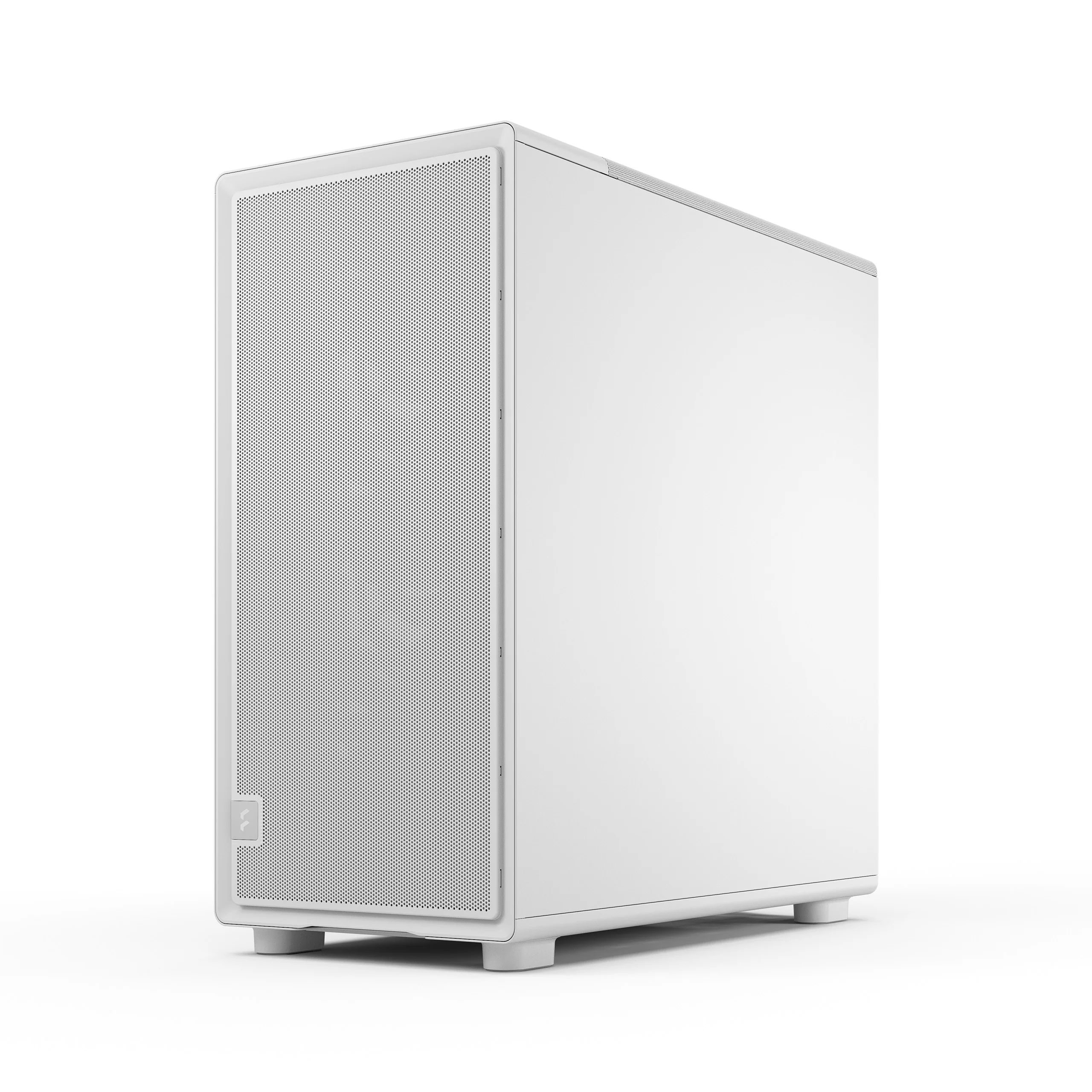

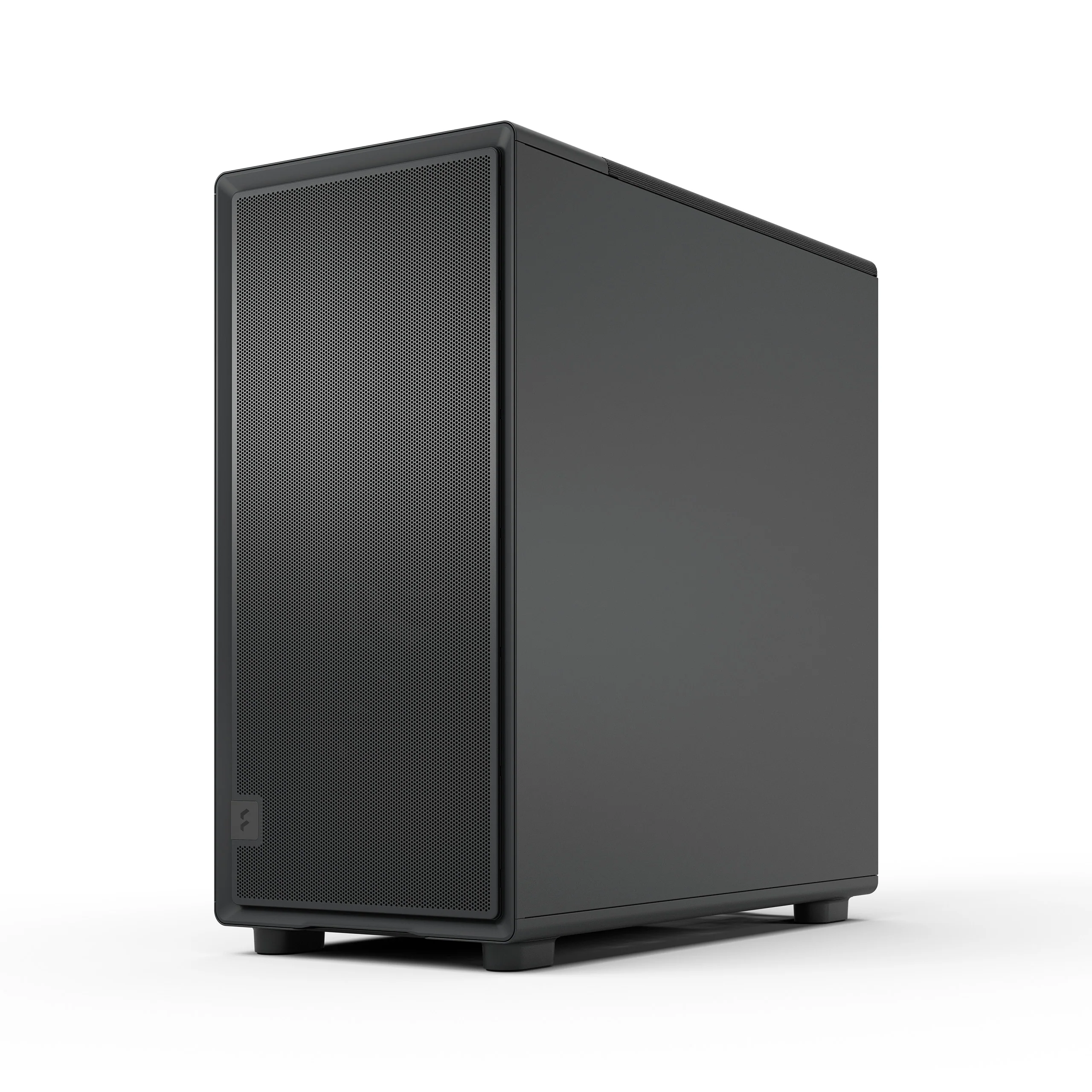

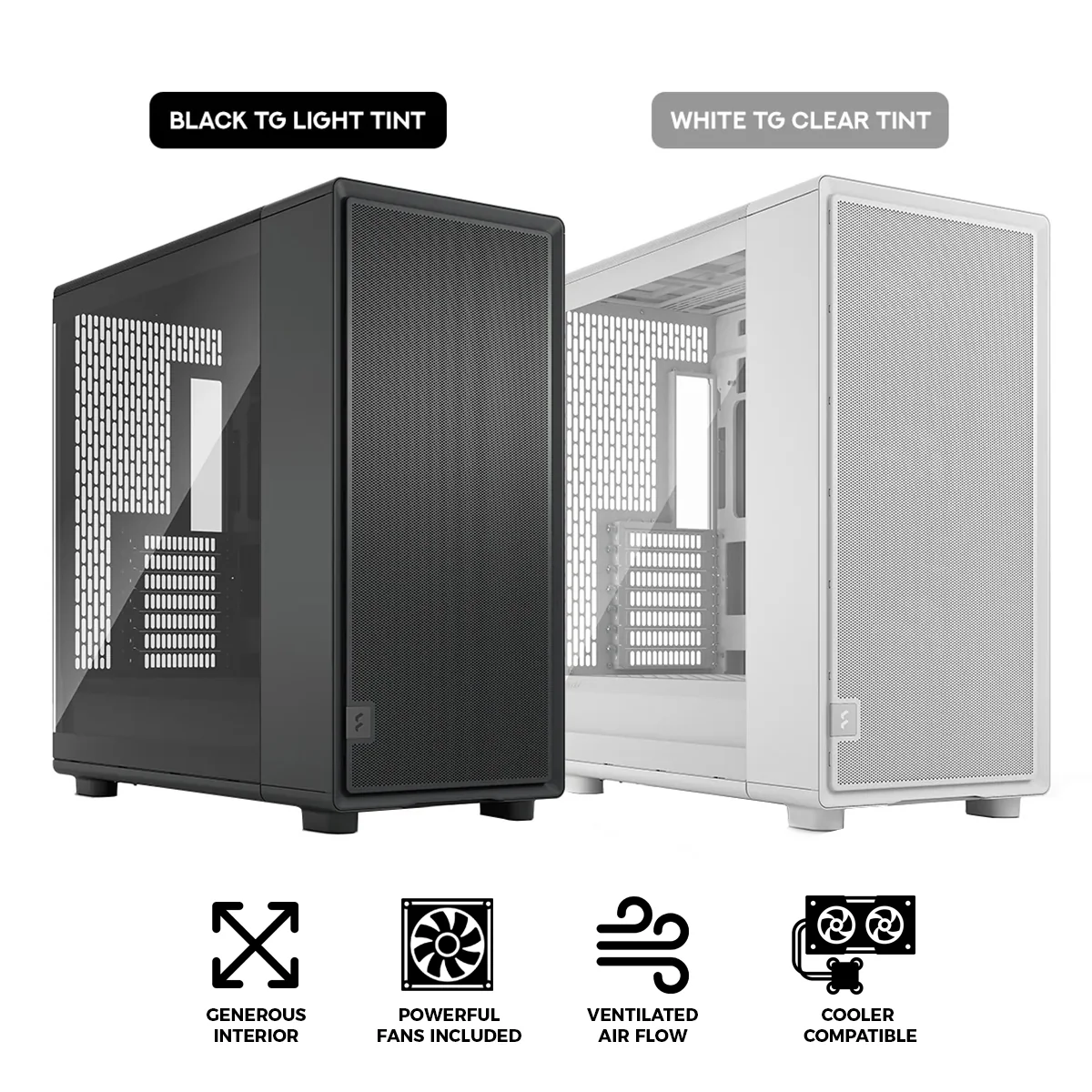

Fractal Design Epoch XL Computer Case (Black TG Light Tint, White TG Clear Tint)
Epoch XL
Epoch XL delivers refined design and powerful airflow in a spacious format. With three Momentum 14 fans, mesh ventilation, and support for reverse-connector motherboards, it offers high-end cooling and versatile compatibility.
Contemporary designIntegrate your setup seamlessly into your gaming station with clean lines, a tidy interior, and refined details such as a laser-etched aluminum badge. |
|
 |

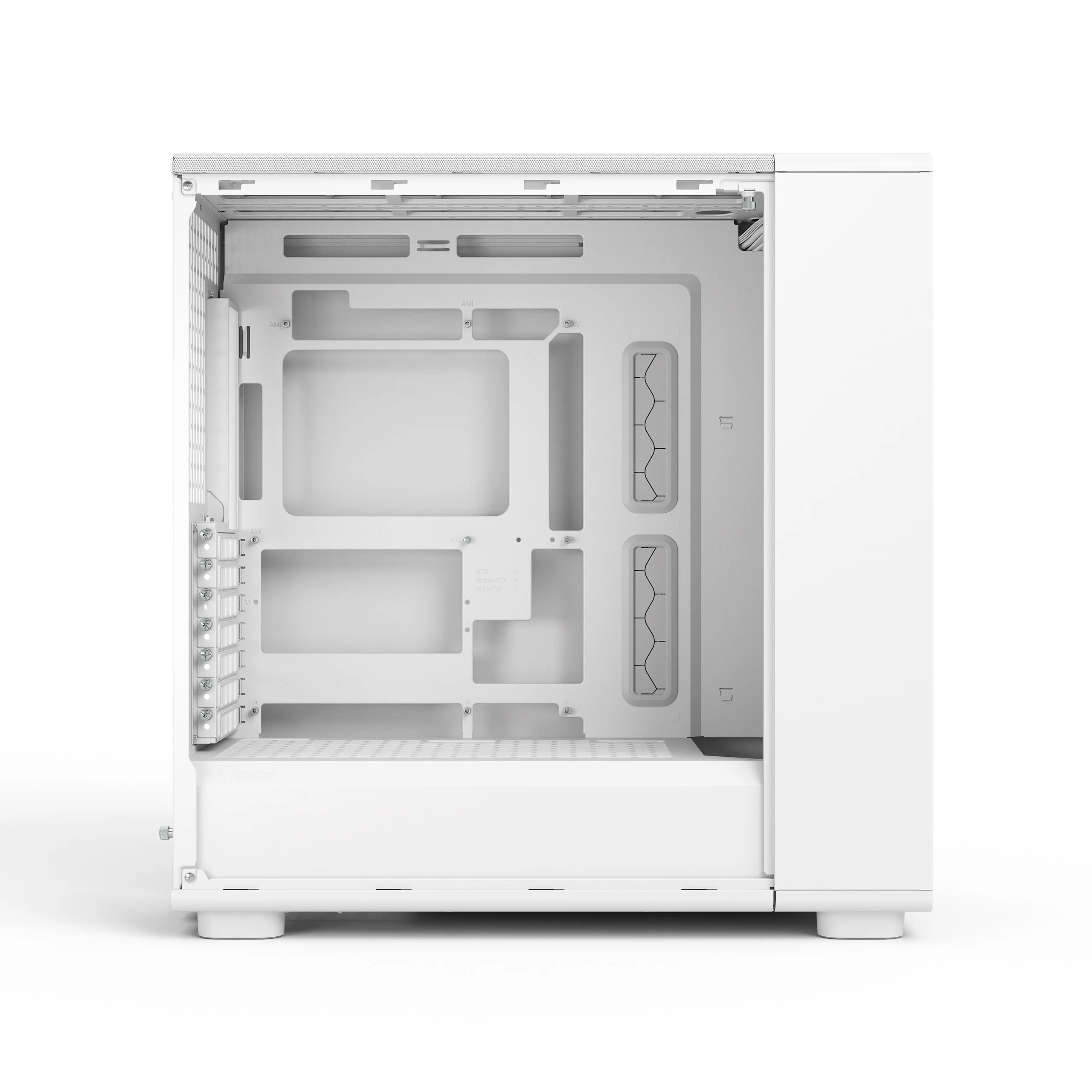

Generous interiorCreate your ideal build with ample space for next-generation components and integrated reverse connector motherboard compatibility. |
Powerful fans includedIncludes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation. |
|
 |

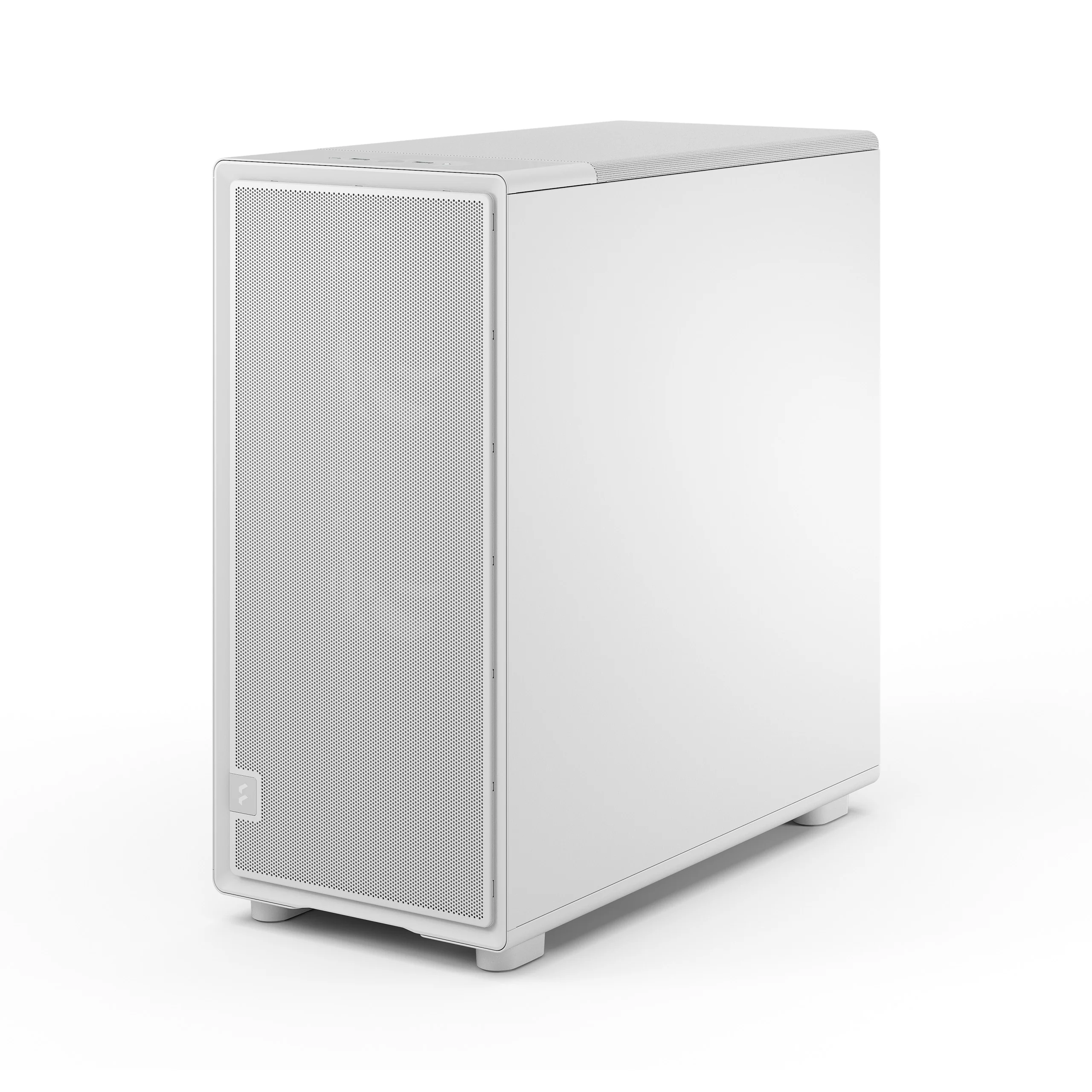

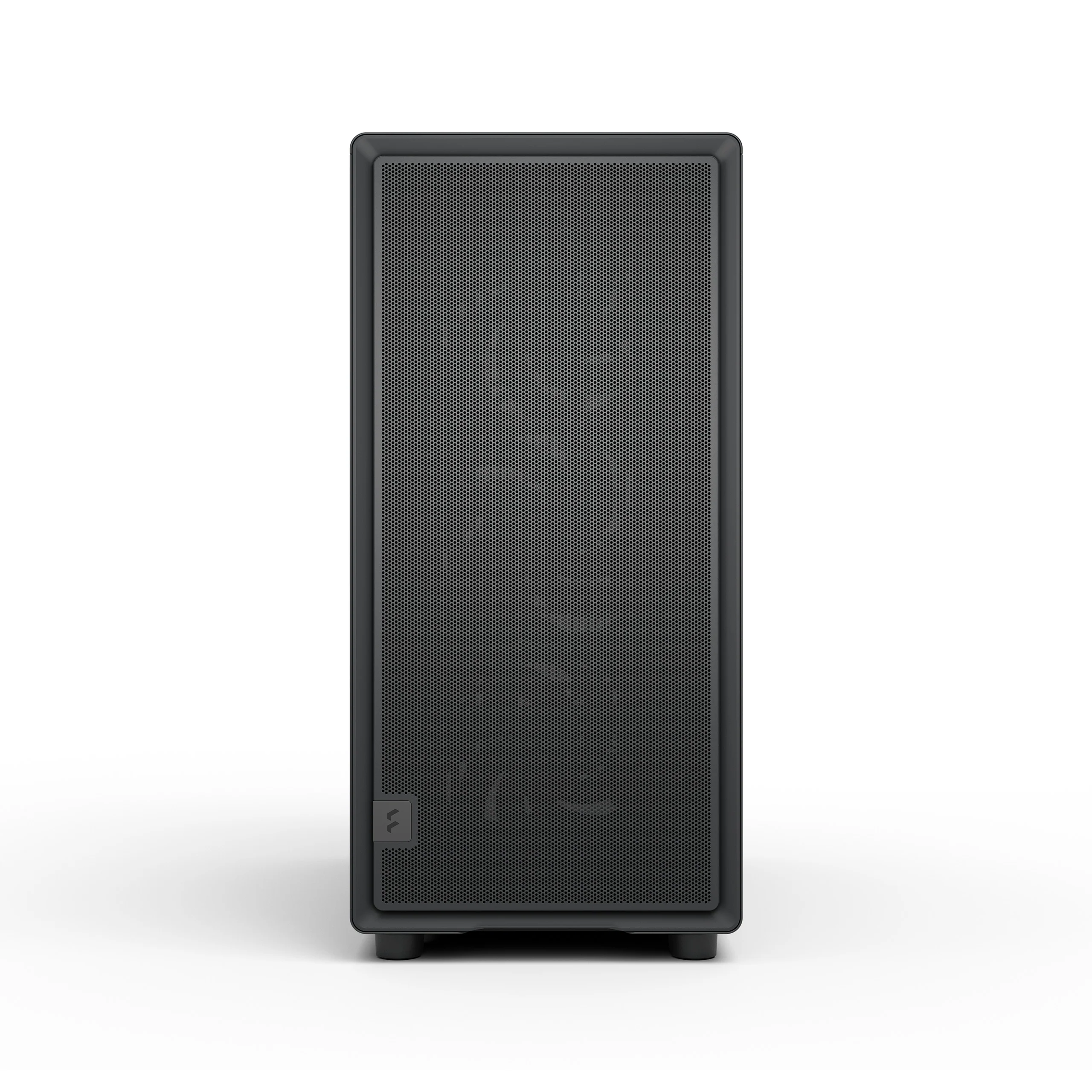

Ventilated airflowKeep your high-performance components running cool with a clean interior layout and ventilated top and front panels for strong natural airflow. |
Ready for gamingCreate a powerful gaming system with space for graphics cards up to 425 mm in length with front-mounted fans, or 395 mm with a front radiator. |
 |
 |
Cooler compatibleCool your build further with compatibility for up to 360 mm radiators in the front and top, with space for a CPU air cooler up to 176 mm in height. |

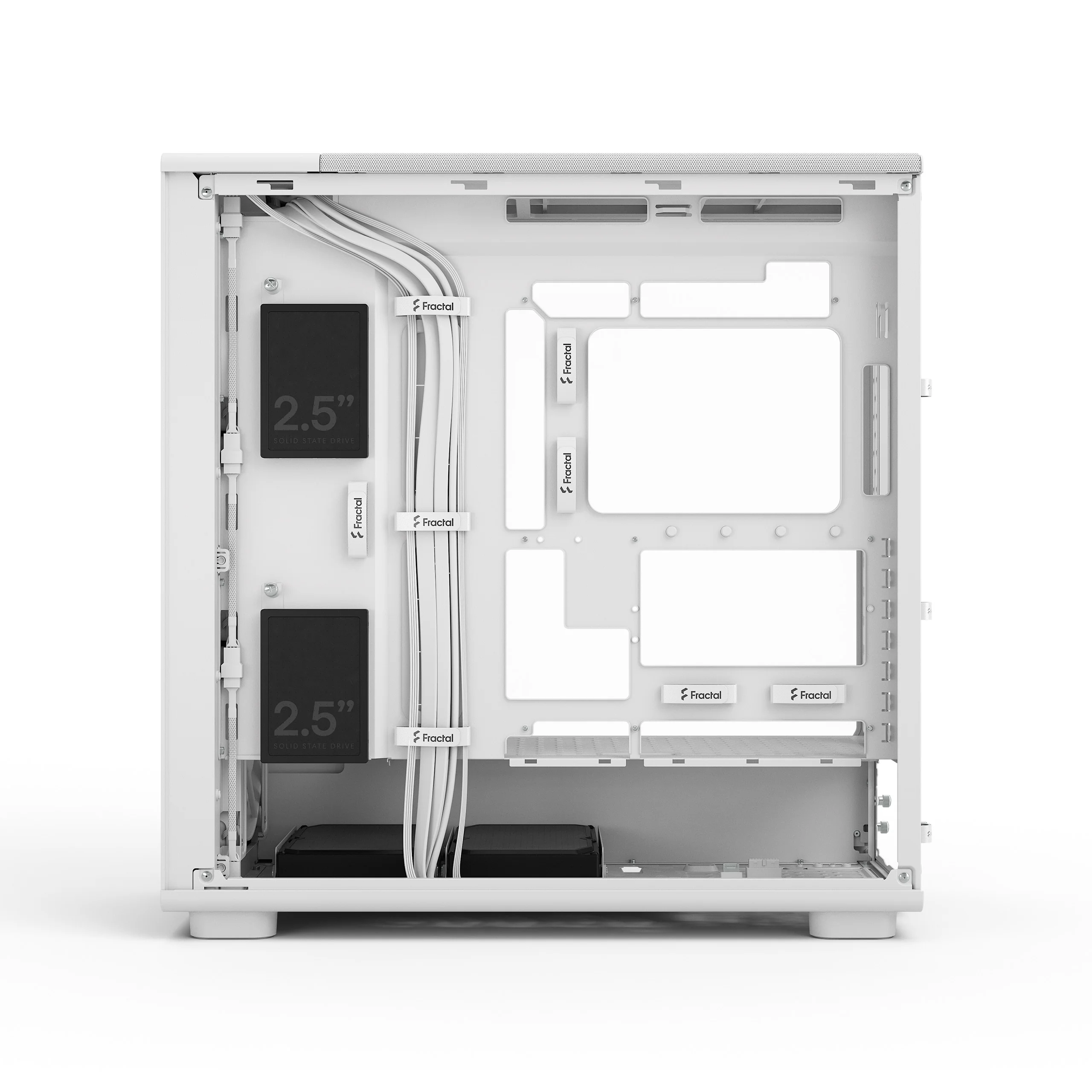

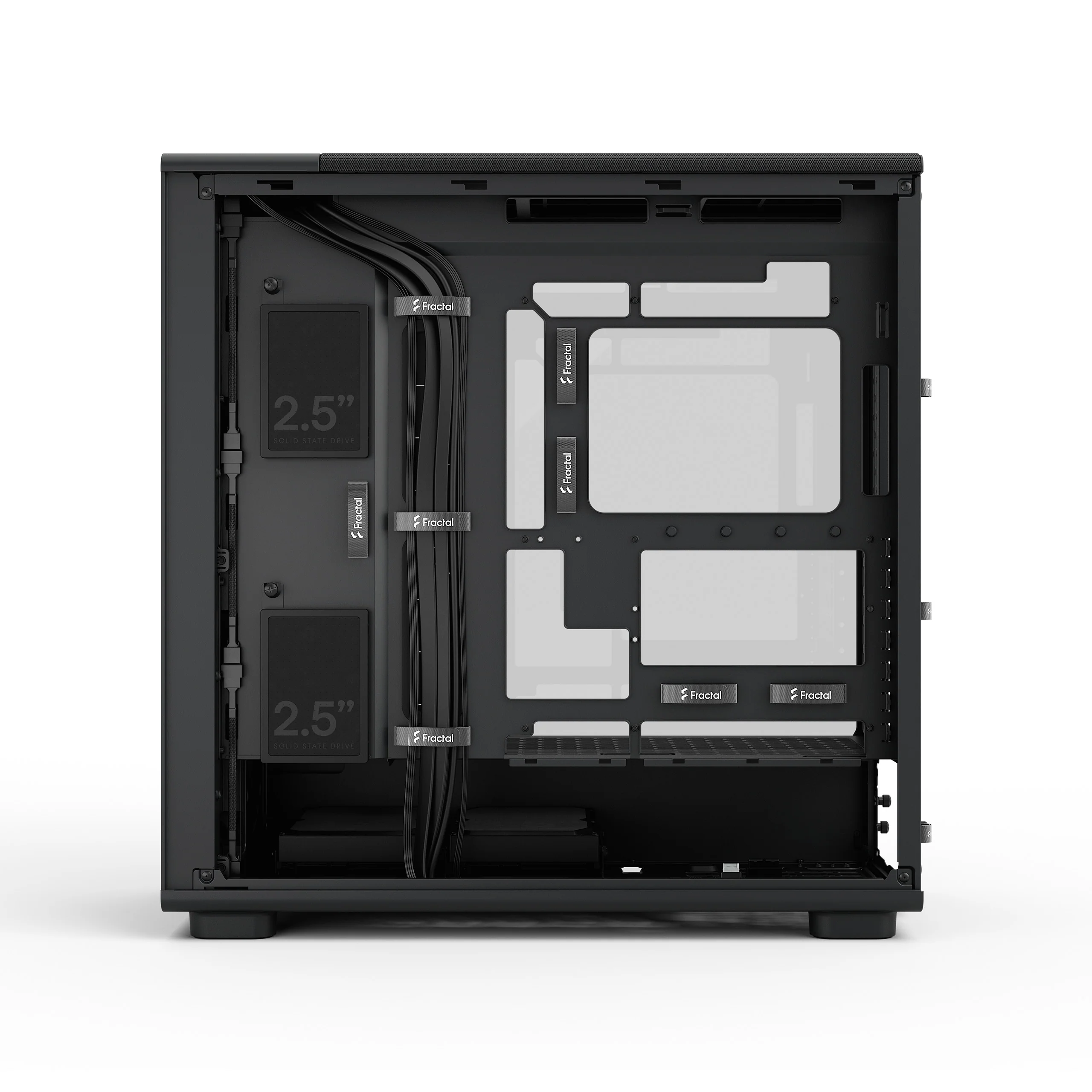

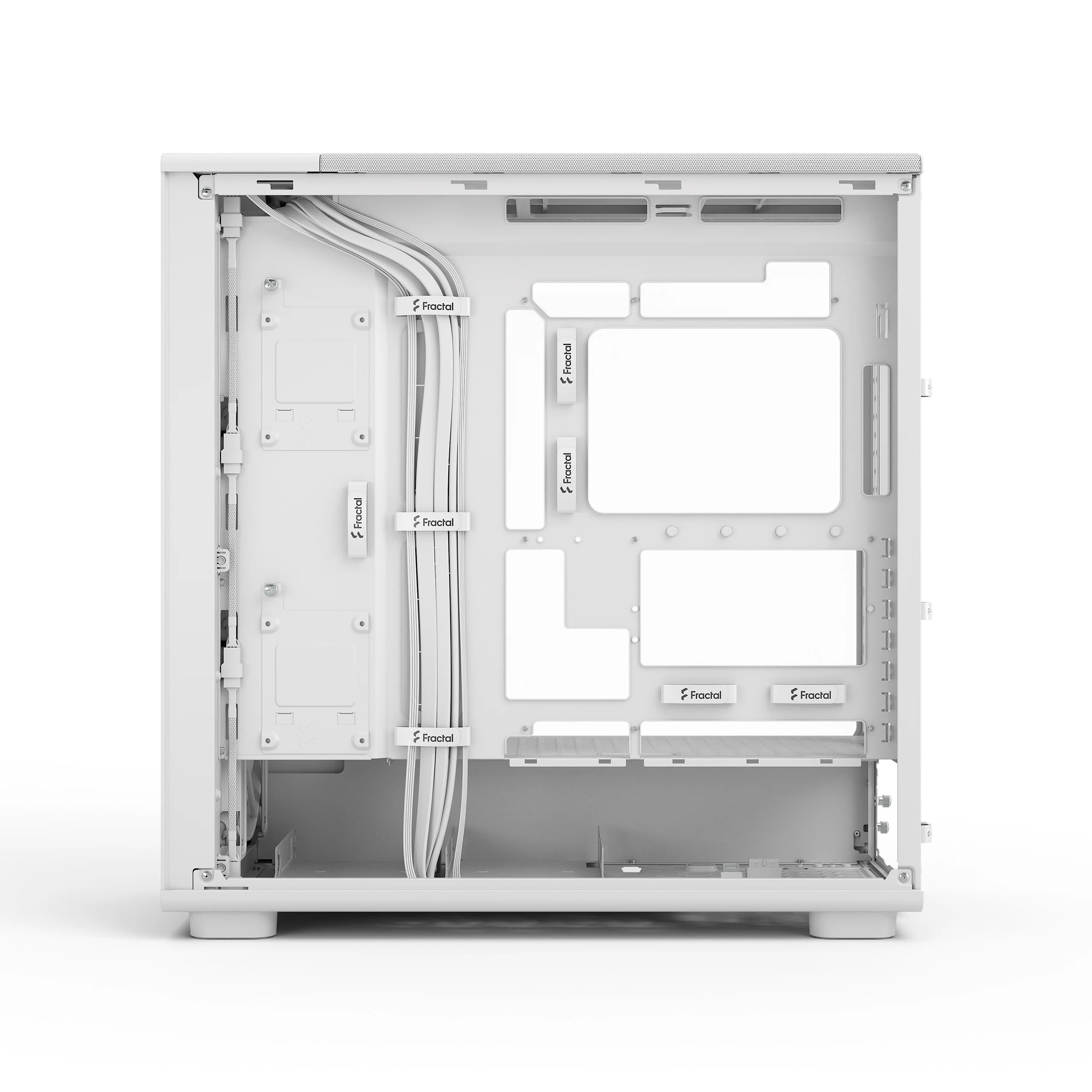

Organized interiorAchieve a neat and tidy look with a clean interior layout, cable routing grommets, and fixed routing straps to help keep your cables organized. |
|
| Specifications | |
|---|---|
| 3.5"/2.5" drive mounts | 2 (2 included) |
| Dedicated 2.5" drive mounts | 2 (2 included) |
| 5.25” drive mounts | - |
| Expansion slots | 7 |
| Front interface | 1x USB Type-C 20 Gbps, 2x USB Type-A 5 Gbps, 1x Audio/Mic Combo Jack |
| Total fan mounts | 7 x 120 mm or 5 x 140 mm |
| Front Fan (Epoch XL) | 3 x 120/140 mm (3 x Momentum 14 included) |
| Top fan | 3 x 120, 2 x 140 or 2 x 180 mm |
| Rear fan | 1 x 120 mm |
| Bottom fan | - |
| Dust filters | PSU |
| Cable routing space | 37 mm |
| Cable routing grommets | Yes |
| Fixed hook-and-loop straps | Yes |
| Tool-less push-to-lock | Top mesh, Front panel, PSU filter |
| Captive thumbscrews | HDD brackets, SSD brackets, Side panels, PSU bracket |
| Left side panel | Steel (Solid version), Tempered Glass (TG & RGB) |
| Right side panel | Steel |
| Compatibility | |
| Power supply type | ATX |
| Motherboard compatibility | Front-facing connectors: E-ATX up to 275 mm/ATX / mATX / ITX; Rear-facing connectors: ATX / mATX |
| PSU max length | 1 HDD Tray: 290 mm max; 2 HDD Tray: 175 mm max |
| GPU max length | 425 mm with front fan mounted / 395 mm with front-mounted radiator |
| CPU cooler max height | 176 mm |
| Front radiator | Up to 280/360 mm |
| Top radiator | Up to 280/360 mm |
| Rear radiator | 1x 120 mm |
| Bottom radiator | - |
| Dimensions | |
| Case dimensions (LxWxH) | 503 x 240 x 509 mm |
| Case dimensions w/o feet/protrusions/screws | 490 x 240 x 490 mm |
| Package dimensions | 602x 353 x 606 mm |
| Net weight | 9.36 kg (Solid), 9.64 kg (TG), 9.75 kg (RGB) |
| Gross weight | 11.22 kg (Solid), 11.50 kg (TG), 11.61 kg (RGB) |
| Other | |
| Package contents | Computer case, Accessory box, Product manual |
| Accessory Box content | PSU screws — 4 pcs., Motherboard screws — 8 pcs., Motherboard standoff — 1 pc., SSD screws —16 pcs., HDD screws — 8 pcs., HDD rubber — 8 pcs., Ball catcher — 1 pc., Zip ties — 4 pcs. |
| Product Code |
Black TG RGB: FD-C-EPO1X-04 White TG Clear: FD-C-EPO1X-03 |
