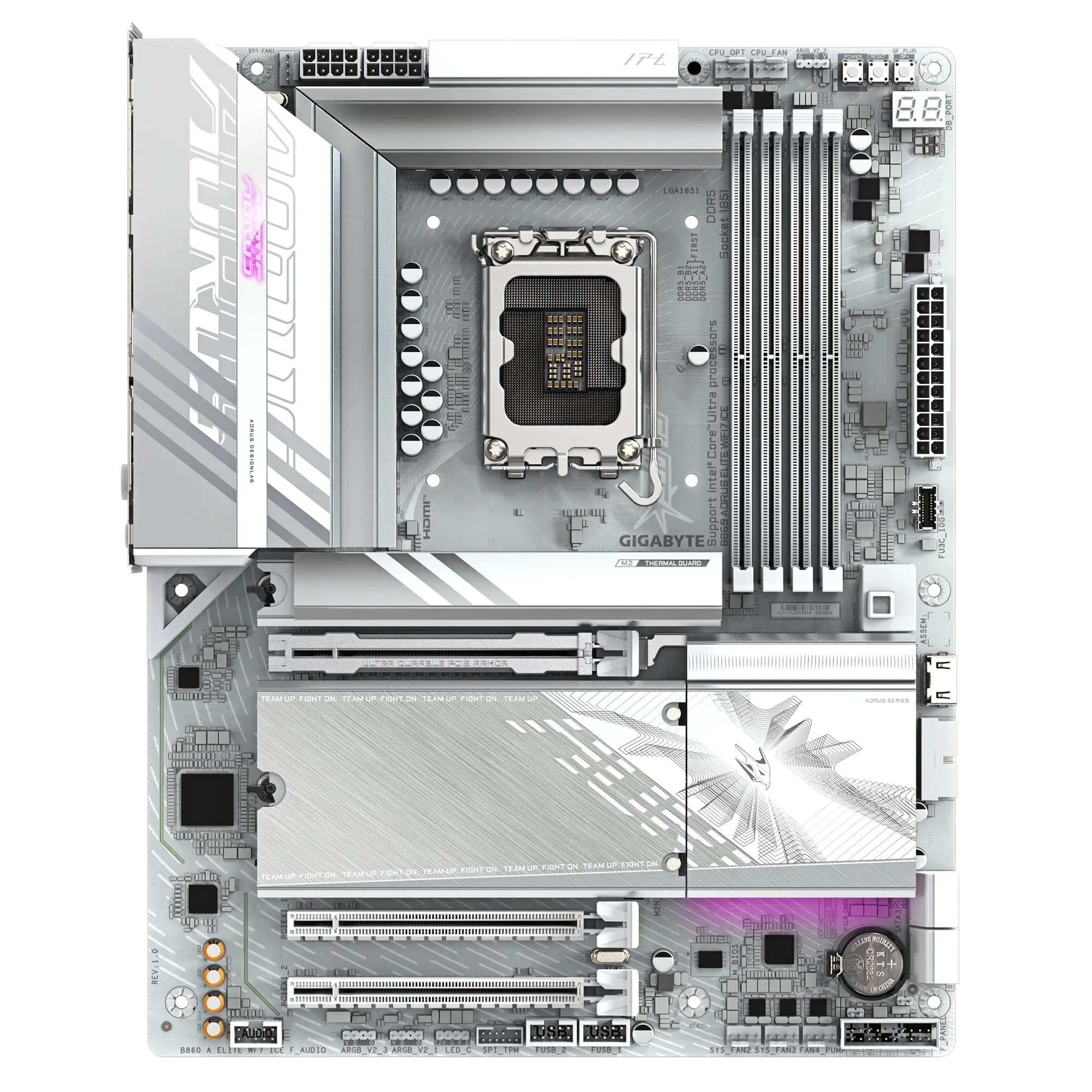

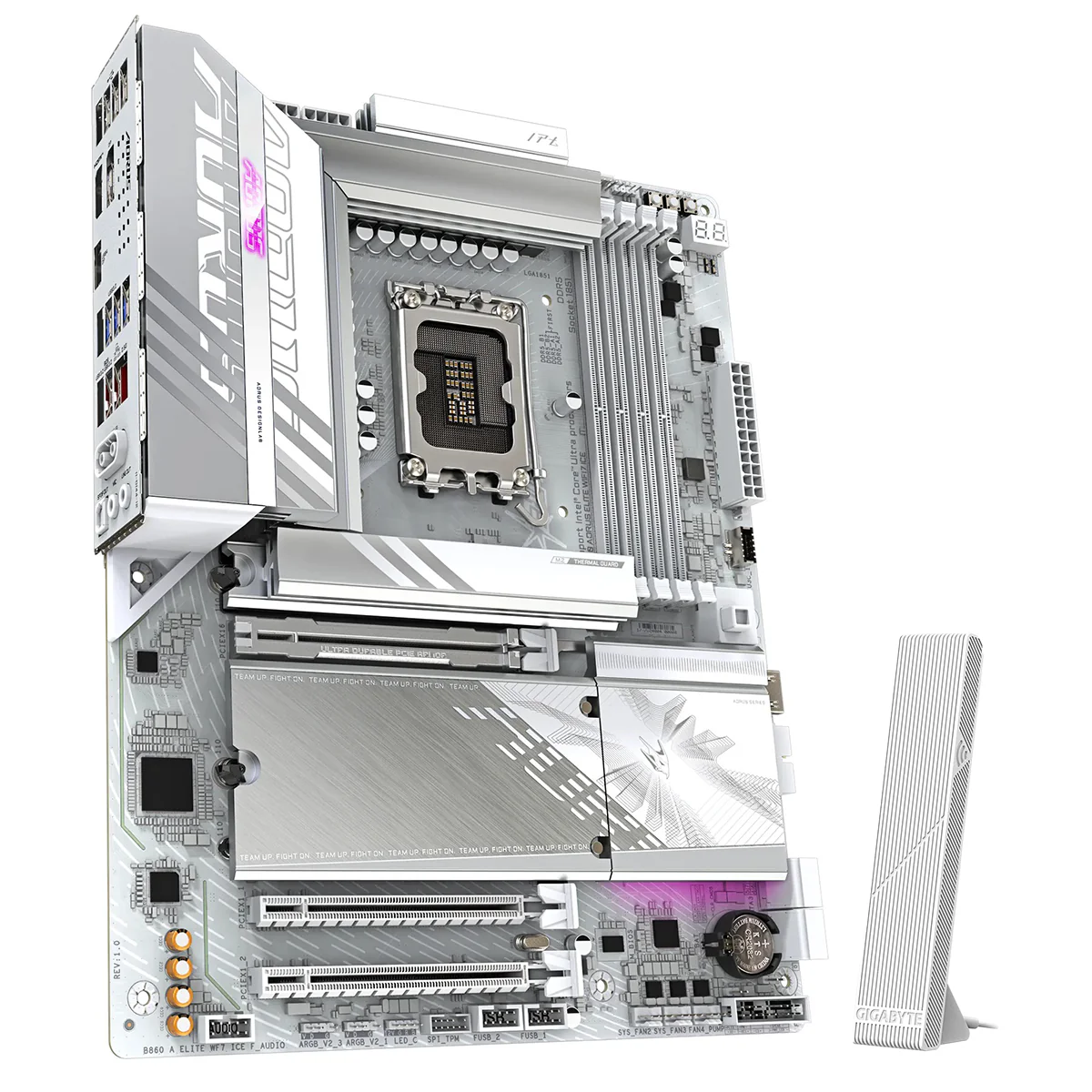

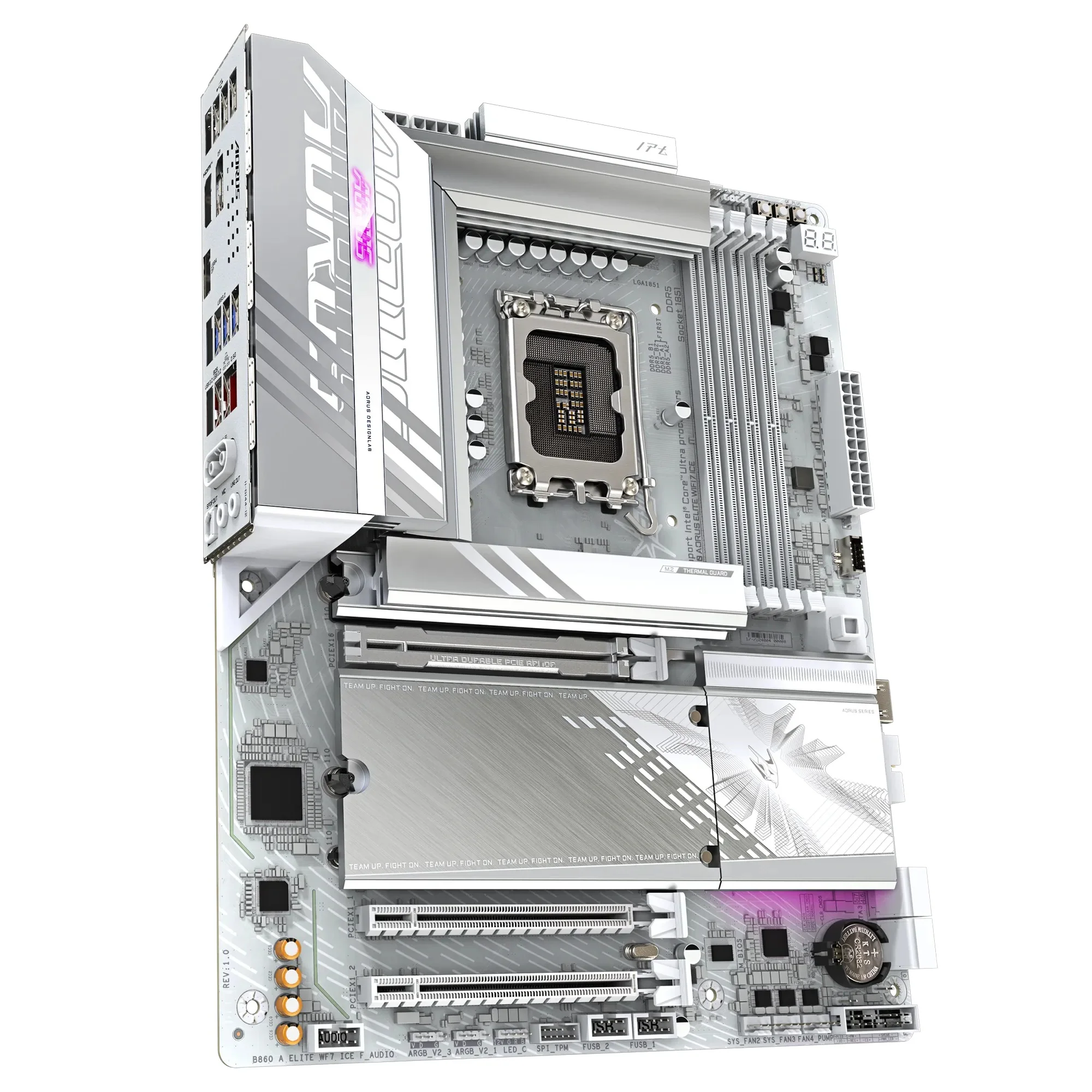

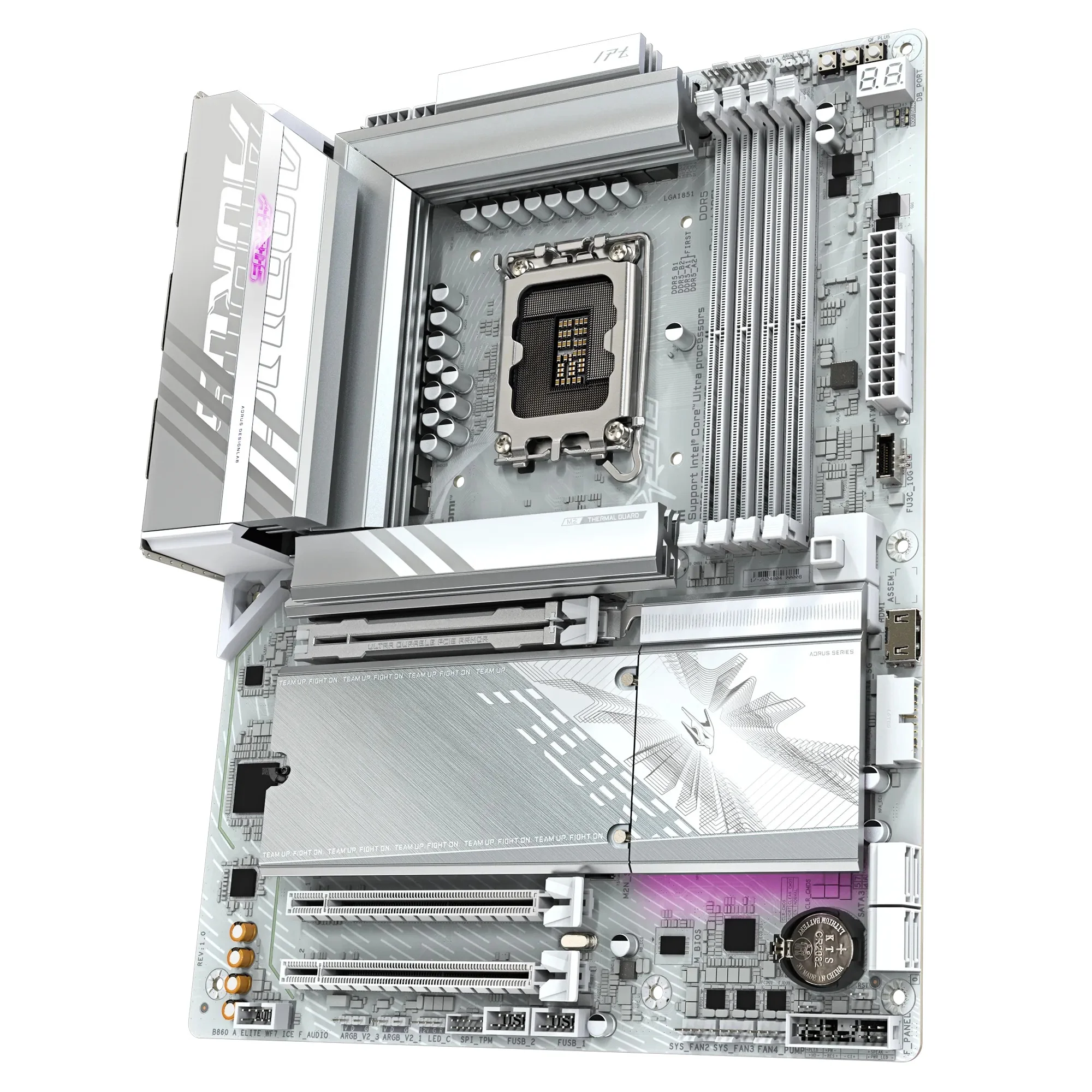

Gigabyte B860 AORUS Elite Wifi7 ICE DDR5 Motherboard
Key Features
- Supports IntelĀ® Coreā¢ Ultra processors (Series 2)
- Digital twinĀ 14+1+2 phases VRM solution
- Dual Channel DDR5Ā : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI PerfdriveĀ : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-PlugĀ : Quick and easy designĀ for Wi-Fi antenna installation
- EZ-Latch PlusĀ : PCIe and M.2Ā slots with Quick Release & Screwless Design
- EZ-Latch ClickĀ : M.2 heatsinks with screwless design
- Sensor Panel LinkĀ : Onboard video port for hassle-free in-chassis panel setup
- Friendly UIĀ : Multi-Theme, AIO FanĀ Control, and Q-Flash Auto ScanĀ inĀ BIOS and SW
- Ultra-Fast StorageĀ : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient ThermalĀ : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

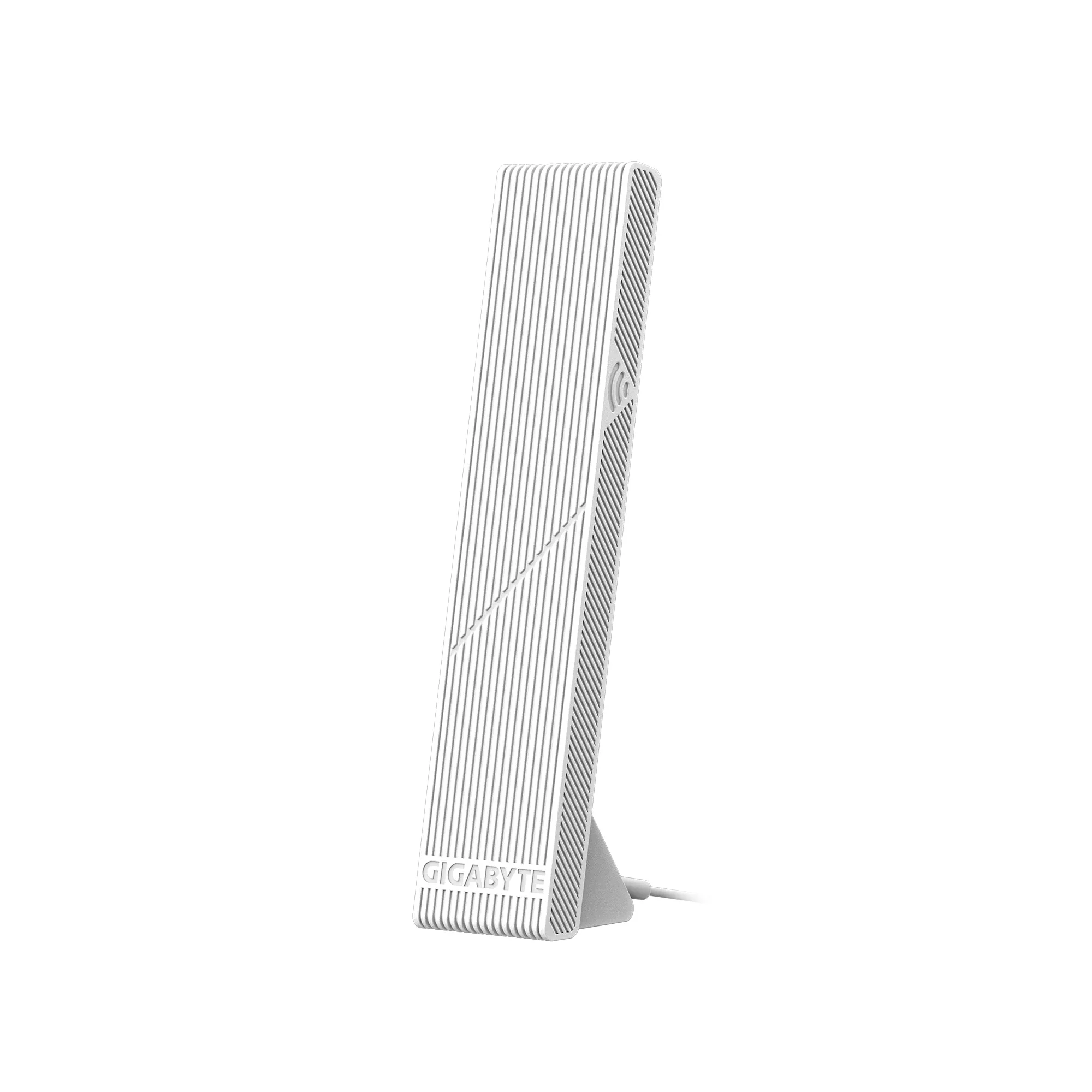

- FastĀ NetworkingĀ : 2.5GbE LANĀ & Wi-Fi 7 withĀ directional Ultra-high gainĀ antenna
- Extended ConnectivityĀ : USB4 Type-C with DP-Alt, HDMI, DisplayPort
Ā
Specifications:
| CPU Support | LGA1851 socket Supports Intel Coreā¢ Ultra Processors L3 cache varies by CPU |
| Chipset | Intel B860 Express Chipset |
| Memory | 4 x DDR5 DIMM, up to 256 GB Up to DDR5-9200 (OC) Dual channel Supports ECC (non-ECC mode) and non-ECC DIMMs XMP support |
| Graphics Outputs | 1 x USB4 Type-C (DP 2.1, 3840x2160@144Hz) 1 x DisplayPort (DP 2.1, 3840x2160@144Hz) 1 x HDMI (2.1, 4096x2160@60Hz) 1 x Front HDMI (1.4, 1920x1080@30Hz) Supports up to quad-display |
| Audio | Realtek Audio CODEC 2/4/5.1/7.1-channel HD Audio S/PDIF Out supported |
| LAN | Realtek 2.5GbE LAN |
| Wireless | Realtek Wi-Fi 7 (RTL8922AE, Rev 1.0) or MediaTek Wi-Fi 7 (MT7925, Rev 1.1) Bluetooth 5.4 Supports 2.4/5/6 GHz bands |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (graphics/NVMe only) Chipset: 2 x PCIe 4.0 x1 |
| Storage | CPU: 1 x M.2 PCIe 5.0 x4/x2 (25110/22110/2580/2280) Chipset: 2 x M.2 PCIe 4.0 x4/x2 (22110/2280) 4 x SATA 6Gb/s RAID 0/1/5/10 (SATA only) |
| USB | Rear: 1 x USB4-C, 2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 4 x USB 2.0 Internal: 1 x USB-C (Gen 2), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers |
| Internal Connectors | 24-pin ATX, 2 x 8-pin ATX 12V 1 x CPU fan, 1 x CPU/Water Pump 3 x system fan, 1 x sys fan/water pump 3 x ARGB Gen2 headers, 1 x RGB header 3 x M.2, 4 x SATA Audio, TPM, HDMI, power/reset/Q-Flash Plus buttons USB-C, USB 3.2, USB 2.0 headers |

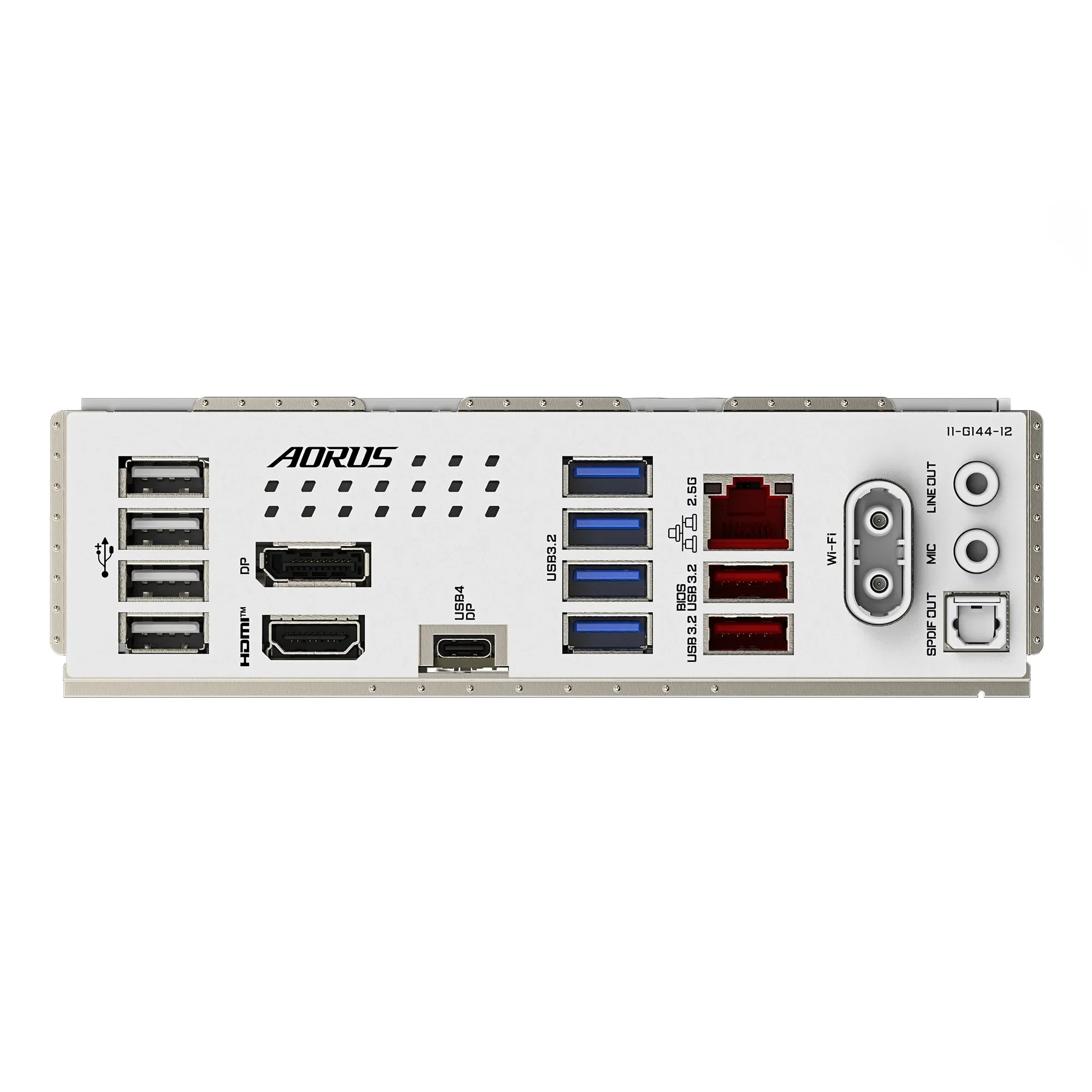

| Back Panel I/O | 1 x USB4-C, 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 4 x USB 2.0 1 x DP, 1 x HDMI 2 x antenna connectors 1 x RJ-45 (2.5GbE) 1 x Optical S/PDIF Out, 2 x audio jacks |
| BIOS | 256 Mbit Flash, AMI UEFI BIOS Q-Flash, Q-Flash Plus, Smart Backup |
| Unique Features | GIGABYTE Control Center support Fan & temperature monitoring Smart Backup |
| Bundled Software | Norton Internet Security (OEM) LAN bandwidth manager |
| OS Support | Windows 11 64-bit only |
| Form Factor | ATX (30.5 x 24.4 cm) |
