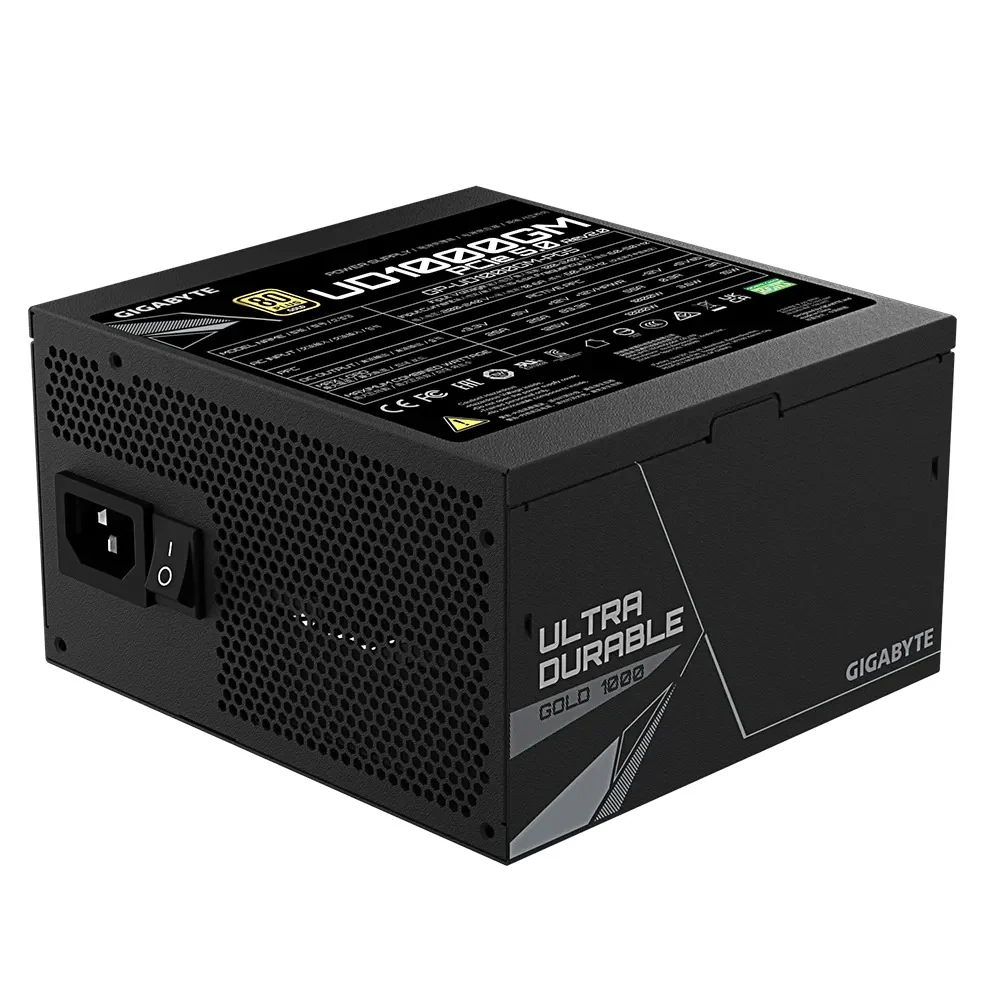

Gigabyte GP-UD1000GM V2 PG5 1000W Gold PCIE 5.0 Modular Power Supply
UD1000GM PG5 (rev. 2.0)
KEY FEATURE
- Ultra Durable
- Ā Main Japanese capacitors
- Ā Enhanced thermal solution
- Ā 120mm smart hydraulic bearing (HYB) fan
- Ā OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold certified
- Fully modular design
- Compact design
Support PCIe Gen 5.0 graphics cards
The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.
Ā
Support Intel ATX 3.0 standard
The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards.
Ā
SPECIFICATIONS:
| Model | GP-UD1000GM PG5 |
| Type | Intel Form Factor ATX 12V v3.0 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | Ā 15-6.5A |
| Input Frequency | Ā 60-50 Hz |
| Output Capacity | 1000W |
| Dimension | Ā 150 x 140 x 86 mm |

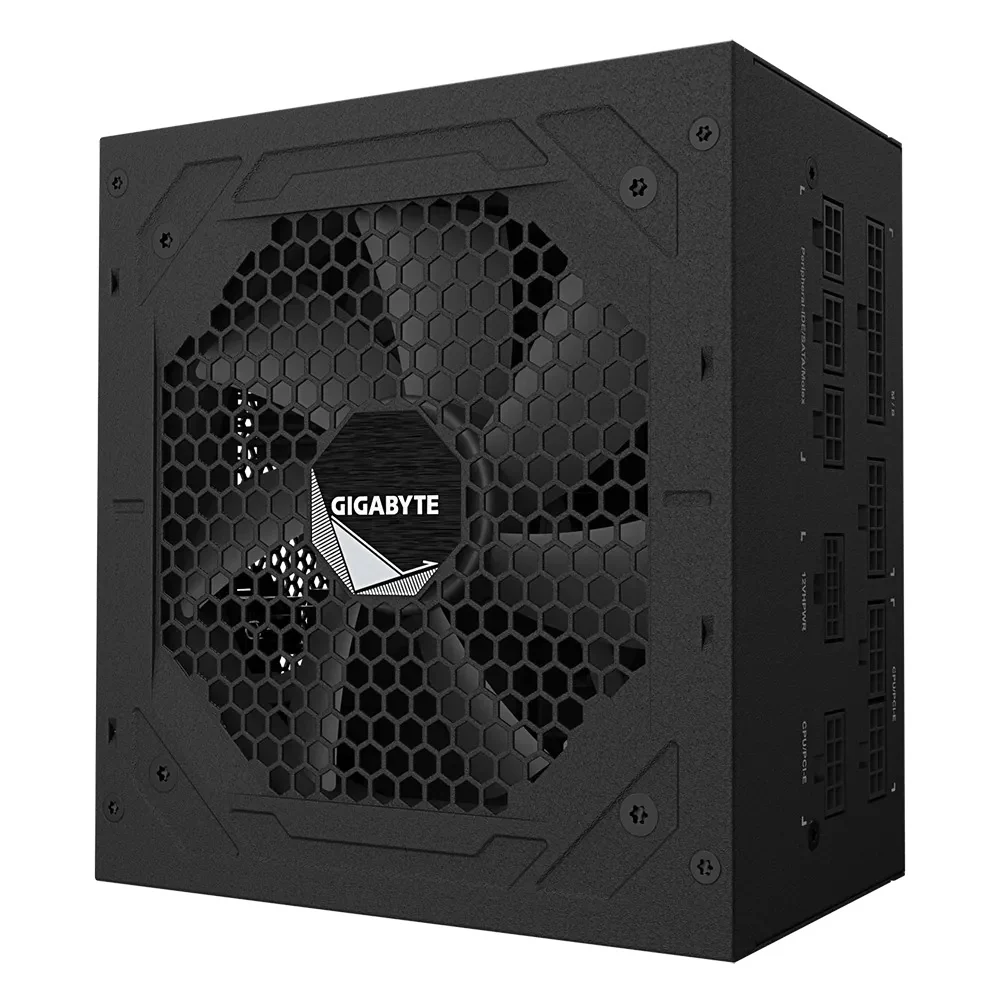

| Fan Type | Ā 120mm Hydraulic Bearing(HYB)fan |
| 80 PLUS | Gold |
| Efficiency | Ā 90% at typical load |
| MTBF | Ā >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | Ā 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Ā Flat, All black |

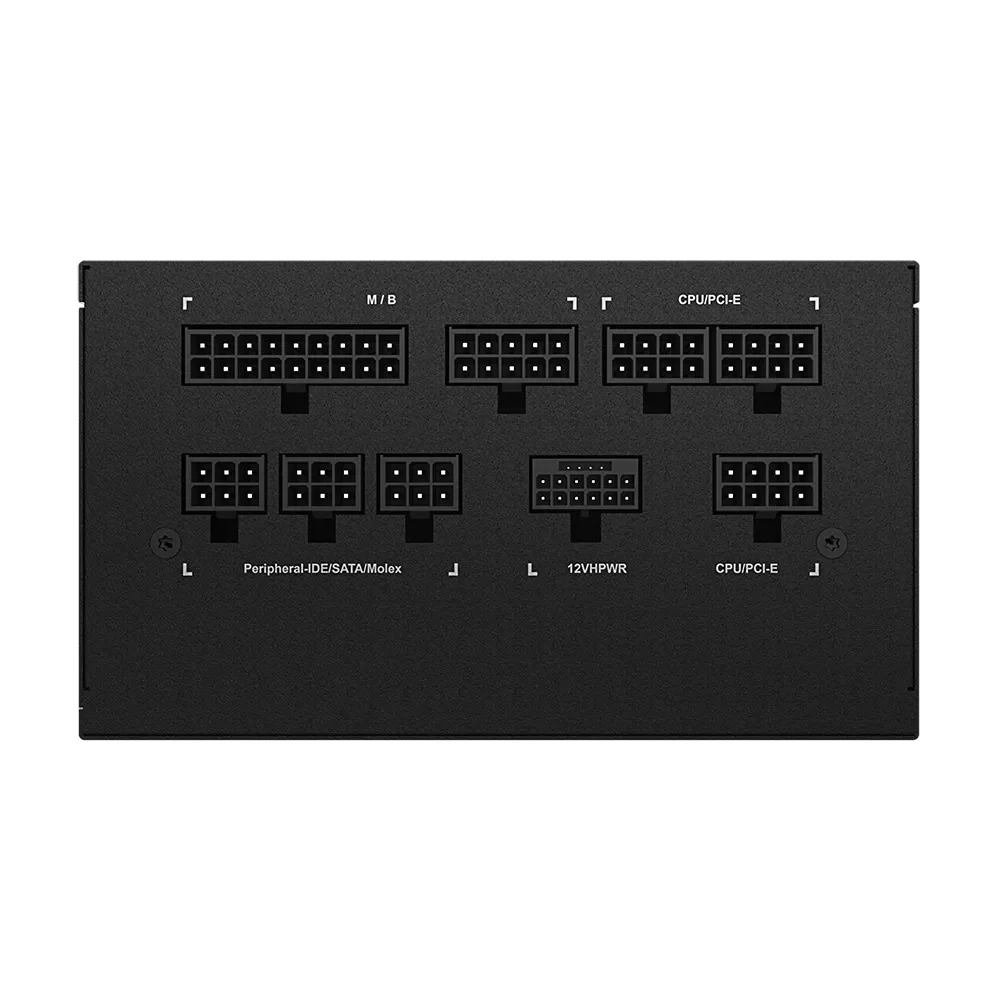

| Connectors | ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1 |
