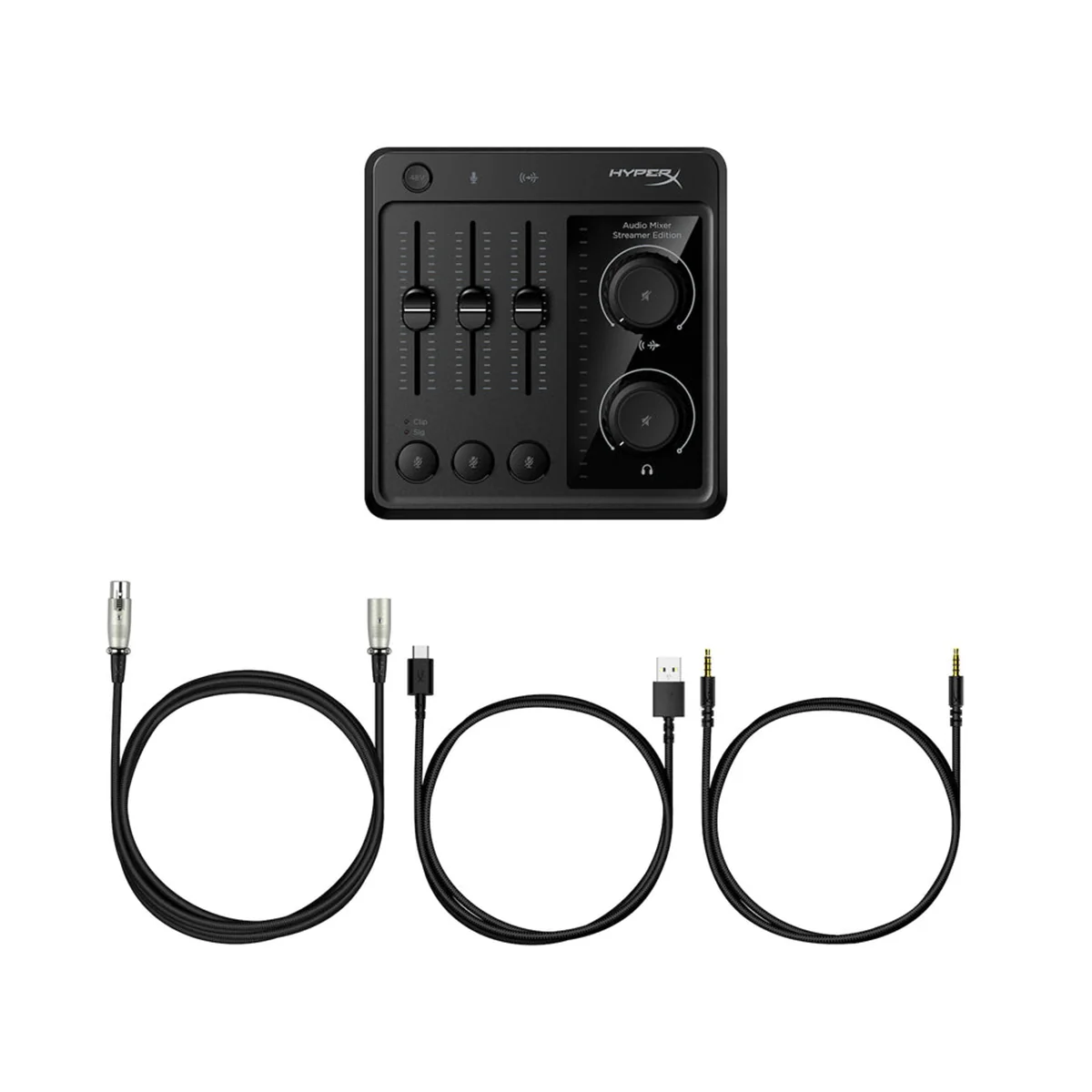

HyperX Audio Mixer (Black) (73C12AA)
Ā Specification
| Microphone input(s): | 1x XLR / Ā¼ā TRS combo jack, 1x 3.5mm |
| USB connection: | USB-C |
| USB specification: | USB 2.0 (high speed) |
| USB audio class: | UAC 2.0 |
| Bit depth(s): | 24-bit, 16-bit |
| Controls: |
Input gain faders: XLR / Ā¼ā TRS microphone, 3.5mm microphone, 3.5mm line input; Input mute buttons: XLR / Ā¼ā TRS microphone, 3.5mm microphone, 3.5mm line input; Output volume knobs: headphone, line output; Output mute buttons: headphone, line output; 48V phantom power button.
|
| Power supply: | 5V, 500mA (USB) |
| System compatibility: | Microsoft Windows 10 (build 1703) and newer, macOS. |
| XLR Microphone Input | |
| Input type: | Balanced, mono |
| Frequency response: | 20Hz - 20kHz |
| Gain range: | 1 - 50dB |
| THD+N: | < 1% (at 1kHz/0dB Gain) |
| Noise: | ā¤-88dBFS (at 0dB Gain, A-weighted) Ā¼ā [6.35mm] TRS Microphone Input |
| Input type: | Balanced, mono |
| Frequency response: | 20Hz - 20kHz |
| Gain range: | 1 - 50dB |
| THD+N: | < 1% (at 1kHz/0dB Gain) |
| Noise: | ā¤-88dBFS (at 0dB Gain, A-weighted) 3.5mm Microphone Input |
| Input type: | Unbalanced, mono. |
| Frequency response: | 20Hz - 20kHz |
| Gain range: | -12dB - 34dB. |
| THD+N: | < 1% (at 1kHz/0dB Gain) |
| Noise: | ā¤-91dBFS (at 0dB Gain, A-weighted). |
| Microphone bias: | 2.7V, 2.2 kĪ©, 500uA 3.5mm Line Input |
| Frequency response: | 20Hz - 20kHz |
| THD+N: | < 1% (at 1kHz/0dB Gain) 3.5mm Headphone Output |
| Frequency response: | 20Hz - 20kHz |
| Maximum output power: | ā„22mW |
| THD+N: | < 1% (at 1kHz/0dBFS, A-weighted) |
| Noise: | ā¤-91dV (A-weighted) |
| SNR: | ā„95dB (at 1kHz/0dBFS, A-weighted) 3.5mm Line Output |
| Frequency response: | 20Hz - 20kHz |
| THD+N: | < 1% (at 1kHz/0dBFS). |
| Noise: | ā¤-95dV (A-weighted). |
| SNR: | ā„95dB (at 1kHz/0dBFS, A-weighted) 3.5mm Line Output |
| Physical Specifications | |
| Length: | 144mm |
| Width: | 140mm |
| Height: | 59mm |
| Cable length(s) and type(s): | 118.1in XLR, 59.05in USB-C to USB-A, 1.2m 4-pole 0.13in audio |
