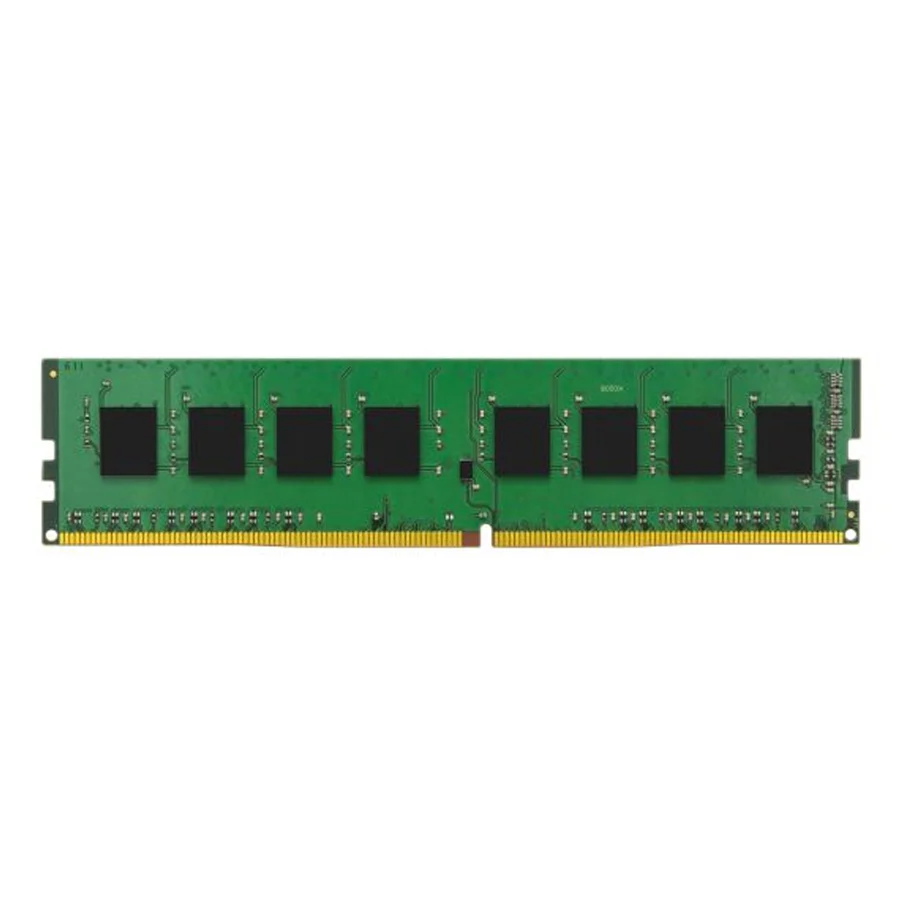

This document describes KVR32N22S8/8, a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) 1Rx8 memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to the JEDEC-standard DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers



Specifications:

Power Supply	VDD = 1.2V Typical
VDDQ	1.2V Typical
VPP	2.5V Typical
VDDSPD	2.2V to 3.6V
On-Die Termination	Nominal and dynamic ODT for data, strobe, and mask signals
LPASR	Low-power auto self refresh
DBI	Data bus inversion for data bus
VREFDQ	On-die generation and calibration
Rank	Single-rank
SPD EEPROM	On-board I2 serial presence-detect
Internal Banks	16 banks; 4 groups of 4 each
Burst	Fixed BC4 and BL8 via MRS
OTF	Selectable BC4 or BL8 on-the-fly
Topology	Fly-by
Bus	Terminated control command and address bus
PCB Height	1.23” (31.25mm)
Compliance	RoHS Compliant and Halogen-Free
