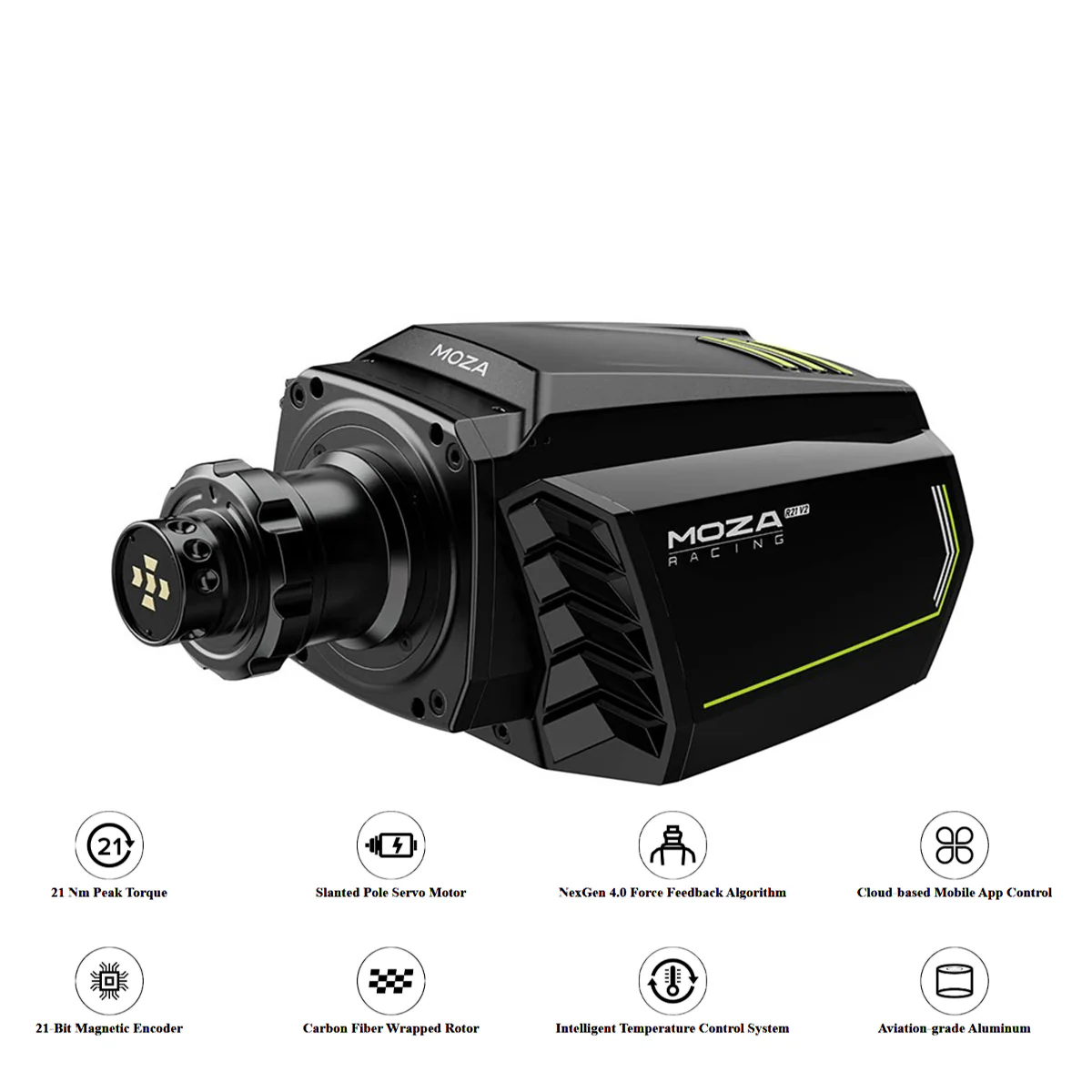

Moza Racing R21 V2 Direct Drive Wheel Base (RS085)
With 21Nm of peak torqueā30% more than similar modelsāthe R21 V2 delivers ultra-precise, immersive racing powered by a carbon-slanted pole servo motor. A triple-staggered rotor design ensures smooth, vibration-free operation, while a 21-bit encoder and 280MHz processor capture every movement with accuracy. Wrapped in a sleek aluminum body and tuned via the MOZA Pit House App, itās built for serious racers.
Ā
Ā
Ā
Specification:
| Platform | PC |
|---|---|
| FFB Drive System | Direct Drive |
| MOZA Pit House Control | Support |
| Max Steering Angle | 90~2700Ā° |
| Housing Material | Aviation Grade Aluminum Alloy |
| Color | Black |
| Peak Power | 360W |
| Input voltage | 110V~220V AC ā>36V DC |
| USB Refresh Rate | 1000Hz |
| V-shaped Struts | Supported |
| Encoder Resolution | 21-Bit Magnetic Encoder with 280MHz High-Performance Processor |
| Indicator | YES |
| App Functions | Supported |
| Quick Release | Supported |
| Connection Ports | Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop |
| Box Contents | R21 V2 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit |
| Mounting Method | Bottom mount |
| Side Mount Option | With optional side/front mount bracket |
| Desk Clamp | Optional |
| Emergency Stop Switch | Optional |
| Online Firmware Upgrade | Applicable |
| Firmware Update | Applicable |
| Dimension (L x W x H)ļ¼mmļ¼ | 327*170*130 |
| Weight | 8.9kg |
