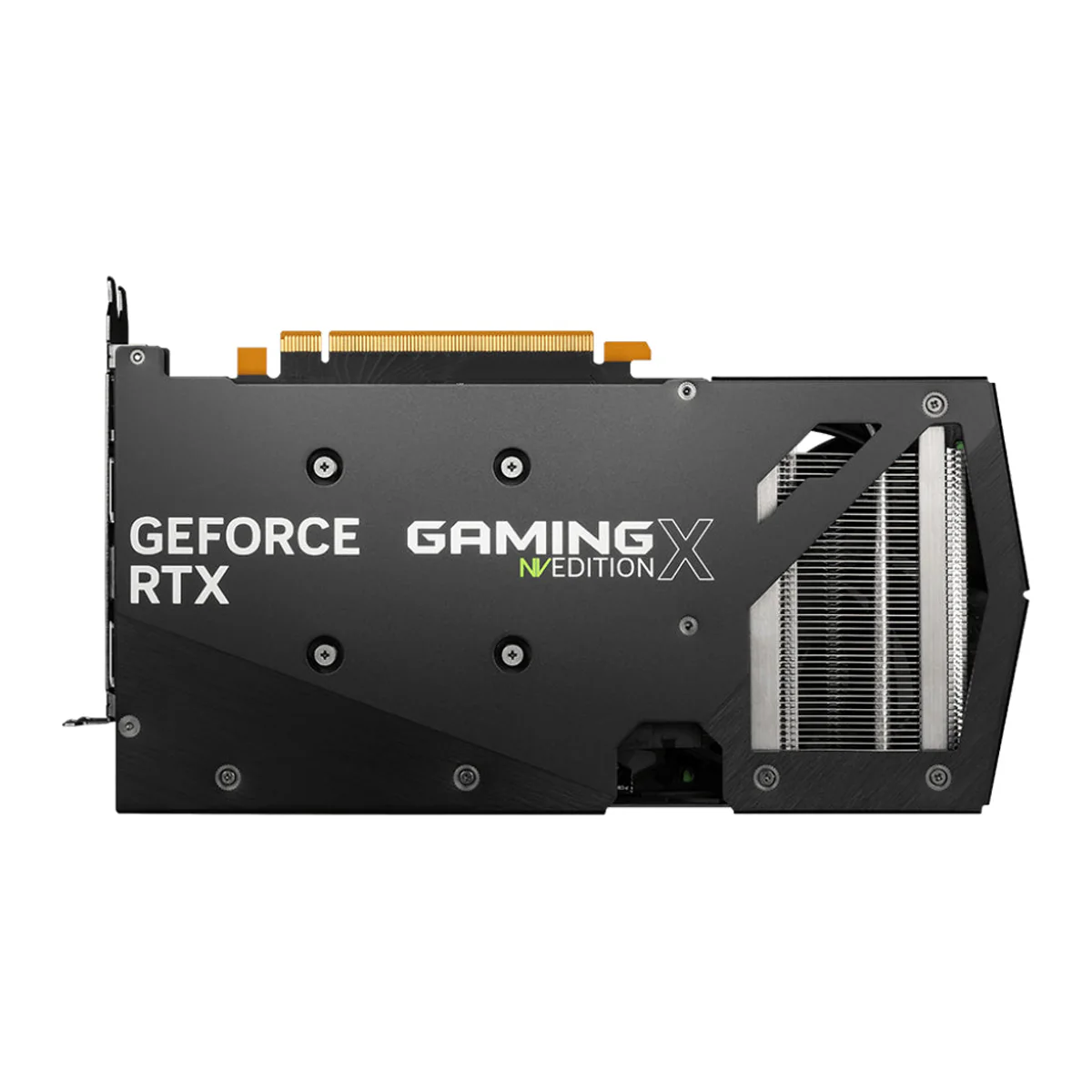

GeForce RTXā¢ 4060 GAMING X NV EDITION 8G
Ā
GAMINGĀ INĀ STYLE
Play with style! GAMING is upgraded with TWIN FROZR 9 to sustain intense performance during gaming and content creation.
A high-speed style matches high-performance capabilities for gamers who want to go all out.
Ā
LIMITED EDITION
COLORWAY
MSI proudly presents the NV Green colorway limited-edition graphics card. This colorway represents our enduring partnership with Nvidia and is a true testament of our friendship and collaboration through the years.
Ā
NOT JUST GREEN IN COLOR
The packaging is designed with environmental impact in mind. In order to be eco-friendly, the packaging is 100% paper-based and free from harmful plastics.*
* In certain regions, for the purpose of product protection, recyclable heat-shrink molds are used for protective outer packaging.
Ā
GeForce RTXā¢ 4060 GAMING X NV EDITION 8G
WITH DLSS 3
Game, stream, create. The GeForce RTXā¢ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2595 MHz / 17 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMIā¢ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMIā¢ 2.1a)
TWIN FROZR 9 Thermal Design
-
TORX Fan 5.0:Ā Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
-
Copper Baseplate:Ā Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
-
Core Pipe:Ā A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
-
Airflow Control:Ā Donāt sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Ā
SPECIFICATIONS
|
MODEL NAME
|
GeForce RTXā¢ 4060 GAMING X NV EDITION 8G |
|
GRAPHICS PROCESSING UNIT
|
NVIDIAĀ® GeForce RTXā¢ 4060 |
|
INTERFACE
|
PCI ExpressĀ® Gen 4 x 8 |
|
CORE CLOCKS
|
Extreme Performance: 2610MHz (MSI Center)
Boost: 2595 MHz
|
|
CUDAĀ® CORES
|
3072 Units |
|
MEMORY SPEED
|
17 Gbps |
|
MEMORY
|
|
|
MEMORY BUS
|
|
|
OUTPUT
|
DisplayPort x 3 (v1.4a)
HDMIā¢ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMIā¢ 2.1a)
|
|
HDCP SUPPORT
|
Yes |
|
POWER CONSUMPTION
|
115 W |
|
POWER CONNECTORS
|
8-pin x 1 |
|
RECOMMENDED PSU
|
550 W |
|
CARD DIMENSION (MM)
|
247 x 130 x 41 mm |
|
WEIGHT (CARD / PACKAGE)
|
627 g / 1055 g |
|
DIRECTX VERSION SUPPORT
|
12 Ultimate |
|
OPENGL VERSION SUPPORT
|
4.6 |
|
MAXIMUM DISPLAYS
|
4.6 |
|
G-SYNCĀ® TECHNOLOGY
|
Y |
|
DIGITAL MAXIMUM RESOLUTION
|
7680 x 4320 |
