The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 6400+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications :

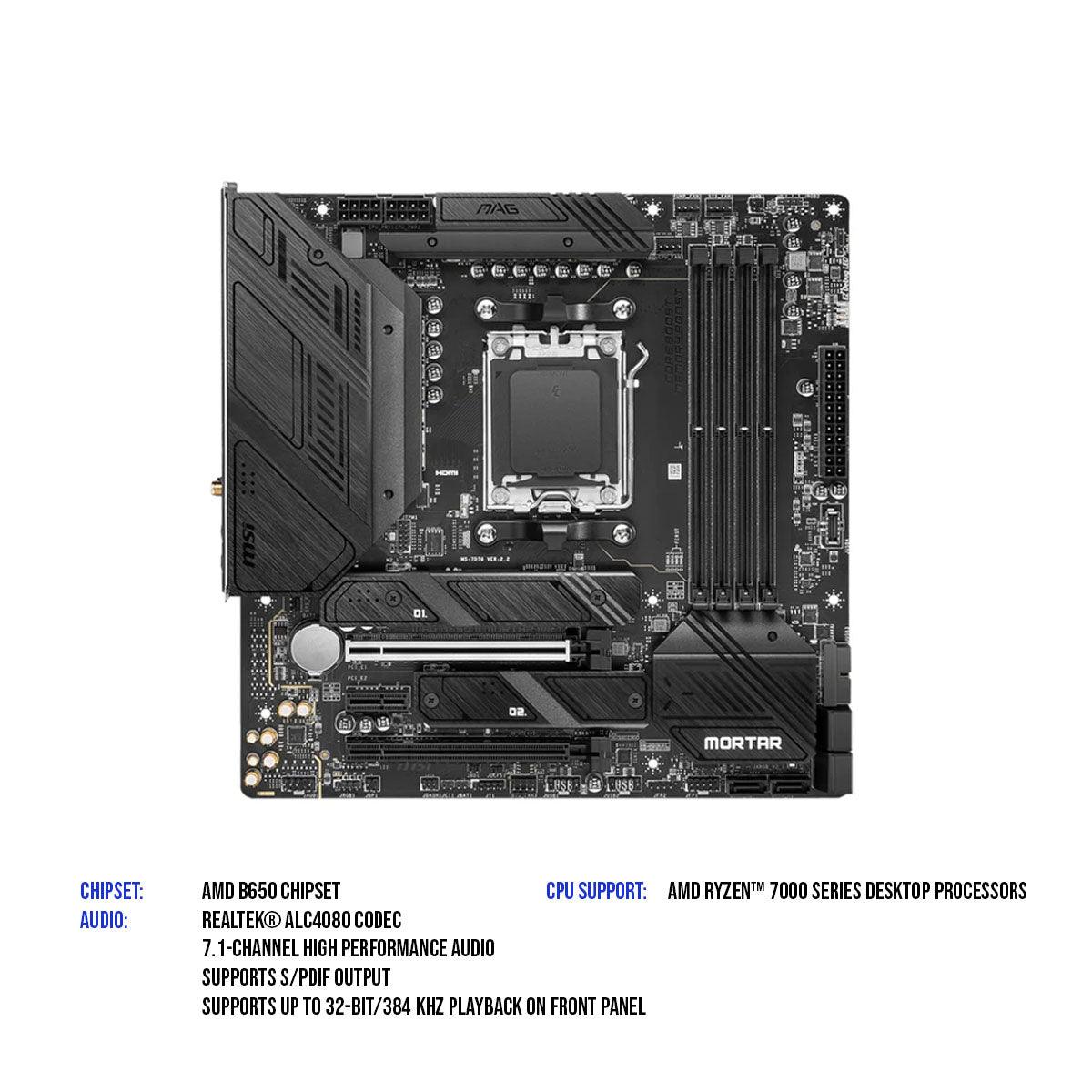

CHIPSET	AMD B650
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
MEMORY	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
ONBOARD GRAPHICS	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. 1x HDMI™ 1x DisplayPort
EXPANSION SLOT	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.

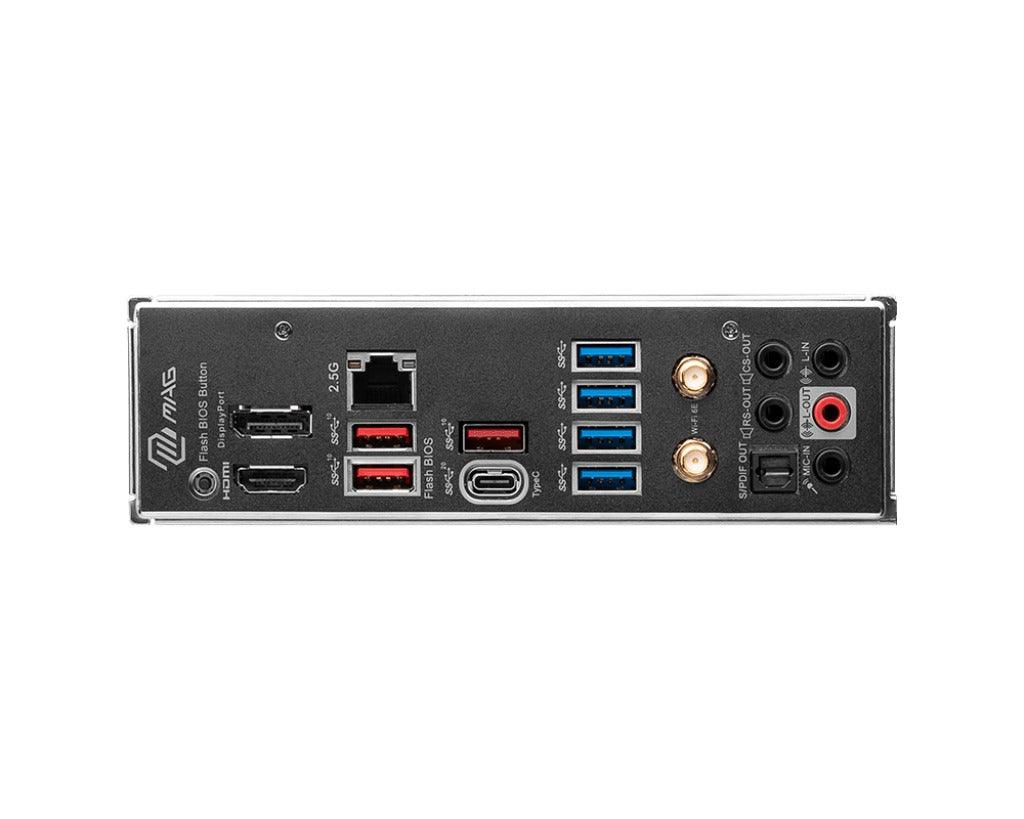

USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO	Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
LED FEATURE	4x EZ Debug LED
