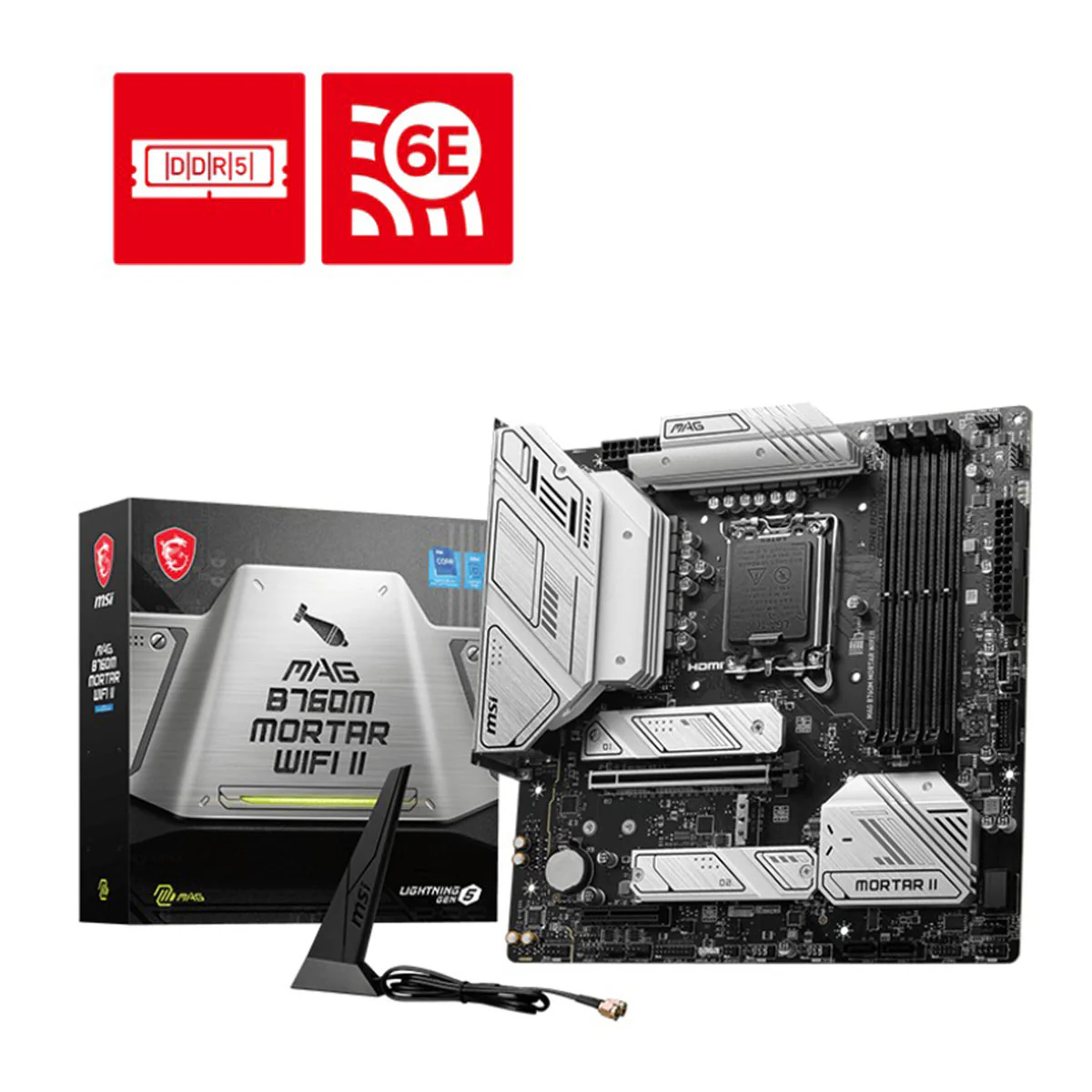

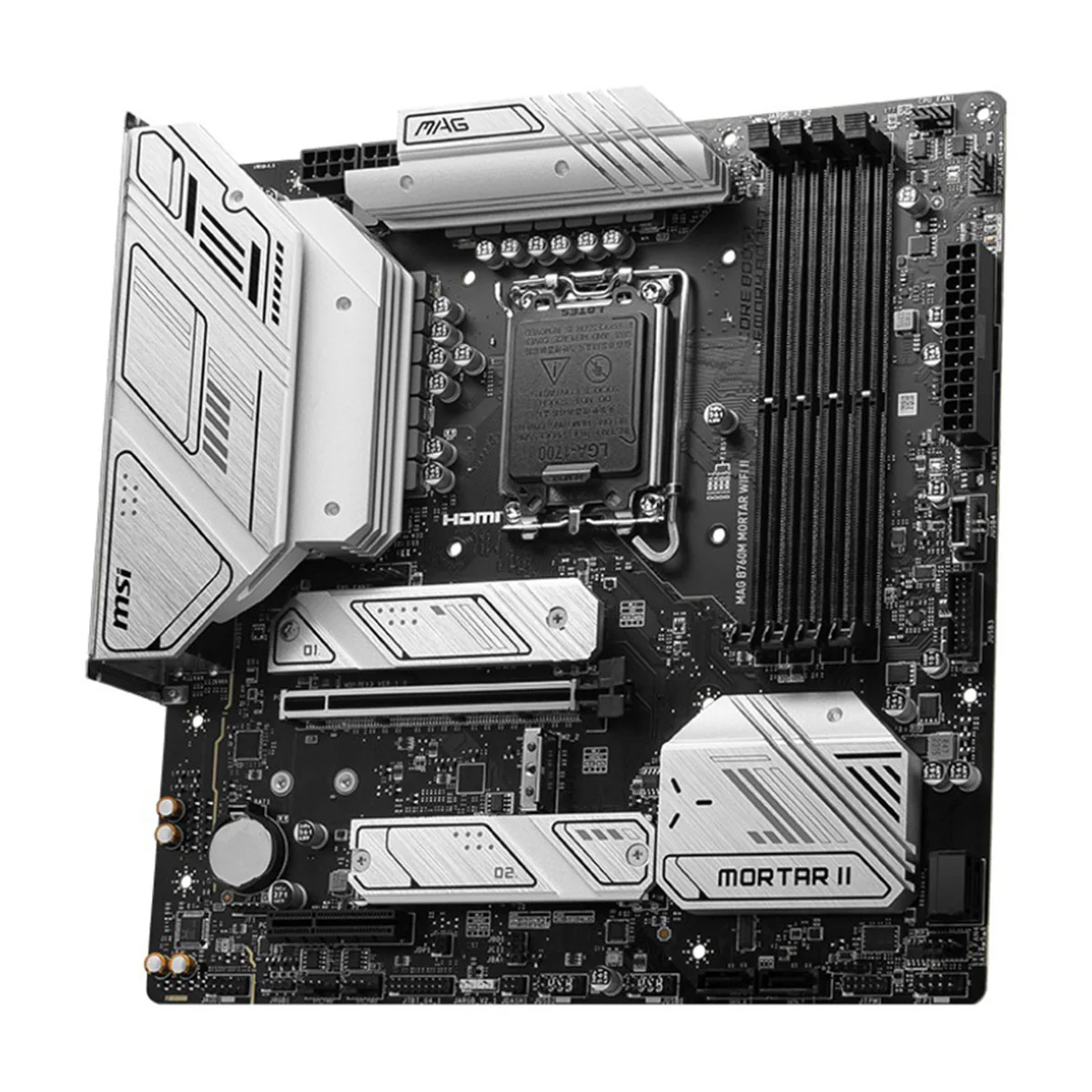

MSI MAG B760M Mortar WiFi II DDR5 Intel Motherboard
MAG B760M MORTAR WIFI II
- Support IntelĀ®Ā Coreā¢ 14th/ 13th/ 12th Gen Processors, IntelĀ®Ā PentiumĀ®Ā Gold and CeleronĀ®Ā Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIeĀ 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2 x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: Reward your ears with studio grade sound
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
SPECIFICATION
| CHIPSET | INTEL B760 |
| CPU | Support IntelĀ® Coreā¢ 14th/ 13th/ 12th Gen Processors, IntelĀ® PentiumĀ® Gold and CeleronĀ® Processors |
| LGA1700 | |
| MEMORY | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| ā¢ 1DPC 1R Max speed up to 7800+ MHz | |
| ā¢ 1DPC 2R Max speed up to 6600+ MHz | |
| ā¢ 2DPC 1R Max speed up to 6400+ MHz | |
| ā¢ 2DPC 2R Max speed up to 5600+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports IntelĀ®Ā Extreme Memory Profile | |
| ONBOARD GRAPHICS | 1x HDMIā¢ |
| Support HDMITMĀ 2.1 with HDR, maximum resolution of 4K 60Hz* | |
| 1x DisplayPort | |
| Support DP 1.4, maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| SLOT | 1x PCI-E x16 slot |
| 1x PCI-E x4 slot | |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) | |
| STORAGE | 3x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices | |
| 4x SATA 6G | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 5Gbps Type A (Front) | |
| 3x USB 10Gbps Type A (Rear) | |
| 1x USB 10Gbps Type C (Front) | |
| 1x USB 20Gbps Type C (Rear) | |
| LAN | RealtekĀ®Ā 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | IntelĀ®Ā Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothĀ®Ā 5.3, FIPS, FISMA | |
| * Wi-Fi 6E 6GHz may depend on every countryās regulations and will be ready in Windows 11. | |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. | |
| AUDIO | RealtekĀ®Ā ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| INTERNAL IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 4x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 1x USB4 card connector (JTBT_U4_1, supports RTD3) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows 11 64-bit, Windows 10 64-bit |
| PCB INFO | mATX |
| 243.84mmx243.84mm |
