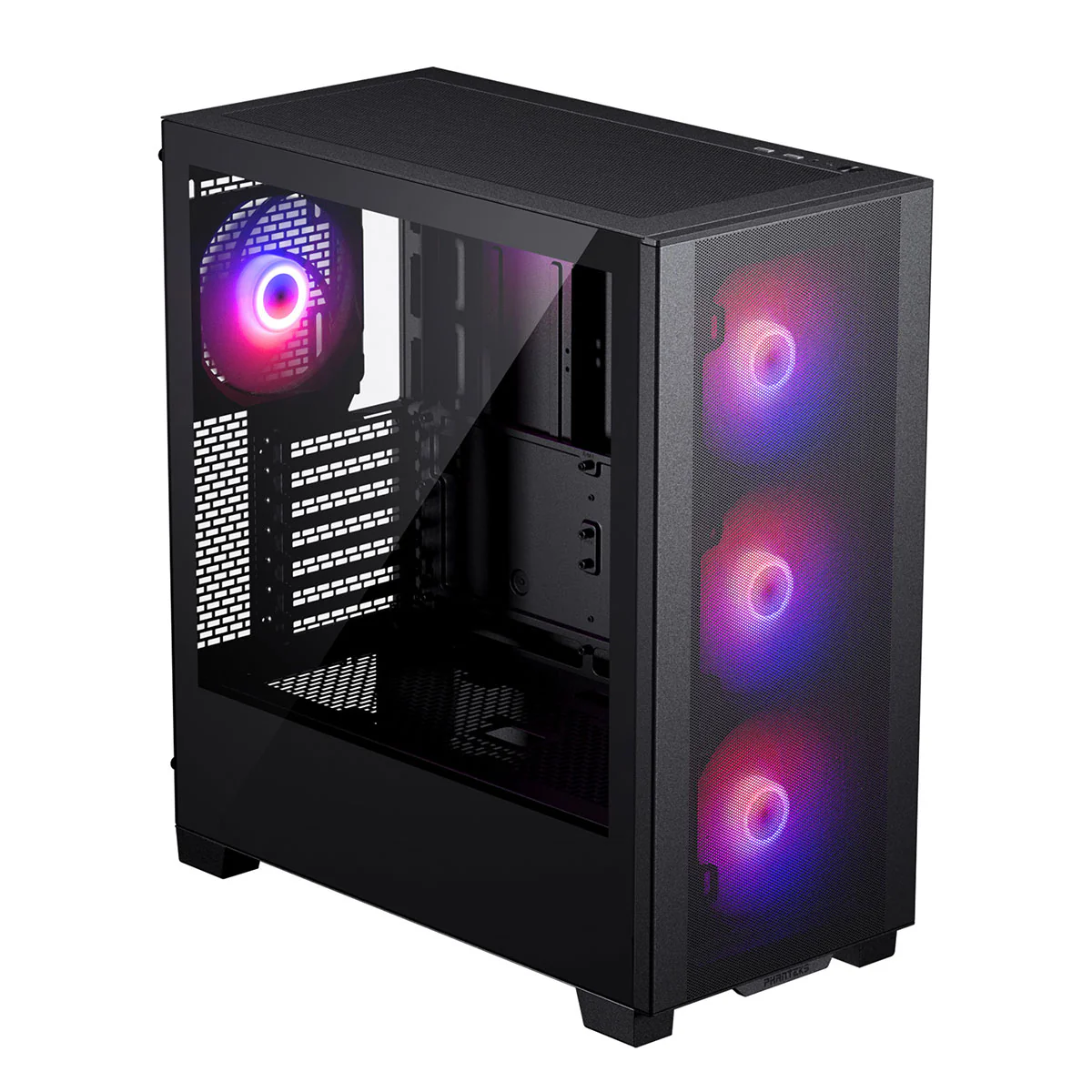

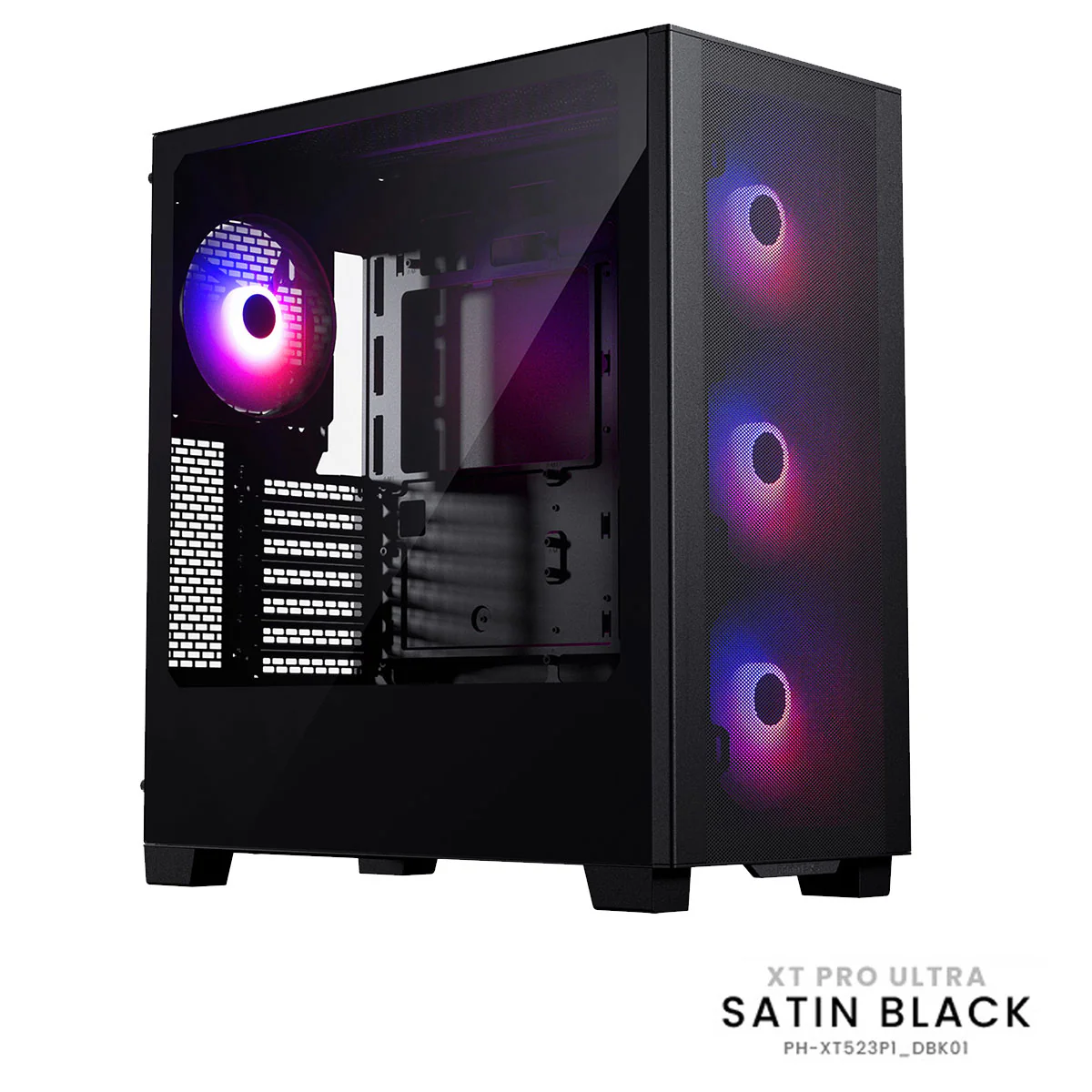

Phanteks XT Pro Ultra Tempered Glass With 4X 140MM RGB Fan PC Case (Black, White)
XT Pro Ultra
Spacious, Powerful & Affordable
With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans, and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provide direct cooling.
Specifications:
| Model No. | PH-XT523P1_DBK01 / PH-XT523P1_DWT01 |
| Case Dimensions | 450 x 230 x 500 mm | 17.7Ć9.05Ć19.68 in |
| Form Factor | Mid-Tower |
| Mainboard Support | E-ATX* | ATX | Micro-ATX | Mini-ITX (*Up to 280mm wide) |
| Rear Mainboard Support | MSI Project Zero | ASUS BTF | Gigabyte Project Stealth |
| Materials | Steel chassis | Tempered glass | ABS plastic |
| Side Window | Yes |
| PCI Slots | 7 |
| Vertical GPU Support | 3-slots (Riser Cable sold separately) |
| Internal 2.5ā³ Bay | 5 (+ 1x 3.5ā³ HDD) |
| Internal 3.5ā³ Bay | 2 (+ 3x 2.5ā³ SSD) |
| Front I/O | 1x USB-C 3.2 Gen2, 1x USB 3.0, Microphone | Headphone combo, Power Button, Reset Button |
| Total Fans (120 mm | 140 mm) | 10x | 6x |
| Fan Support Top (120 mm | 140 mm) | 3x | 2x |
| Fan Support Front (120 mm | 140 mm) | 3x | 3x |
| Fan Support Rear (120 mm | 140 mm) | 1x | 1x |
| Fan Support Midplate (120 mm | 140 mm) | 3x | ā |
| Radiator Support Top | Max. 360 |
| Radiator Support Front | Max. 240 |
| Radiator Support Rear | 120 |
| CPU Cooler Height Clearance | 184 mm | 7.24 in |
| GPU Length Clearance | 415 mm | 16.33 in |
| GPU Width Clearance | 184 mm | 7.24 in |
| Power Supply Length Clearance | 270 mm | 10.62 in |
| Net Weight | 7.55 kg | 16.64 lbs |
| Gross Weight | 9.45 kg | 20.83 lbs |
| Warranty | 5 Years limited |
| Included Fans | 4x M25-140 D-RGB fans |
