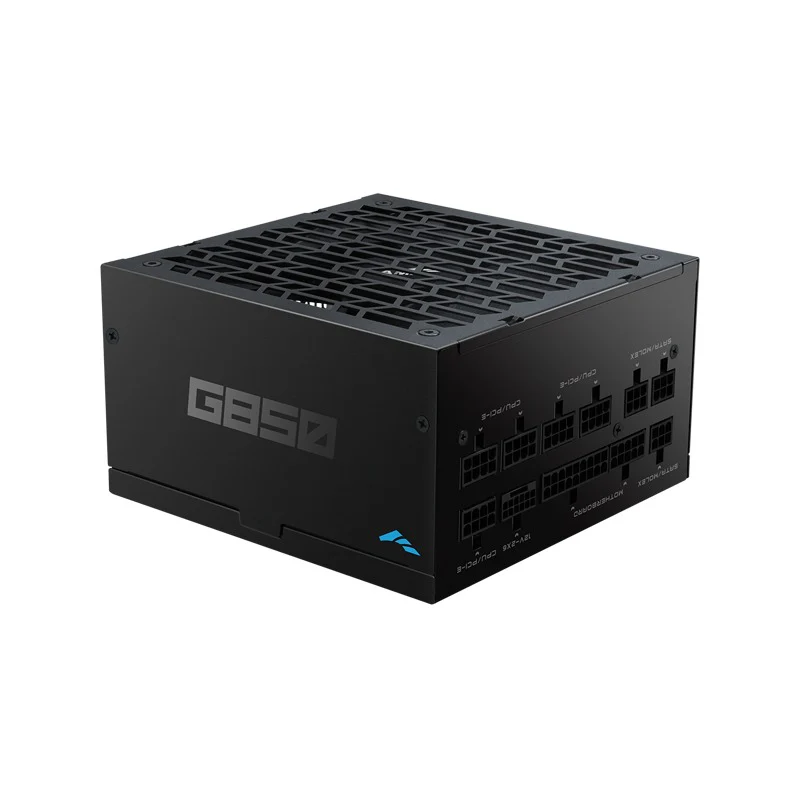

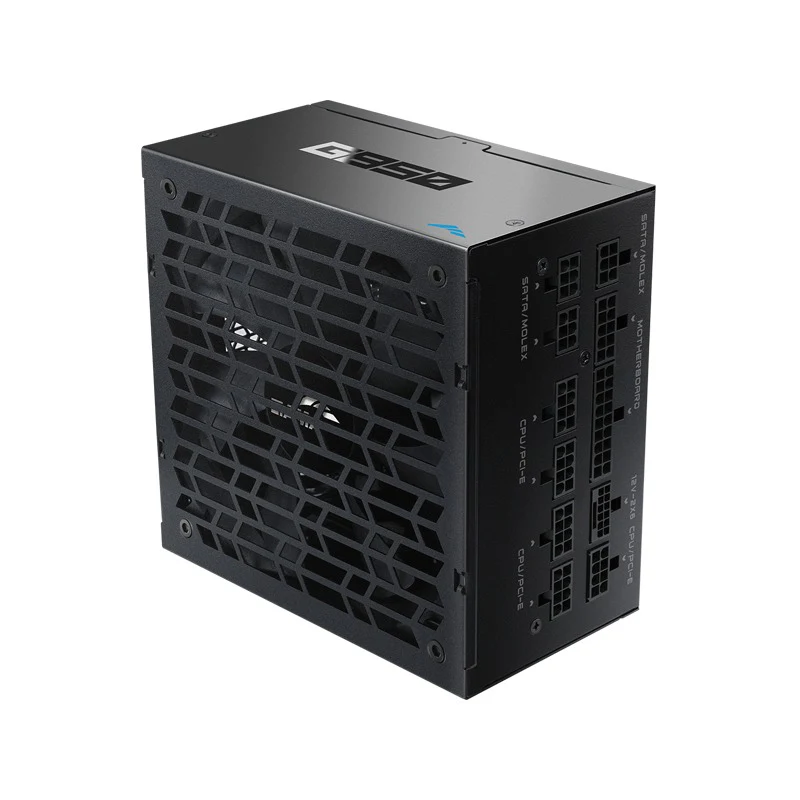

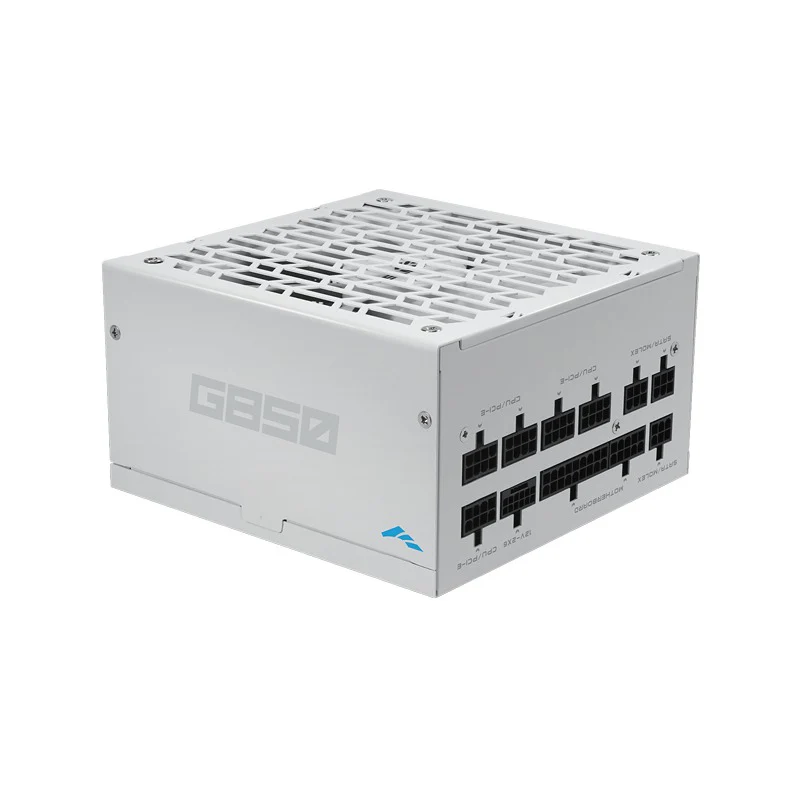

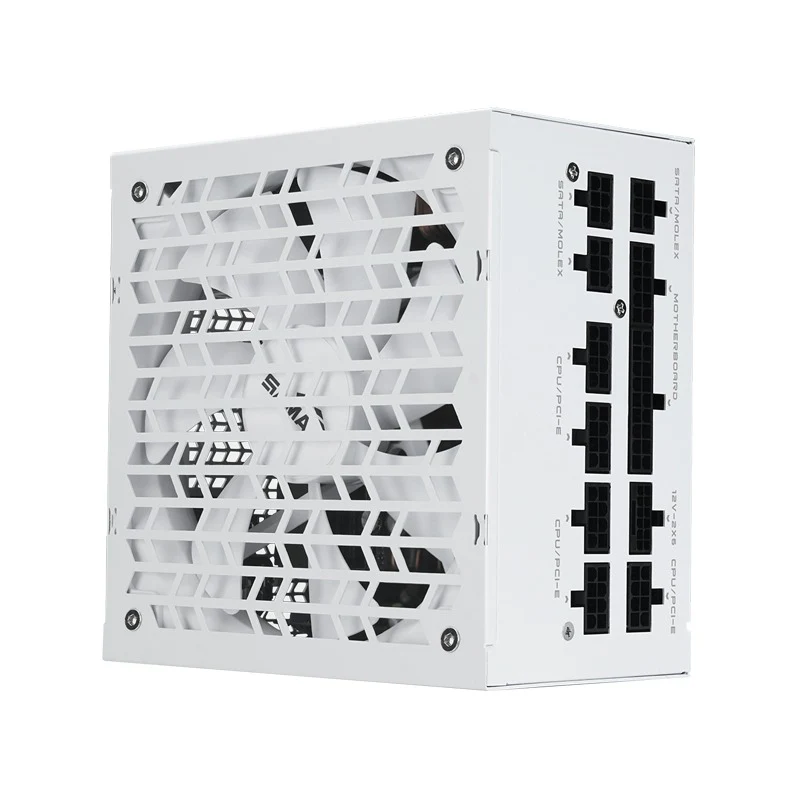

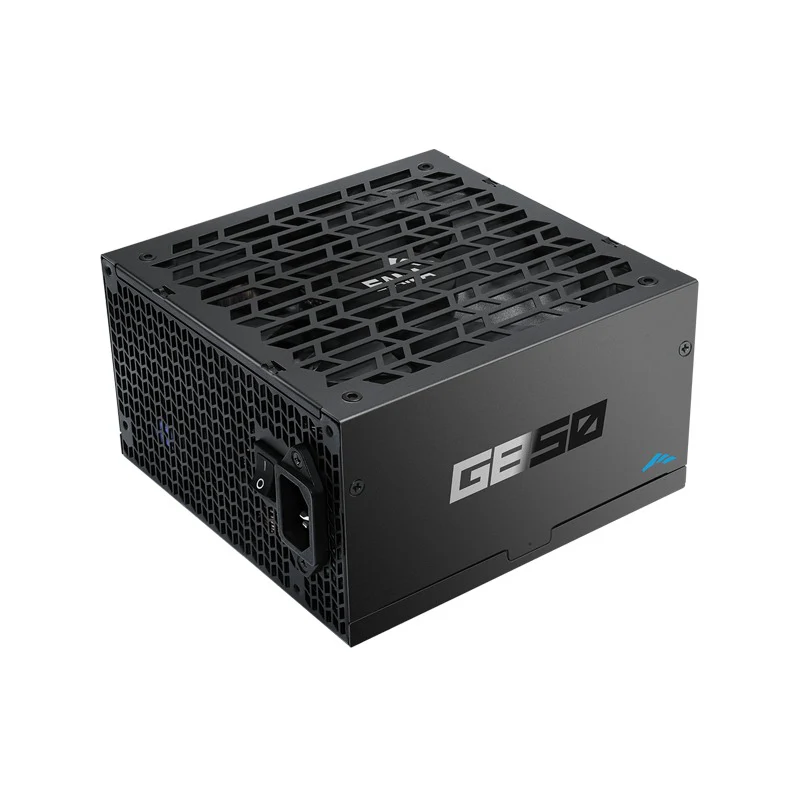

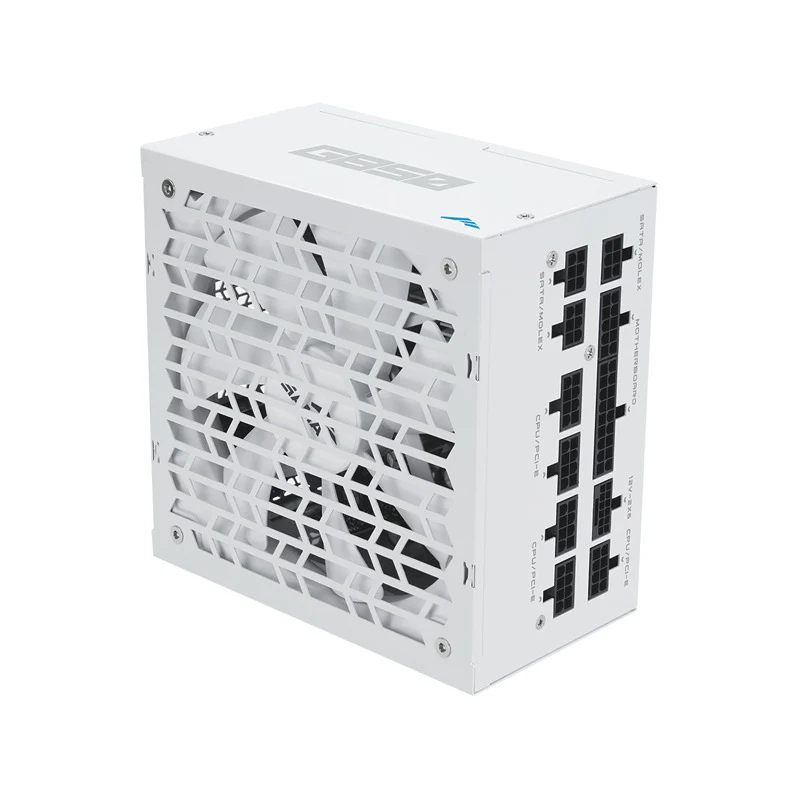

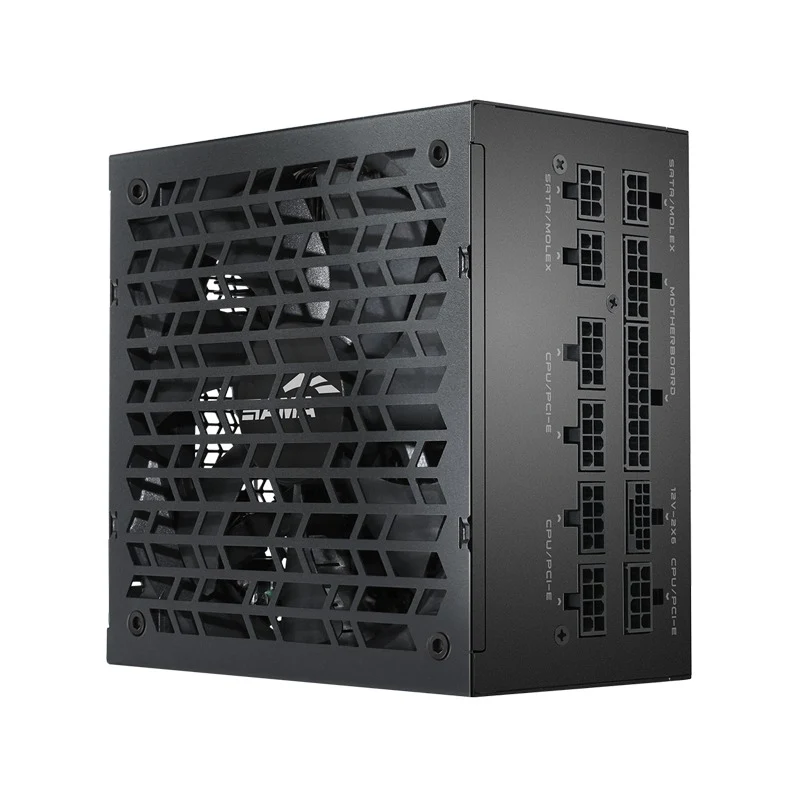

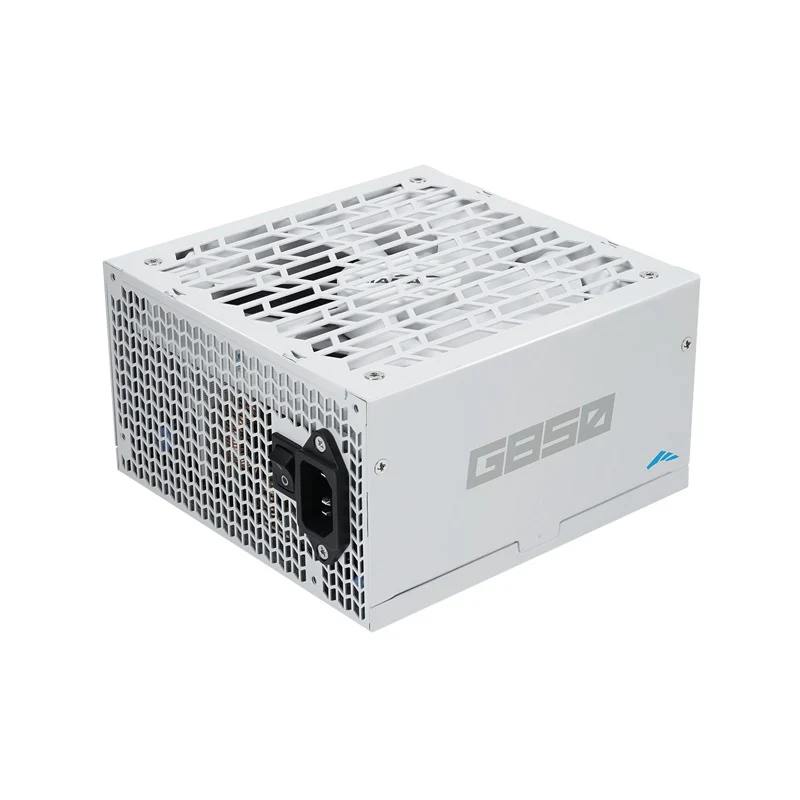

Sama G850 850W 80+ Gold ATX 3.1 PCIe 5.1 Ready Fully Modular Power Supply with Braided Pattern Cables (Black, White)
G850
TheĀ SAMA G series PSU is a fully modular power supply, offering flexible cable management for a cleaner, more organized build. It is 80 PLUS Gold certified for high energy efficiency, complies with the ATX 3.1 standard for stable power delivery, and comes equipped with a native PCIe 5.1 connector and cableāensuring full compatibility with the latest high-performance graphics cards and long-term reliability.
Specifications:
| Product Name | G850 |
| Model Number | HAT-850yzB1G |
| Output Power | 850W |
| Form Factor | ATX 3.1 |
| Modularity | Fully Modular |
| Dimensions | 150 x 150 x 86mm (LĆWĆH) |

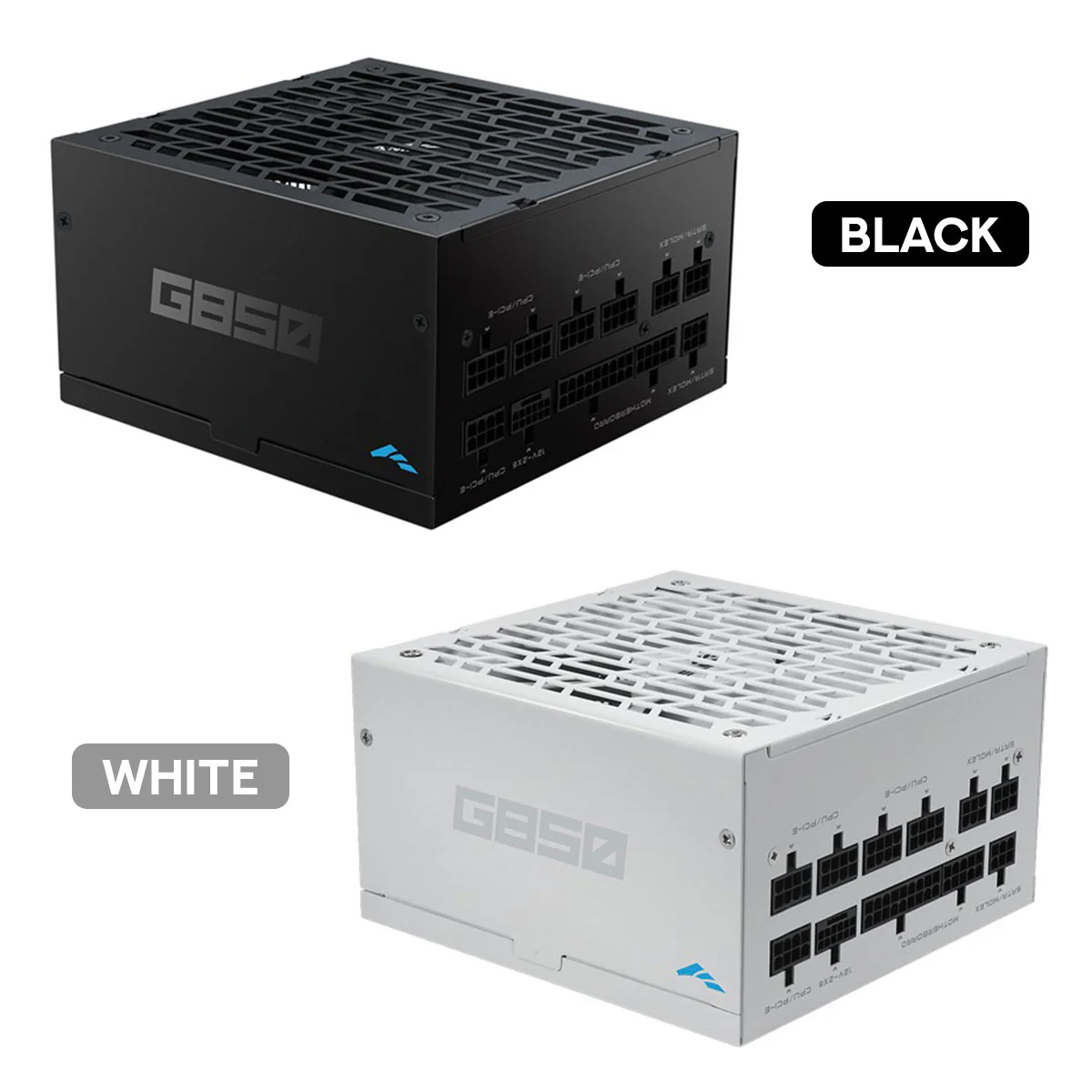

| Color | Black and White |
| 80PLUS Certification | Gold |
| Efficiency | >90% @ Typical Load (50% Load) |
| AC Input | 100-240Vac |
| Fan Size | 140mm |
| Fan Bearing | FDB |
| Capacitors | Main Japanese Capacitor |
| Operating Temperature | 0-50Ā°C |
| Protection | OTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO |
| Safety | CE / TUV / cTUVus / FCC / ICES / UKCA / EAC |
| Environmental Compliance | RoHS / WEEE / ErP 2014 |
| MTBF | 100,000 Hours |

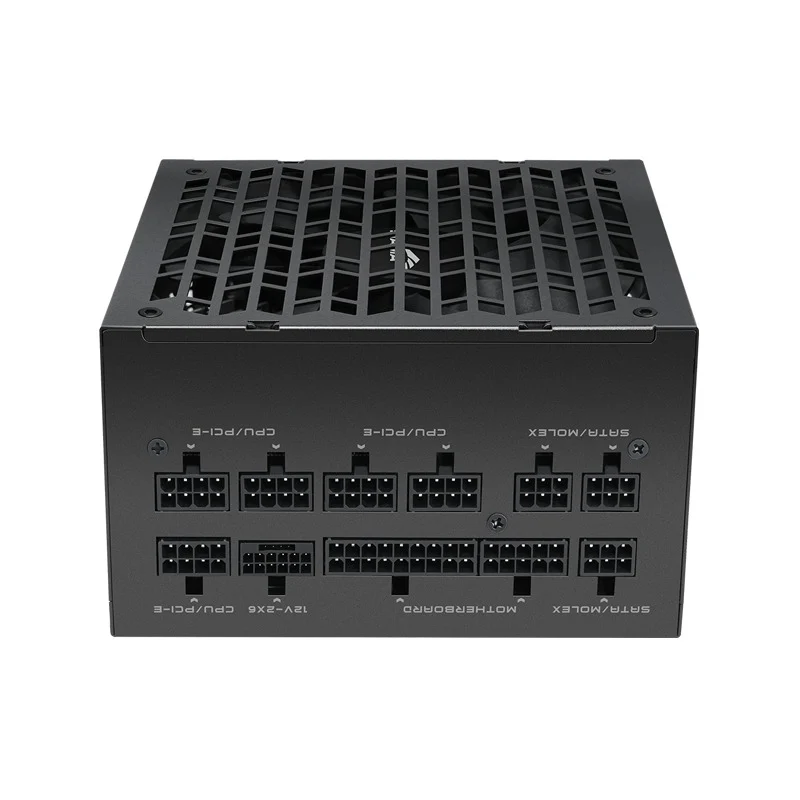

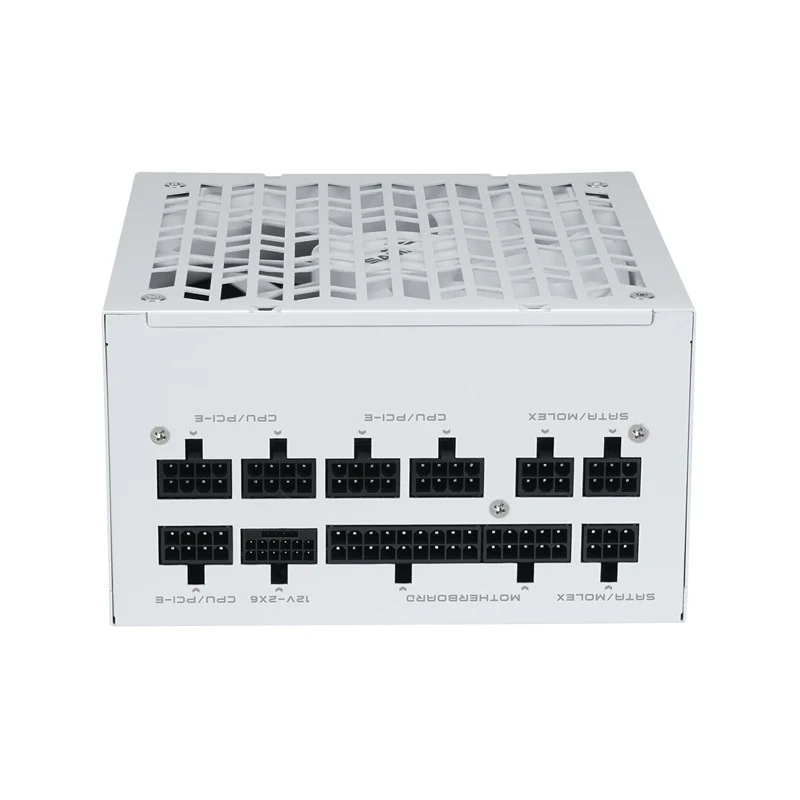

| Connectors |
MB ATX 24 Pin x 1 CPU (4+4) Pin x 2 PCI-E (6+2) Pin x 3 12V-2x6 (12+4) PinĀ xĀ 1 SATA x 6 Molex 4 Pin x 2 |
