Seasonic Focus GX-1000 1000W 80+ Gold Fully Modular Power Supply (SSR-1000FX)
FOCUS GX (ONESEASONIC)
The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.
- ATX 12 V
- Full Modular
- 80 PLUSĀ Gold Certified
- 10 Years Warranty
- Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Ā
FOCUS-GX-1000
| Technical Specifications | ||
|---|---|---|
| 80PLUSĀ® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |

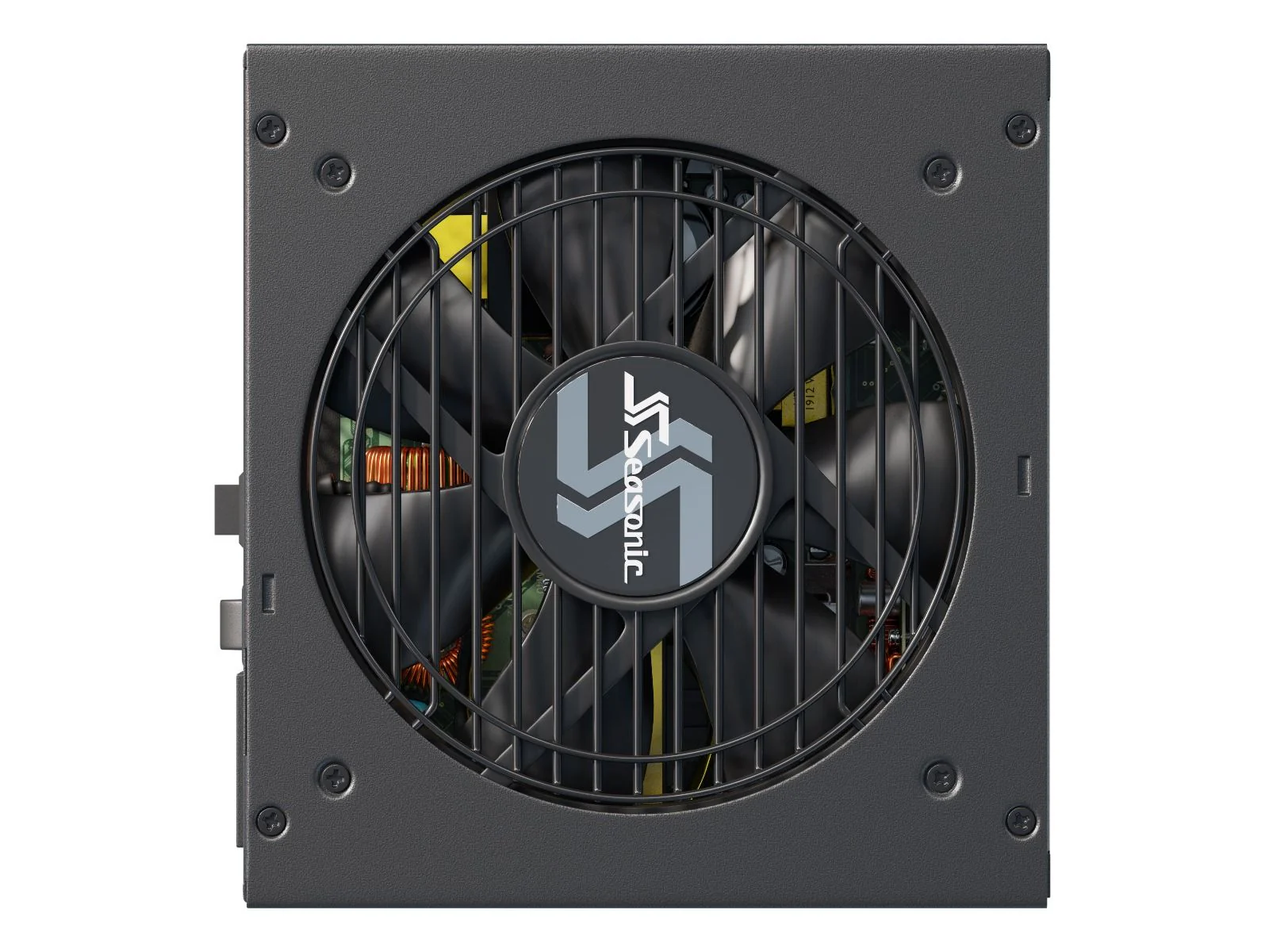

| Fan Information | Fan Size | 120 mm |

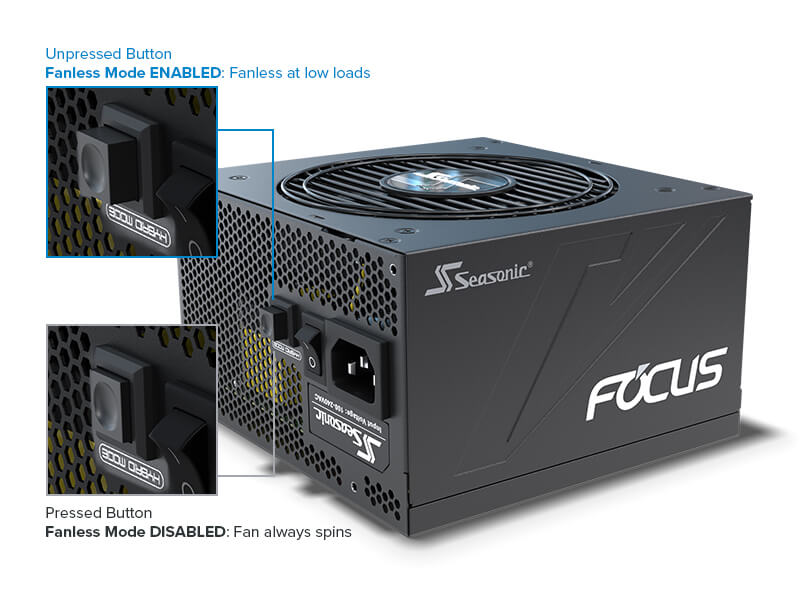

| Fan Control | S3FC - Fanless until 30 % load | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 Ā°C, 15 % - 65 % RH | |

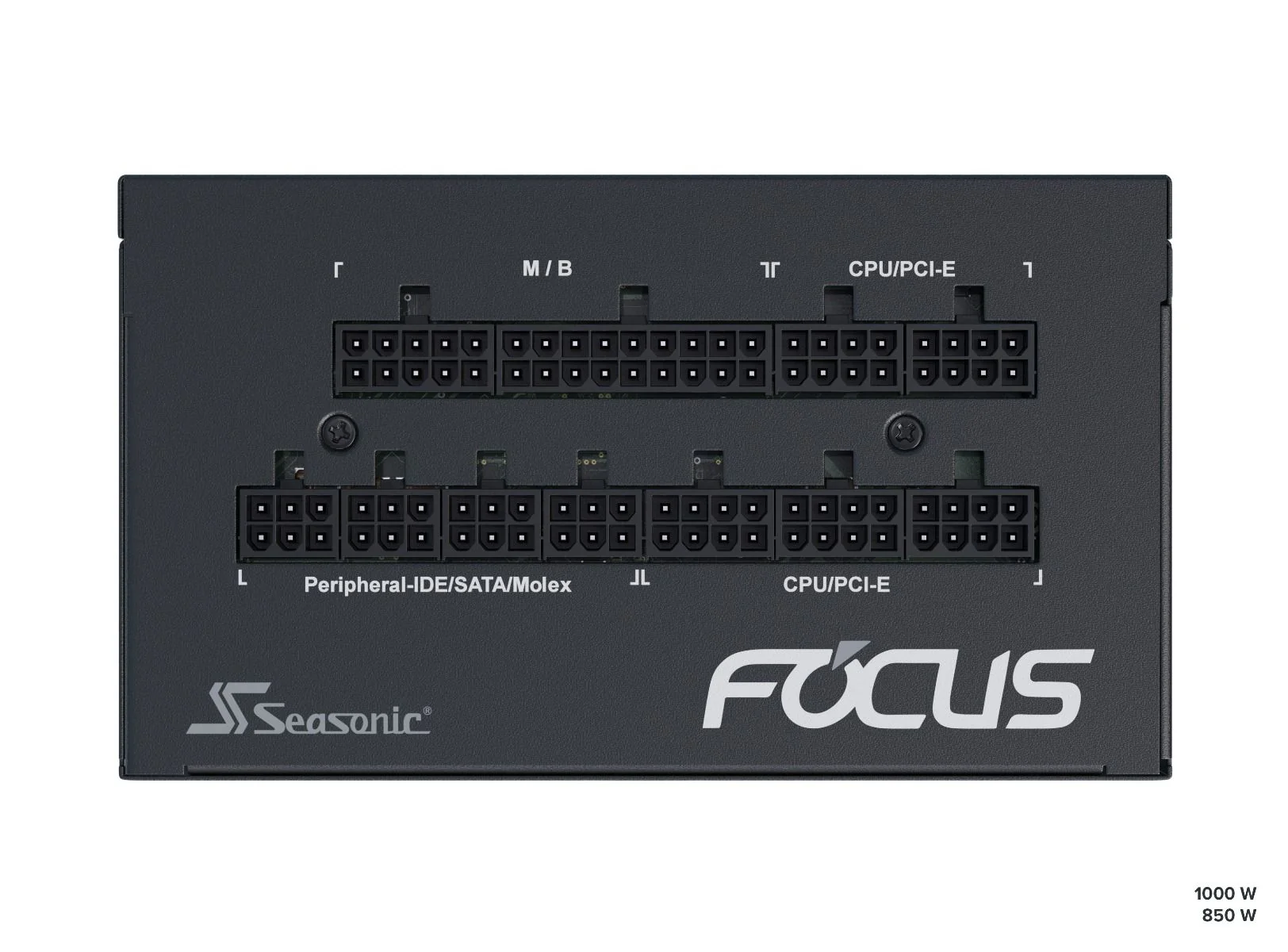

| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 40 Ā°C |
| MTBF @ 25 Ā°C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 13 - 6.5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 83 A | 0.3 A | 3 A | |
| 125 W | 996 W | 3.6 W | 15 W | |||
| Total continuous power | 1000 W | |||||
